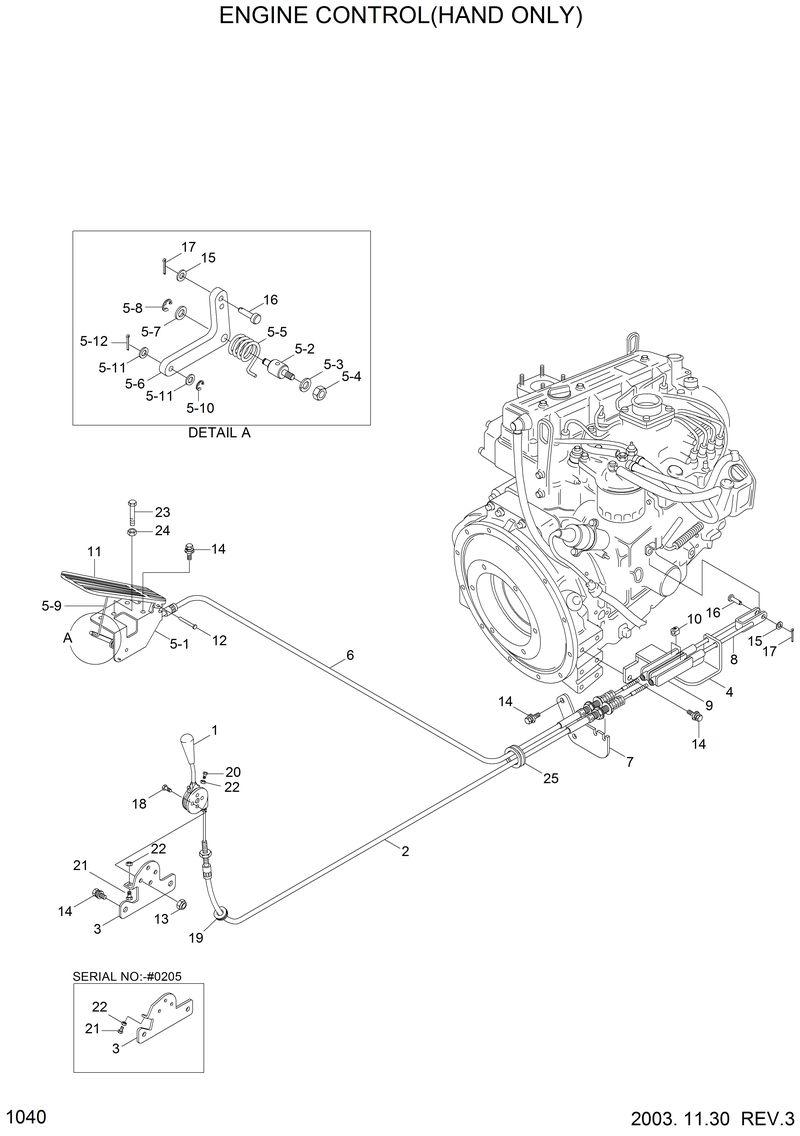

Запчасти Hyundai HSL810 ENGINE CONTROL(HAND ONLY)

11S5-10041

11S5-10041-Bracket-Lever Mtg

S037-102522

S037-102522-Bolt-W/Washer

S037-102522

S037-102522-Bolt-W/Washer

S275-080002

S275-080002-Nut-Self Locking

S141-080202

S141-080202-Screw-Flat Hd

S141-080202

S141-080202-Screw-Flat Hd

12S5-10022

12S5-10022-Cable-Throttle

11N6-63041

11N6-63041-Lever-Emergency

S275-080002

S275-080002-Nut-Self Locking

1

11M6-53140

11M6-53140-Lever-Eng Control

10

11S1-1011

11S1-1011-Collar Set

11

11FA-10090

11FA-10090-Pedal

12

11FA-10100

11FA-10100-Pin

15

S403-062002

S403-062002-Washer-Plain

16

S501-060002

S501-060002-Pin-Self Locking

17

S491-060202

S491-060202-Pin-Clevis

19

S681-100800

S681-100800-Grommet

2

12S5-10021

12S5-10021-Cable-Throttle

20

S015-050152

S015-050152-Bolt-Hex

21

S015-050202

S015-050202-Bolt-Hex

22

S205-051002

S205-051002-Nut-Hex

23

S015-080552

S015-080552-Bolt-Hex

24

S205-081002

S205-081002-Nut-Hex

25

S760-100305

S760-100305-Grommet

3

11S5-10040

11S5-10040-Bracket-Lever Mtg

4

11S5-10031

11S5-10031-Bracket-Cable

5

11S5-10051

11S5-10051-Accel Link Assy

5-1

11S5-10100

11S5-10100-. Support

5-10

KS-B-1337-D5

KS-B-1337-D5-. Retaining Ring(Type E)

5-11

S403-062002

S403-062002-. Washer-Plain

5-12

S461-250202

S461-250202-. Pin-Split

5-2

11FA-10030

11FA-10030-. Pin

5-3

S411-100002

S411-100002-. Washer-Spring

5-4

S205-101002

S205-101002-. Nut-Hex

5-5

11FA-10040

11FA-10040-. Spring-Torsion

5-6

11S5-10110

11S5-10110-. Bell Crank

5-7

S403-102002

S403-102002-. Washer-Plain

5-8

KS-B-1337-D9

KS-B-1337-D9-. Retaining Ring(Type E)

5-9

11S5-10121

11S5-10121-. Rod-Accel

6

11S5-10061

11S5-10061-Cable-Accelerator

7

11S5-10071

11S5-10071-Bracket-Cable

8

11S5-10080

11S5-10080-Clevis-Rod

9

11S5-10090

11S5-10090-Guide-Clevis,Rod
