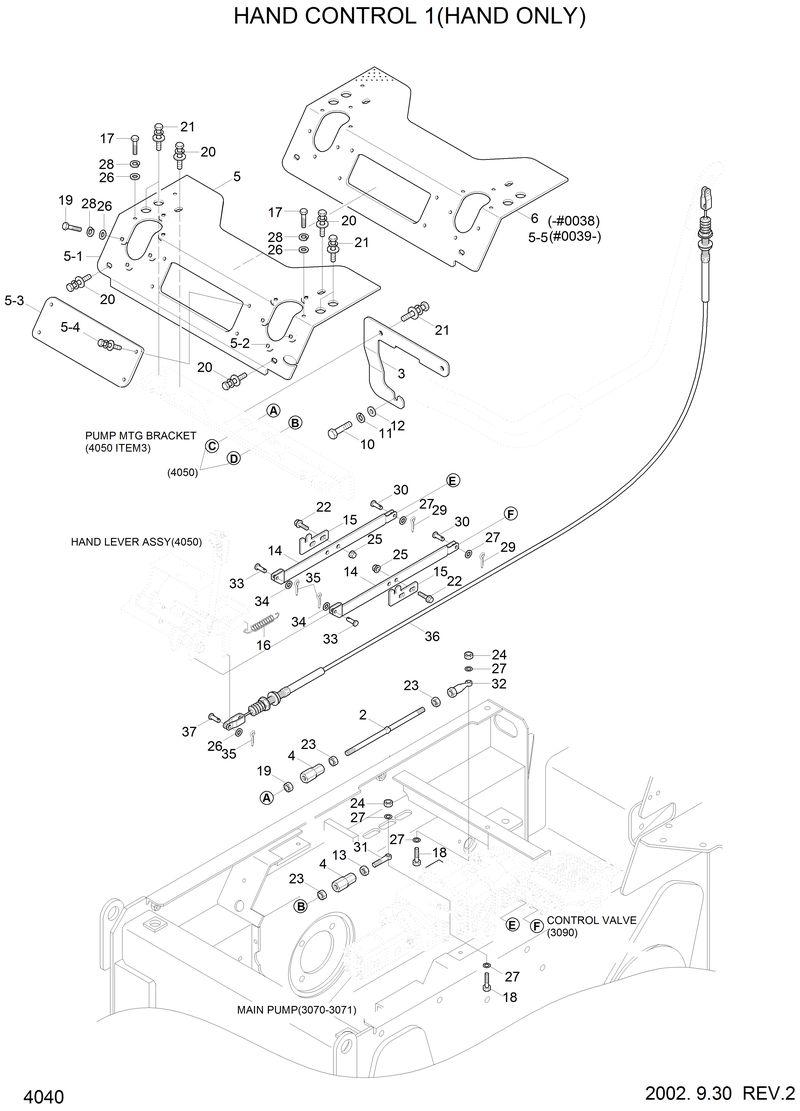

Запчасти Hyundai HSL810 HAND CONTROL 1(HAND ONLY)

81S5-00082

81S5-00082-Cover-Front

S403-082002

S403-082002-Washer-Plain

S403-082002

S403-082002-Washer-Plain

S411-080002

S411-080002-Washer-Spring

81S5-00083

81S5-00083-Cover-Front

S411-080002

S411-080002-Washer-Spring

82S4-00060

82S4-00060-Link-Adjust

81S4-10062

81S4-10062-Cable-Pedal Lock

81S4-10063

81S4-10063-Cable-Pedal Lock

10

81S1-0021

81S1-0021-Bolt-Hex

11

81S1-0022

81S1-0022-Washer-Spring

12

81S1-0023

81S1-0023-Washer-Plain

13

81S1-0051

81S1-0051-Nut-Hex,Left Thread

14

81S5-10030

81S5-10030-Plate-Link

15

81S4-10050

81S4-10050-Plate-Lock

16

81S4-10070

81S4-10070-Spring

17

S175-080356

S175-080356-Bolt-Hex,Rd Hd

18

S017-100352

S017-100352-Bolt-Hex

19

S175-080256

S175-080256-Bolt-Hex,Rd Hd

2

81S5-00070

81S5-00070-Rod-Lh

20

S037-102522

S037-102522-Bolt-W/Washer

21

S037-103022

S037-103022-Bolt-W/Washer

22

S057-100202

S057-100202-Bolt-Hex Flanged

23

S205-101002

S205-101002-Nut-Hex

24

S275-100002

S275-100002-Nut-Self Locking

25

S285-101002

S285-101002-Nut-Flanged

27

S403-102002

S403-102002-Washer-Plain

29

S461-320202

S461-320202-Pin-Split

3

82S5-00110

82S5-00110-Bracket-Pump Mtg

30

S491-100282

S491-100282-Pin-Clevis

31

S921-210000

S921-210000-Rod End-Male

32

S923-110000

S923-110000-Rod End-Female

33

81S1-1027

81S1-1027-Pin-Clevis

34

S403-062002

S403-062002-Washer-Plain

35

S461-200152

S461-200152-Pin-Split

36

81S4-10061

81S4-10061-Cable-Pedal Lock

37

S491-080202

S491-080202-Pin

4

81S4-00060

81S4-00060-Link-Adjust

5

81S5-00081

81S5-00081-Cover-Front

5-1

@

@-. Plate-Cover

5-2

S241-080000

S241-080000-. Nut-Weld

5-3

81S5-00430

81S5-00430-. Plate-Cover

5-4

S035-082022

S035-082022-. Bolt-W/Washer

5-5

81S5-00292

81S5-00292-. Insulation

6

81S5-00291

81S5-00291-Insulation
