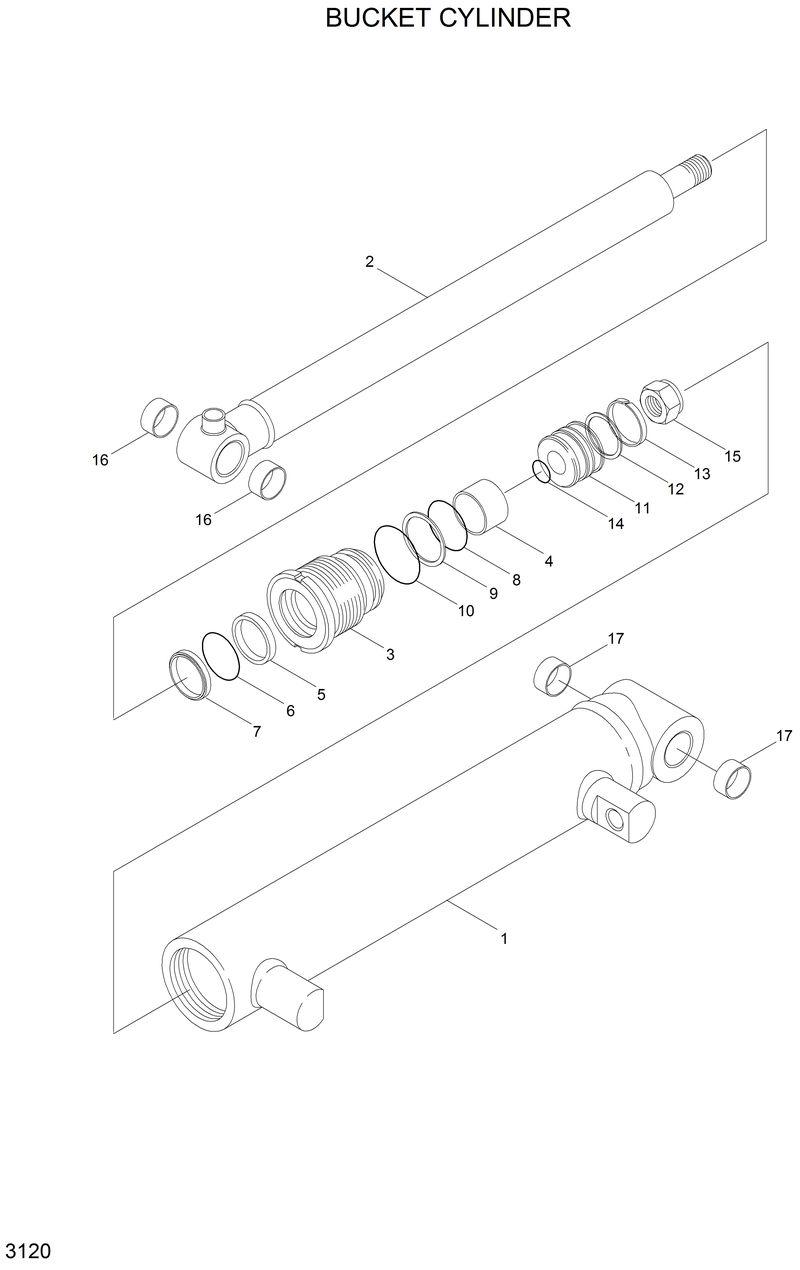

Запчасти Hyundai HSL810 BUCKET CYLINDER

*

31S5-00070

31S5-00070-Bucket Cylinder Assy

1

31Y2-04650

31Y2-04650-. Tube Assy

11

31Y2-04740

31Y2-04740-. Piston

15

31YC-65220

31YC-65220-. Nut-Nylon

16

S731-030025

S731-030025-. Bushing-Du

17

S731-030040

S731-030040-. Bushing

2

31Y2-04700

31Y2-04700-. Rod Assy

3

31Y2-04730

31Y2-04730-. Gland

4

S731-040030

S731-040030-. Bushing-Du

K

31Y2-04750

31Y2-04750-Seal Kit

K10

S632-075004

S632-075004-. O-Ring

K12

Y410-075000

Y410-075000-. Seal-Piston

K13

Y310-075000

Y310-075000-. Ring-Wear

K14

S631-032004

S631-032004-. O-Ring

K5

Y200-040011

Y200-040011-. Seal-Rod

K6

Y180-040020

Y180-040020-. Ring-Back Up

K7

Y120-040011

Y120-040011-. Wiper-Dust

K8

S632-070004

S632-070004-. O-Ring

K9

S642-070003

S642-070003-. Ring-Back Up
