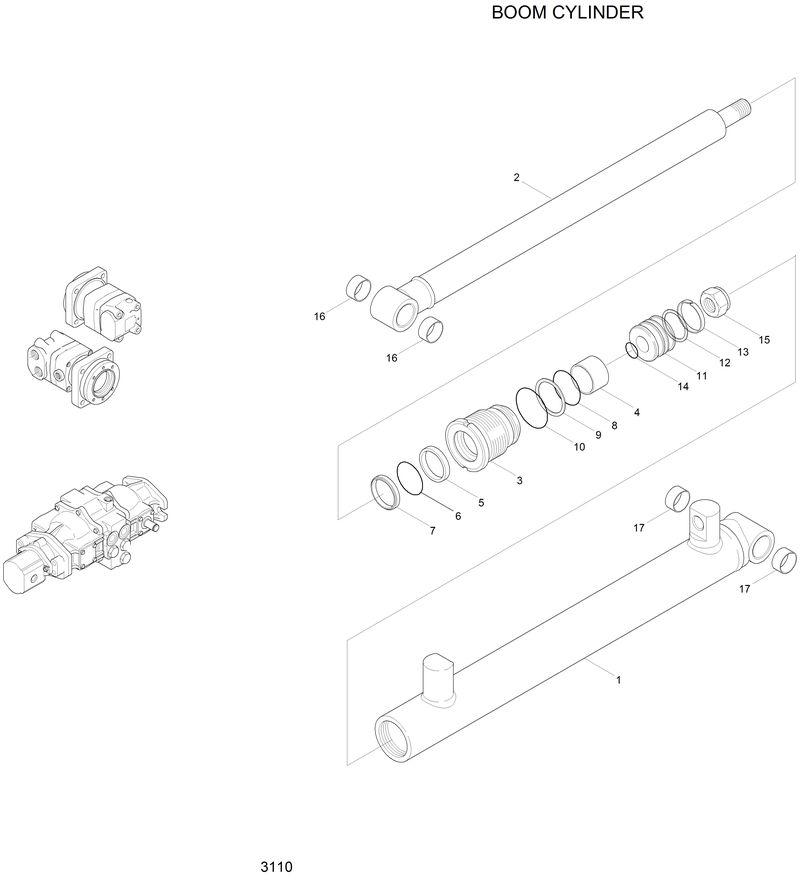

Запчасти Hyundai HSL810 BOOM CYLINDER

*

31S5-00060

31S5-00060-Boom Cylinder Assy

1

31Y2-04530

31Y2-04530-. Tube Assy

11

31Y2-04630

31Y2-04630-. Piston

15

31YC-65220

31YC-65220-. Nut-Nylon

16

S731-030020

S731-030020-. Bushing-Du

17

S731-030030

S731-030030-. Bushing-Du

2

31Y2-04590

31Y2-04590-. Rod Assy

3

31Y2-04620

31Y2-04620-. Gland

4

S731-040030

S731-040030-. Bushing-Du

K

31Y2-04640

31Y2-04640-Seal Kit

K10

S632-065004

S632-065004-. O-Ring

K12

Y410-063000

Y410-063000-. Seal-Piston

K13

Y310-063000

Y310-063000-. Ring-Wear

K14

S631-032004

S631-032004-. O-Ring

K5

Y200-040011

Y200-040011-. Seal-Rod

K6

Y180-040020

Y180-040020-. Ring-Back Up

K7

Y120-040011

Y120-040011-. Wiper-Dust

K8

S631-053004

S631-053004-. O-Ring

K9

S641-053003

S641-053003-. Ring-Back Up
