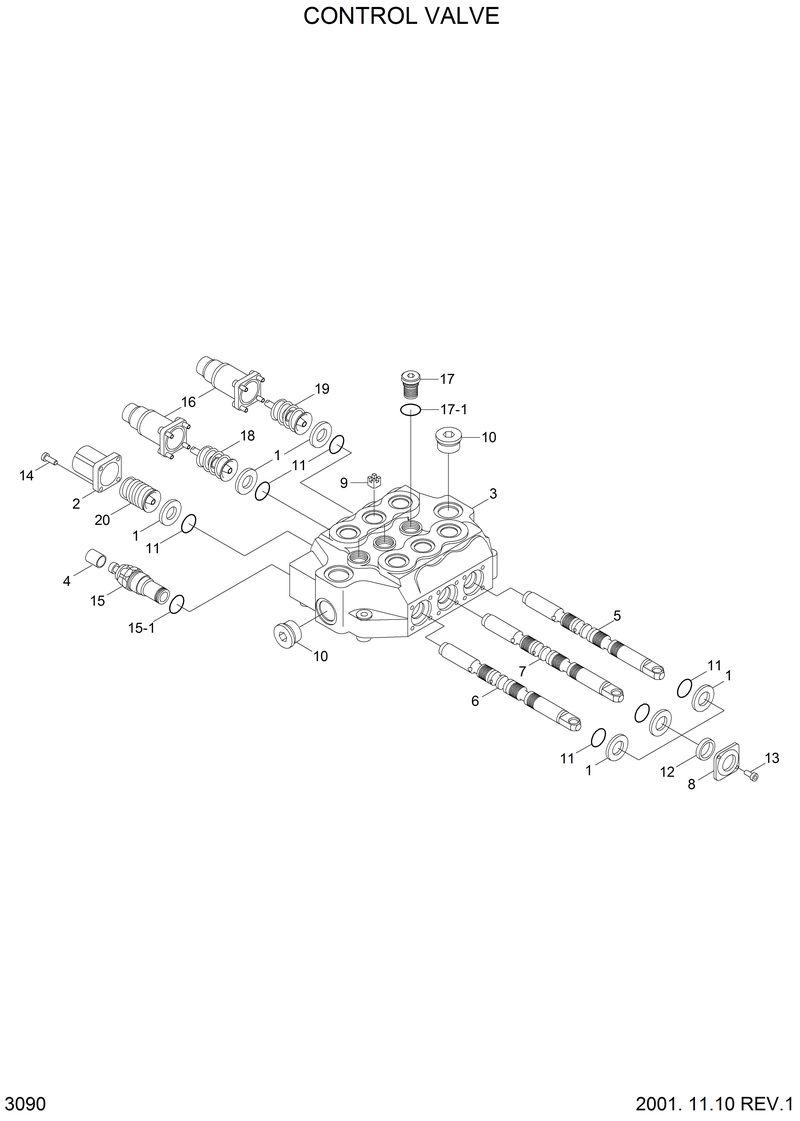

Запчасти Hyundai HSL810 CONTROL VALVE

5KC1918006

5KC1918006-Body Kit(1,3,11,17)

5V08108010

5V08108010-Detent Kit(2,14,20)

5V13108040

5V13108040-Detent Kit(16,18)

5V09108040

5V09108040-Detent Kit(16,19)

*

31S5-00030

31S5-00030-Control Valve Assy

10

3XTAP832200

3XTAP832200-. Plug

15

X134211175

X134211175-. Relief Valve

15-1

4GUA420418

4GUA420418-.. O-Ring

17-1

4GUA114018

4GUA114018-.. O-Ring

4

3COP118200

3COP118200-. Cover-Plastic

5

3CU1310330

3CU1310330-. Spool-Auxiliary

6

3CU1310340

3CU1310340-. Spool-Bucket

7

3CU1340350

3CU1340350-. Spool-Boom

9

3SPE217053

3SPE217053-. Orifice

K

5COP108000

5COP108000-Flange Kit(8,12,13)

K1

3ANE134041

3ANE134041-. Ring

K11

4GUA118025

4GUA118025-. O-Ring

K12

4PAR218035

4PAR218035-. Wiper-Dust

K13

4VIT605012

4VIT605012-. Screw

K14

4VIT605016

4VIT605016-. Screw

K16

XCAP310825

XCAP310825-. Cap-End

K17

XKIT010000

XKIT010000-. Check Valve

K18

XPER118670

XPER118670-. Detent Kit

K19

XPER118742

XPER118742-. Detent Kit

K2

3CAP310505

3CAP310505-. Cap-End

K20

XVO8110100

XVO8110100-. Detant Kit

K8

3FLA131068

3FLA131068-. Flange

NK3

3CO1918006

3CO1918006-. Body
