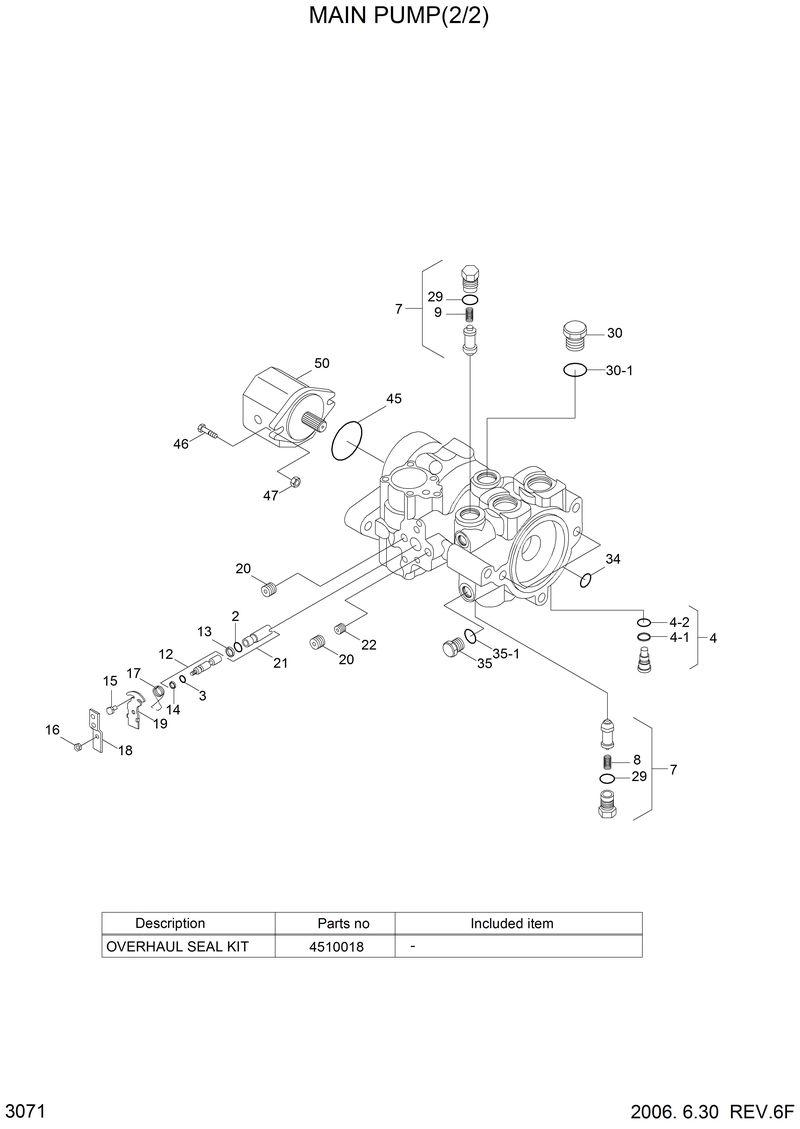

Запчасти Hyundai HSL810 MAIN PUMP(2/2)

@

@-Main Pump Assy

@

@-Main Pump Assy

550137681

550137681-. Gear Pump

9004100-0440

9004100-0440-. O-Ring

12

4461331

4461331-. Spool Assy

13

9006150-0160

9006150-0160-. Back-Up Ring

14

9006150-0120

9006150-0120-. Back-Up Ring

15

9007276-0123

9007276-0123-. Screw

16

9003575-0102

9003575-0102-. Nut

17

4800315

4800315-. Spring-Return

18

4800086-0002

4800086-0002-. Handle-Control V/V

19

4800084

4800084-. Bracket-Return

2

9004100-0160

9004100-0160-. O-Ring

20

9005001-1200

9005001-1200-. Plug

21

4461340

4461340-. Control Sleeve Assy

22

4800155-0007

4800155-0007-. Orifice Plug

29

9004201-7500

9004201-7500-. O-Ring

3

9004100-0120

9004100-0120-. O-Ring

30

9005110-9000

9005110-9000-. Plug

30-1

9004201-7500

9004201-7500-.. O-Ring

34

9004101-1160

9004101-1160-. O-Ring

35

9005100-5600

9005100-5600-. Plug

35-1

9004201-3700

9004201-3700-.. O-Ring

4

4461332

4461332-. Bypass Valve Assy

4-1

9006110-0120

9006110-0120-.. Back-Up Ring

4-2

5000654

5000654-.. O-Ring

45

@

@-. O-Ring

46

9007200-5030

9007200-5030-. Screw

47

9003530-5000

9003530-5000-. Nut

50

550129165

550129165-. Gear Pump(Std)

50

550137814

550137814-. Gear Pump(High Flow)

7

4510004-0280

4510004-0280-. Scr Kit

8

4800780

4800780-. Spring

K

550LG29154002

550LG29154002-.. Seal Kit(Std)

K

550LG36715002

550LG36715002-.. Gear Pump Seal Kit

K

550LG37814002

550LG37814002-.. Seal Kit(High Flow)

K

4510018

4510018-Main Pump Seal Kit
