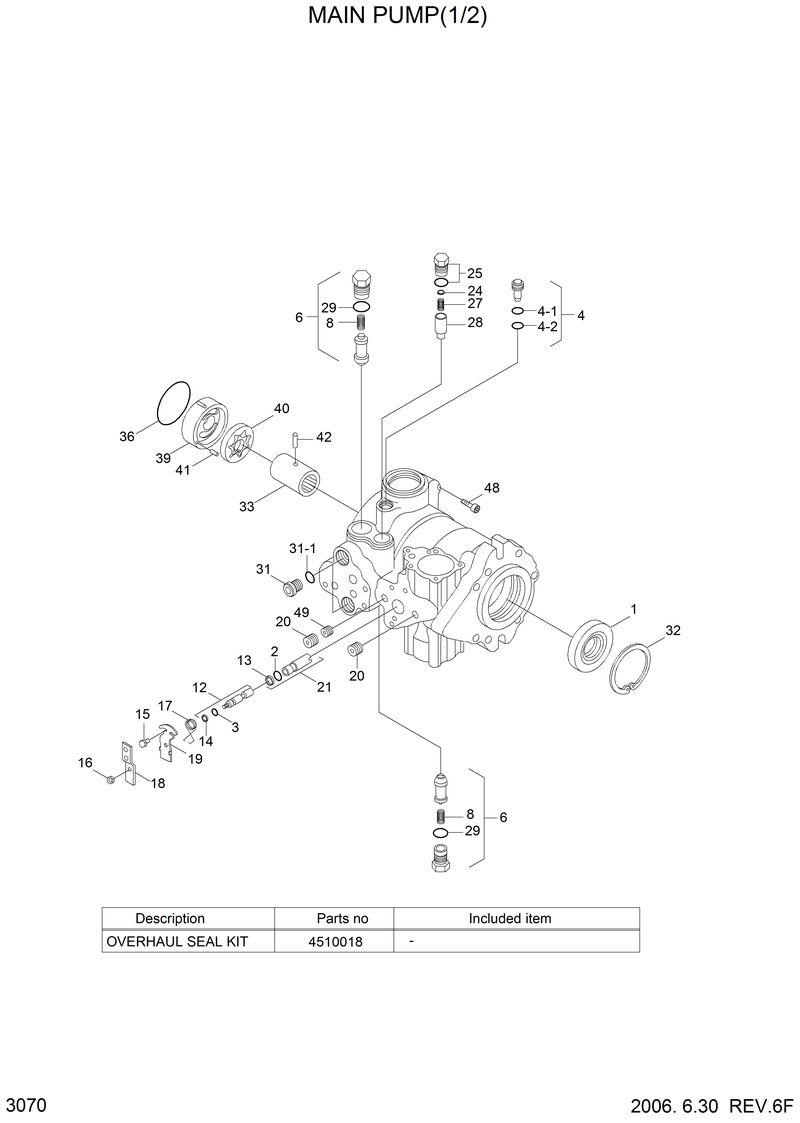

Запчасти Hyundai HSL810 MAIN PUMP(1/2)

31S5-00011

31S5-00011-Main Pump Assy

32S5-00010

32S5-00010-Main Pump Assy

1

9008000-0121

9008000-0121-. Lip Seal

12

4461331

4461331-. Spool Assy

13

9006150-0160

9006150-0160-. Back-Up Ring

14

9006150-0120

9006150-0120-. Back-Up Ring

15

9007276-0123

9007276-0123-. Screw

16

9003575-0102

9003575-0102-. Nut

17

4800315

4800315-. Spring-Return

18

4800086-0002

4800086-0002-. Handle-Control V/V

19

4800084

4800084-. Bracket-Return

2

9004100-0160

9004100-0160-. O-Ring

20

9005001-1200

9005001-1200-. Plug

21

4461340

4461340-. Control Sleeve Assy

24

9510445

9510445-. Shim Kit

25

9005475-0058

9005475-0058-. Plug

27

4800431

4800431-. C/Relief Vlv Spring

28

9800965

9800965-. Charge Relief Valve

29

9004201-7500

9004201-7500-. O-Ring

3

9004100-0120

9004100-0120-. O-Ring

31

9005100-5600

9005100-5600-. Plug

32

9006200-0281

9006200-0281-. Retaining Ring

33

4460258

4460258-. Coupling

36

9004375-0022

9004375-0022-. O-Ring

39

4800159-0002

4800159-0002-. Gerotor Cover

4

4461332

4461332-. Bypass Valve Assy

4-1

9006110-0120

9006110-0120-.. Back-Up Ring

4-2

5000654

5000654-.. O-Ring

40

4800077-0002

4800077-0002-. Rotor Assy

41

9004800-1913

9004800-1913-. Pin

42

9004875-0081

9004875-0081-. Pin

48

9007500-5028

9007500-5028-. Screw

49

4800155-0007

4800155-0007-. Orifice Plug

6

4510004-0280

4510004-0280-. Scr Kit

8

4800780

4800780-. Spring

K

4510018

4510018-Main Pump Seal Kit

N*

31S5-00010

31S5-00010-Hyd Pump Assy
