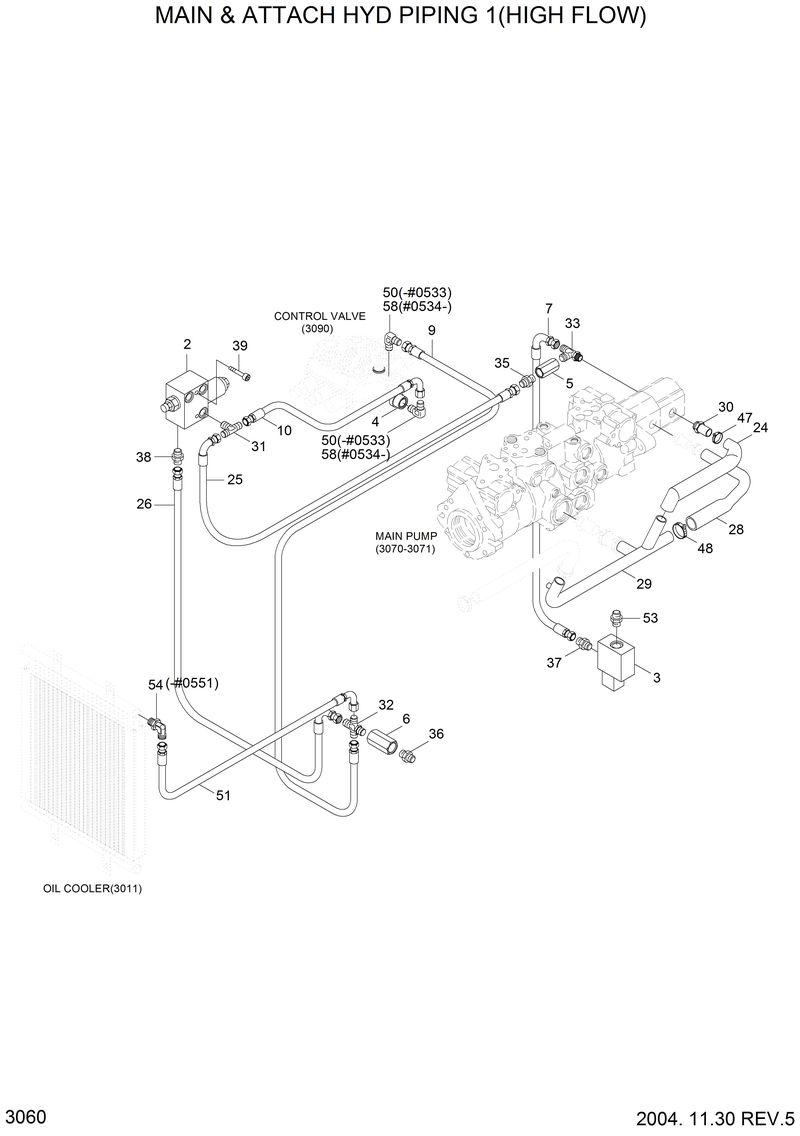

Запчасти Hyundai HSL810 MAIN & ATTACH HYD PIPING 1(HIGH FLOW)

31S7-00670

31S7-00670-Tee

P930-123026

P930-123026-Hose Assy-Orfs 0x90

32S5-30011

32S5-30011-Pipe-Suction

31S7-00690

31S7-00690-Hose Assy

P913-123029

P913-123029-Hose Assy-Orfs 0x0

P930-126029

P930-126029-Hose Assy-Orfs 0x90

31S7-00680

31S7-00680-Tee

X500-120004

X500-120004-Connector-Orfs

31S7-00390

31S7-00390-Connector-Long

P930-123022

P930-123022-Hose Assy-Orfs 0x90

31S7-00700

31S7-00700-Elbow 90-Long

10

31S5-20240

31S5-20240-Hose Ass'Y-3/4"Id

2

31S5-00110

31S5-00110-High Flow Valve

24

31S5-20181

31S5-20181-Hose-Suction(H/F)

25

31S5-20191

31S5-20191-Hose Ass'Y-3/4"Id

26

31S5-20200

31S5-20200-Hose Ass'Y-3/4"Id

28

32S5-20050

32S5-20050-Hose-Suction

29

32S5-30010

32S5-30010-Pipe-Suction

3

31S5-00120

31S5-00120-Solenoid Valve

30

31S5-30020

31S5-30020-Connector-Hose

31

31S5-30180

31S5-30180-Tee-Branch Type

32

31S5-30190

31S5-30190-Tee-Branch Type(Cross)

33

31S5-30200

31S5-30200-Tee-Run Type

35

31S5-30220

31S5-30220-Connector

36

P000-310017

P000-310017-Connector

37

P010-810004

P010-810004-Connector

38

P010-810005

P010-810005-Connector

39

S107-080802

S107-080802-Bolt-Socket

4

31S5-00130

31S5-00130-Power Beyond Sleeve

47

S520-040000

S520-040000-Clamp-Hose

48

S520-055000

S520-055000-Clamp-Hose

5

31S5-00140

31S5-00140-Check Velve

50

P020-810005

P020-810005-Elbow-90

51

31S5-20210

31S5-20210-Hose Ass'Y-3/4"Id

53

31S5-30230

31S5-30230-Connector

54

31S1-31100

31S1-31100-Elbow-90

58

31S7-00460

31S7-00460-Elbow 90

6

31S5-00150

31S5-00150-Check Velve

7

31S5-20230

31S5-20230-Hose Ass'Y-1/2"Id

9

32S5-20130

32S5-20130-Hose Assy
