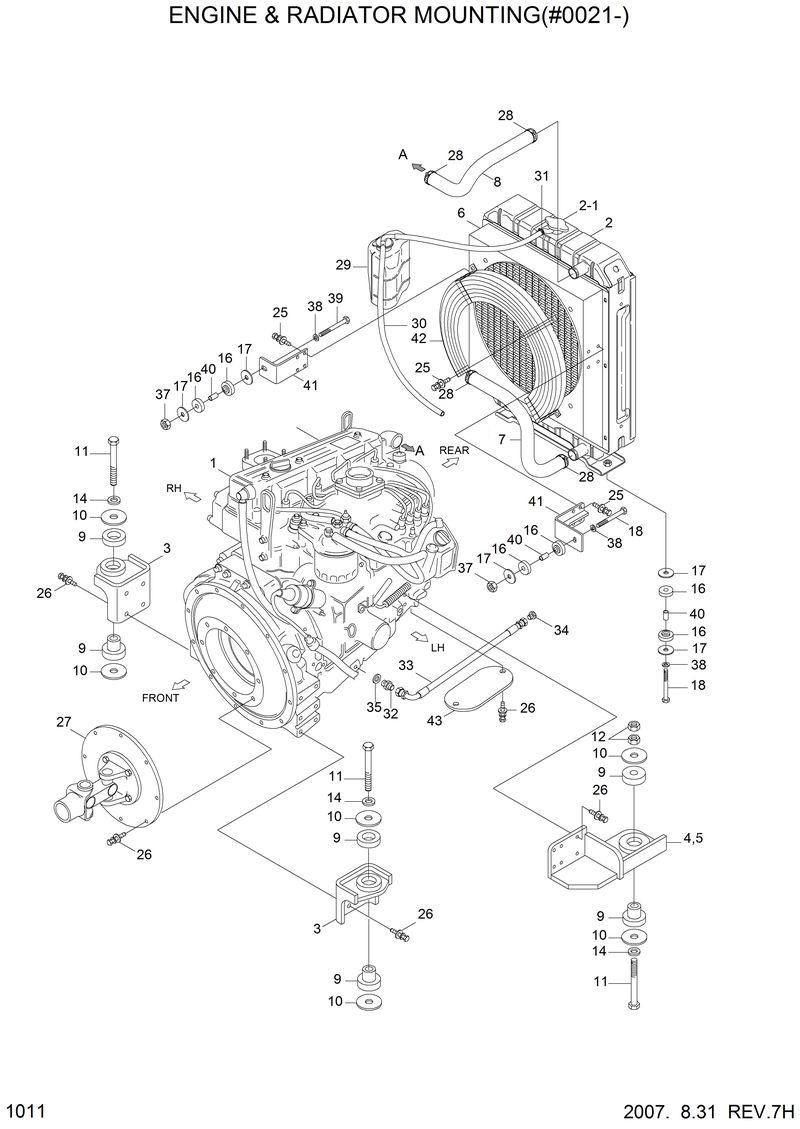

Запчасти Hyundai HSL810 ENGINE & RADIATOR MOUNTING(#0021-)

S037-102522

S037-102522-Bolt-W/Washer

31EM-22100

31EM-22100-Plug

P621-081009

P621-081009-Hose Assy-Thd 0x90

P350-220009

P350-220009-Fitting-Banjo

S037-102522

S037-102522-Bolt-W/Washer

S017-161152

S017-161152-Bolt-Hex

1

11S5-00010

11S5-00010-Engine Assy

10

12S4-00160

12S4-00160-Washer-Special

11

11S2-30320

11S2-30320-Bolt

12

S205-161002

S205-161002-Nut-Hex

14

S441-160002

S441-160002-Washer-Hardened

16

11L7-30042

11L7-30042-Rubber-Cushion

17

11S5-00150

11S5-00150-Washer-Rubber

18

S018-100602

S018-100602-Bolt-Hex

2

11S5-00030

11S5-00030-Radiator Assy

2-1

2AR-0754-91

2AR-0754-91-. Cap-Radiator

25

S035-082022

S035-082022-Bolt-W/Washer

27

11S5-00020

11S5-00020-Drive Shaft Assy

28

S520-040000

S520-040000-Clamp-Hose,Screw Drive

29

11M6-52330

11M6-52330-Tank-Reservoir

3

11S5-00040

11S5-00040-Bracket-Engine,Fr

30

11S4-30140

11S4-30140-Hose-Over Flow

31

S571-140002

S571-140002-Clamp-Hose Wire Type

32

P010-220009

P010-220009-Connector

33

P621-061010

P621-061010-Hose Assy-Thd 0x90

34

11S5-00070

11S5-00070-Plug

35

P391-080000

P391-080000-Washer-Copper

37

S205-101002

S205-101002-Nut-Hex

38

S441-100002

S441-100002-Washer-Hardened

39

S017-100602

S017-100602-Bolt-Hexagon Head

4

11S5-00051

11S5-00051-Bracket-Engine,Lh

40

11S5-00131

11S5-00131-Collar

41

11S5-00140

11S5-00140-Bracket

42

11S5-00160

11S5-00160-Guard-Fan

43

11S5-00610

11S5-00610-Cover

5

11S5-00061

11S5-00061-Bracket-Engine,Rh

6

11S5-30011

11S5-30011-Fan Shroud Wa

7

11S5-30020

11S5-30020-Hose-Rad,Lower

8

11S5-30030

11S5-30030-Hose-Rad,Upper

9

11S4-00030

11S4-00030-Rubber-Mount
