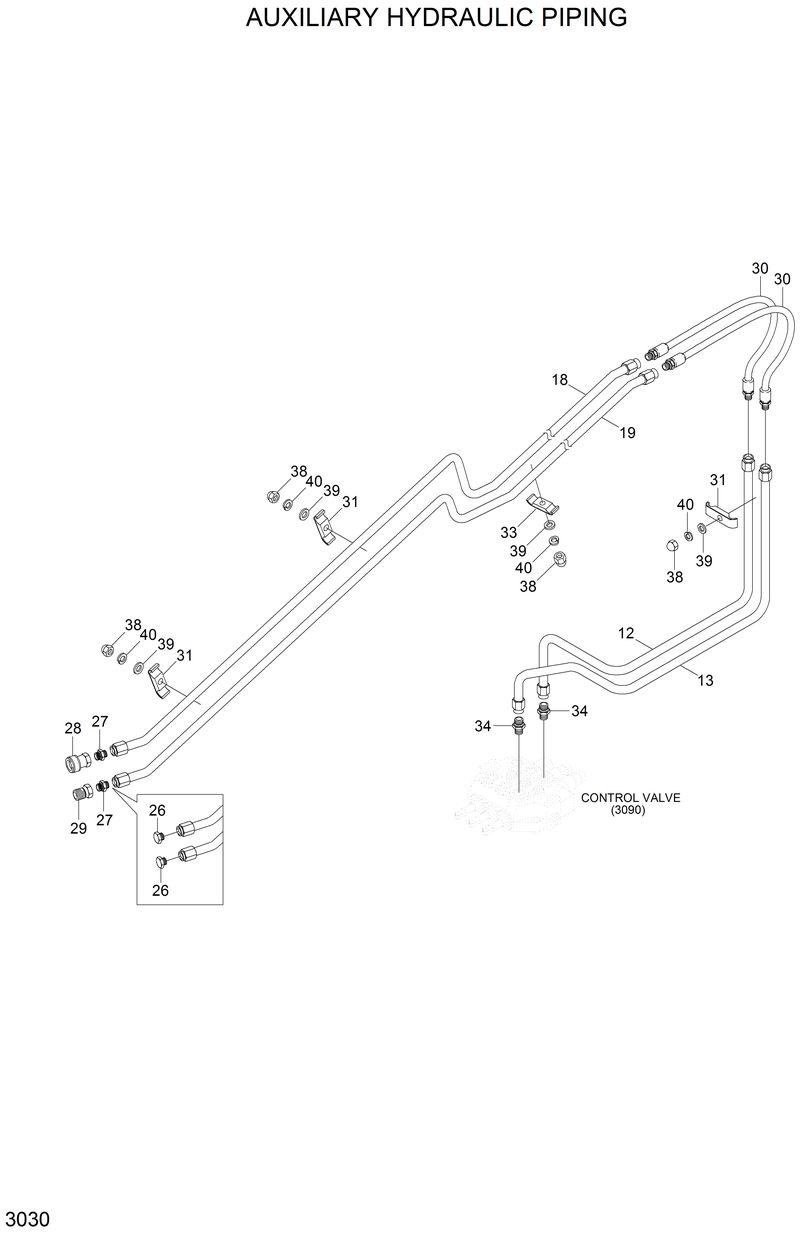

Запчасти Hyundai HSL810 AUXILIARY HYDRAULIC PIPING

12

31S5-10091

31S5-10091-Tube Ass'Y 5/8"Od

13

31S5-10101

31S5-10101-Tube Ass'Y 5/8"Od

18

31S5-10151

31S5-10151-Tube Ass'Y 5/8"Od

19

31S5-10161

31S5-10161-Tube Ass'Y 5/8"Od

26

31S1-1050

31S1-1050-Plug

27

31S1-1091

31S1-1091-Connector

28

31S4-10920

31S4-10920-Coupler-Quick,Female

29

31S4-10930

31S4-10930-Coupler-Quick,Male

30

31S1-1093

31S1-1093-Hose Assy

31

31S4-10851

31S4-10851-Clamp-Tube

33

31S4-10881

31S4-10881-Clamp-Tube

34

P010-810004

P010-810004-Connector

38

S295-080002

S295-080002-Nut-Domed Cap

39

S403-081002

S403-081002-Washer-Plain

40

S411-080002

S411-080002-Washer-Spring
