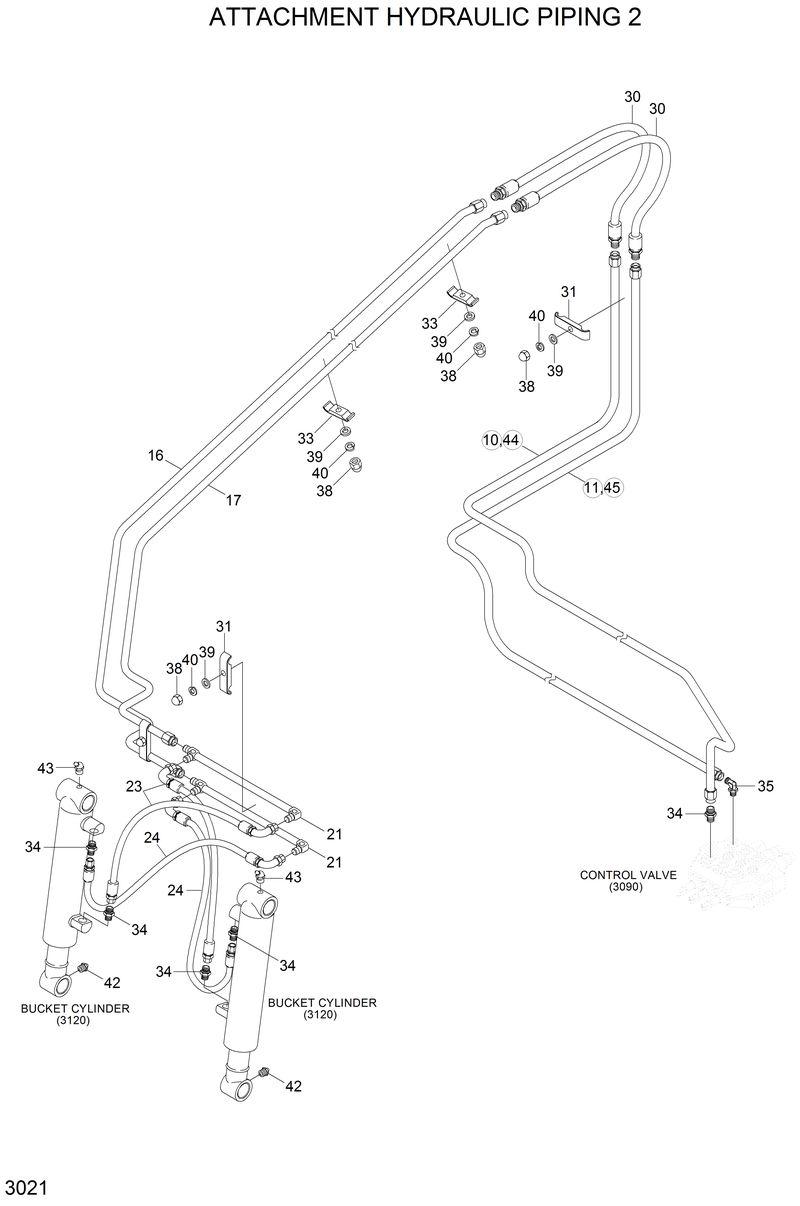

Запчасти Hyundai HSL810 ATTACHMENT HYDRAULIC PIPING 2

10

31S5-10071

31S5-10071-Tube Ass'Y 5/8"Od

11

31S5-10081

31S5-10081-Tube Ass'Y 5/8"Od

16

31S5-10131

31S5-10131-Tube Ass'Y 5/8"Od

17

31S5-10141

31S5-10141-Tube Ass'Y 5/8"Od

21

31S5-10220

31S5-10220-Connector

23

31S5-20150

31S5-20150-Hose Assy-0x90

24

31S5-20160

31S5-20160-Hose Assy-0x45

30

31S1-1093

31S1-1093-Hose Assy

31

31S4-10851

31S4-10851-Clamp-Tube

33

31S4-10881

31S4-10881-Clamp-Tube

34

P010-810004

P010-810004-Connector

35

P020-810004

P020-810004-Elbow-90

38

S295-080002

S295-080002-Nut-Domed Cap

39

S403-081002

S403-081002-Washer-Plain

40

S411-080002

S411-080002-Washer-Spring

42

S651-810002

S651-810002-Nipple-Grease

43

S652-810002

S652-810002-Nipple-Grease

44

32S5-10070

32S5-10070-Tube Assy

45

32S5-10080

32S5-10080-Tube Assy
