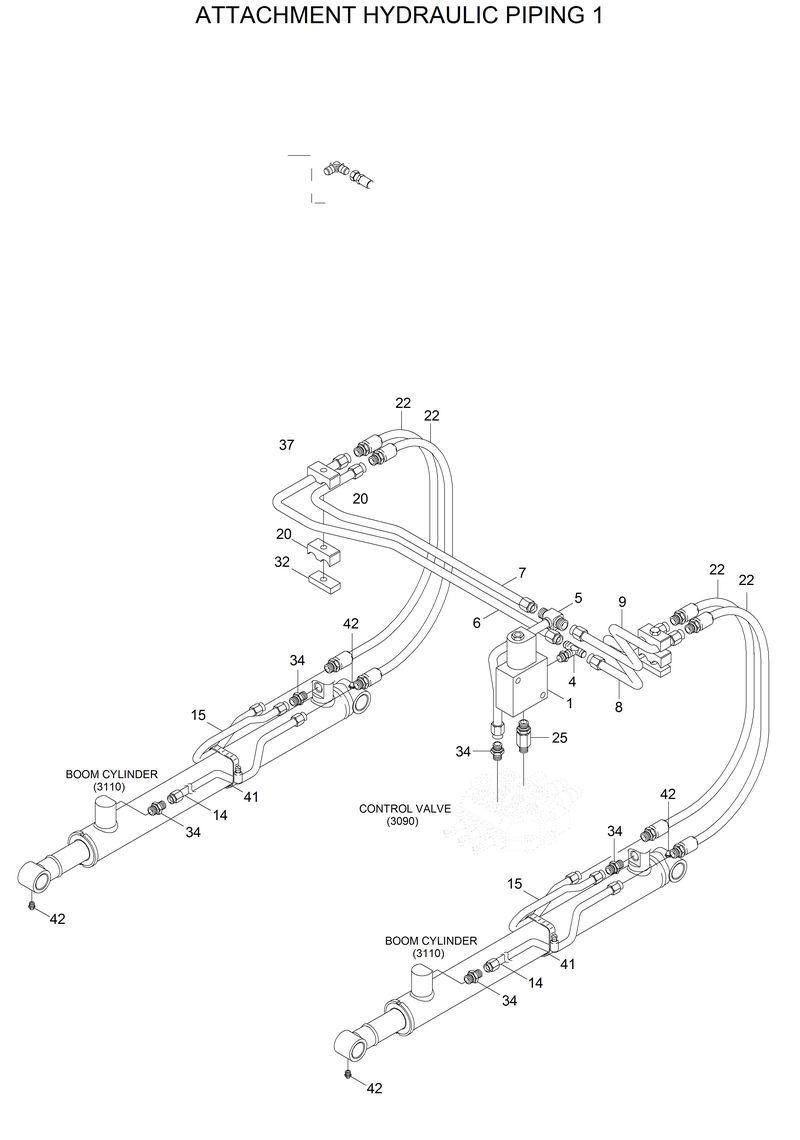

Запчасти Hyundai HSL810 ATTACHMENT HYDRAULIC PIPING 1

31S5-00270

31S5-00270-Solenoid Valve

1

31S5-00050

31S5-00050-Solenoid Valve

14

31S5-10110

31S5-10110-Tube Assy 5/8"Od

15

31S5-10120

31S5-10120-Tube Assy 5/8"Od

20

31S5-10170

31S5-10170-Clamp-Tube

22

31S5-20081

31S5-20081-Hose Assy-1/2"Id

25

31S5-30080

31S5-30080-Connector-Long

32

31S4-10861

31S4-10861-Block-Tube

34

P010-810004

P010-810004-Connector

36

S017-100902

S017-100902-Bolt-Hex

37

S411-100002

S411-100002-Washer-Spring

4

31S5-30160

31S5-30160-Tee-Long

41

S520-095000

S520-095000-Clamp-Hose

42

S651-810002

S651-810002-Nipple-Grease

51

32S5-30160

32S5-30160-Tee-Long(Cross)

52

31E5-50325

31E5-50325-Switch-Pressure

52-1

31E5-50320

31E5-50320-. Switch-Pressure

52-2

21E5-50230

21E5-50230-. Harness-Ext

53

31E5-50350

31E5-50350-Elbow-90

54

P610-047008

P610-047008-Hose Assy-Thd 0x45

55

S015-050452

S015-050452-Bolt-Hex

56

S205-051002

S205-051002-Nut-Hex

57

S403-051002

S403-051002-Washer-Plain

58

S411-050002

S411-050002-Washer-Spring

6

31S5-10031

31S5-10031-Tube Assy 5/8"Od

7

31S5-10041

31S5-10041-Tube Assy 5/8"Od

8

31S5-10051

31S5-10051-Tube Assy 5/8"Od

9

31S5-10061

31S5-10061-Tube Assy 5/8"Od

N5

31S5-10021

31S5-10021-Tube Assy 5/8"Od
