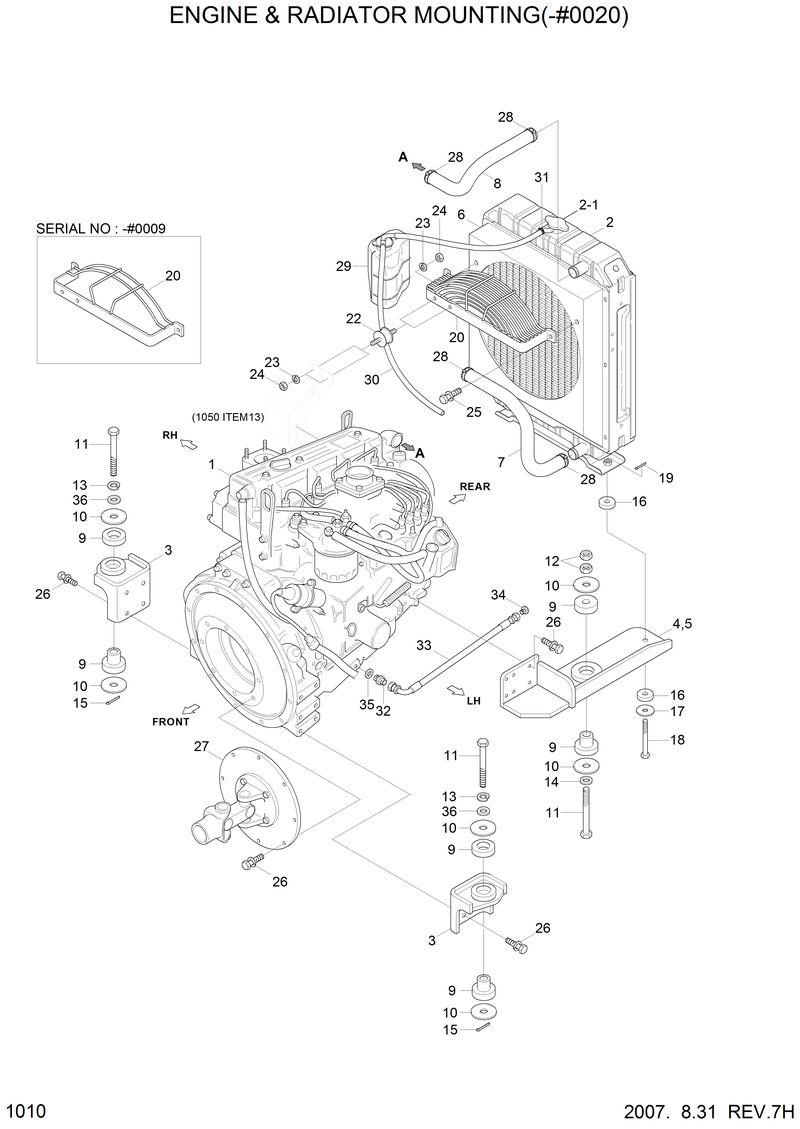

Запчасти Hyundai HSL810 ENGINE & RADIATOR MOUNTING(-#0020)

11S5-30042

11S5-30042-Bracket Wa

1

11S5-00010

11S5-00010-Engine Assy

10

12S4-00160

12S4-00160-Washer-Special

11

11S2-30320

11S2-30320-Bolt

12

S205-161002

S205-161002-Nut-Hex

13

S411-160002

S411-160002-Washer-Spring

14

S441-160002

S441-160002-Washer-Hardened

15

S501-160002

S501-160002-Pin-Self Locking

16

905733100

905733100-Cushion Rubber

17

900063101

900063101-Washer

18

11S2-30282

11S2-30282-Bolt-Hex

19

S501-100002

S501-100002-Pin-Self Locking

2

11S5-00030

11S5-00030-Radiator Assy

2-1

2AR-0754-91

2AR-0754-91-. Cap-Radiator

20

11S5-30041

11S5-30041-Bracket Wa

22

11S4-30050

11S4-30050-Rubber-Mount

23

S411-080002

S411-080002-Washer-Spring

24

S205-081002

S205-081002-Nut-Hex

25

S033-081526

S033-081526-Bolt-W/Washer

26

S035-102526

S035-102526-Bolt-W/Washer

27

11S5-00020

11S5-00020-Drive Shaft Assy

28

S520-040000

S520-040000-Clamp-Hose,Screw Drive

29

11M6-52330

11M6-52330-Tank-Reservoir

3

11S5-00040

11S5-00040-Bracket-Engine,Fr

30

11S4-30120

11S4-30120-Hose-Over Flow

31

S571-140002

S571-140002-Clamp-Hose Wire Type

32

P010-220009

P010-220009-Connector

33

P621-061010

P621-061010-Hose Assy-Thd 0x90

34

11S5-00070

11S5-00070-Plug

35

P391-080000

P391-080000-Washer-Copper

36

S403-162002

S403-162002-Washer-Plain

4

11S5-00050

11S5-00050-Bracket-Engine,Lh,Rr

5

11S5-00060

11S5-00060-Bracket-Engine,Rh,Rr

6

11S5-30010

11S5-30010-Fan Shroud Assy

7

11S5-30020

11S5-30020-Hose-Rad,Lower

8

11S5-30030

11S5-30030-Hose-Rad,Upper

9

11S4-00030

11S4-00030-Rubber-Mount
