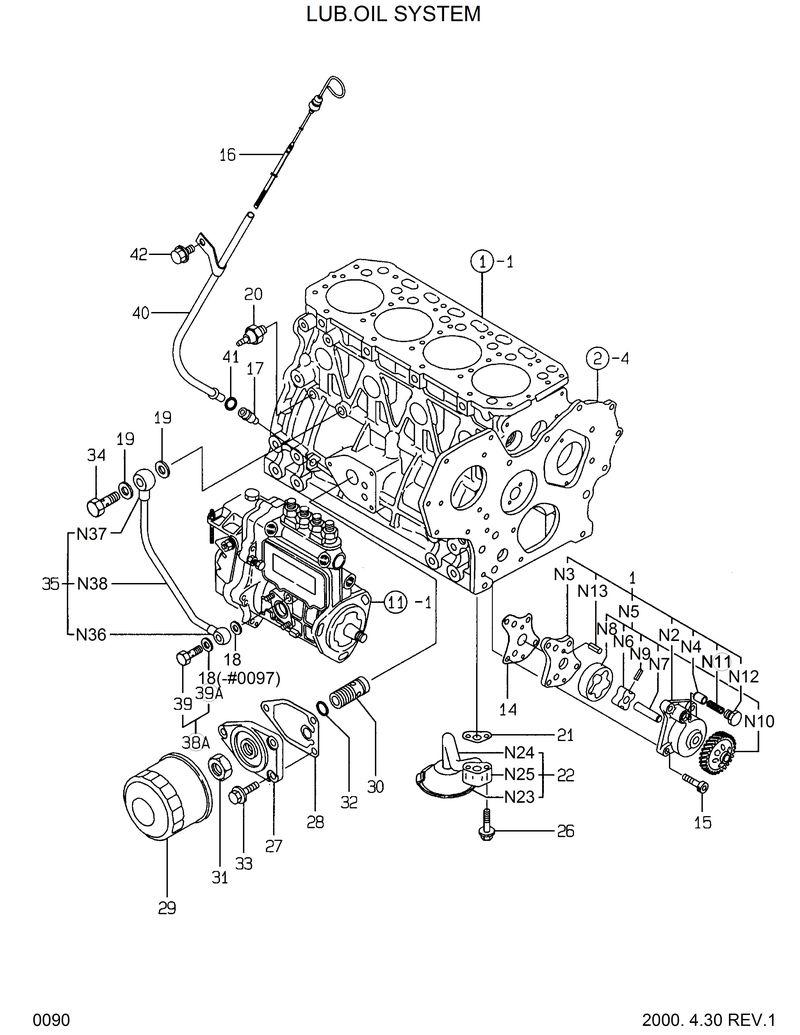

Запчасти Hyundai HSL610 LUB OIL SYSTEM
№
Артикул
Название
Примечание
Количество
1
129407-32000
129407-32000-. Pump Assy-Lub.Oil
14
129150-32020
129150-32020-. Gasket- L. O. Pump
15
26450-060252
26450-060252-. Bolt M 6x 25
16
129114-34820
129114-34820-. Dipstick
17
119260-34810
119260-34810-. Guide-Dipstick
18-1
22190-080002
22190-080002-. Seal Washer
18-1
22190-080002
22190-080002-. Seal Washer
19
23414-100000
23414-100000-. Gasket-Round
20
124160-39450
124160-39450-. Switch-Oil Pressure
21
129150-35041
129150-35041-. Gasket-(Non-Asb)
22
129150-35091
129150-35091-. Pipe Assy, Oil Inlet
26
26106-080352
26106-080352-. Bolt M 8x 35 Plated
27
129150-35101
129150-35101-. Bracket-Strainer
28
129150-35111
129150-35111-. Gasket-(Non-Asb)
30
129001-35300
129001-35300-. Bolt-Lub.0.Strainer
31
129150-35350
129150-35350-. Nut
32
24311-000160
24311-000160-. O-Ring
33
26106-080202
26106-080202-. Bolt M 8x 20 Plated
34
124160-39140
124160-39140-. Bolt M 8x 20 Plated
35
129550-39450
129550-39450-. Pipe Assy-Lub.Oil
38A
124550-59830
124550-59830-. Bolt W/Seal Washer
39
124550-59820
124550-59820-.. Bolt 8-Pipe Joint
39A
22190-080002
22190-080002-.. Seal Washer
40
129612-34820
129612-34820-. Guide-Dipstick
41
24311-240100
24311-240100-. O-Ring
42
26106-080162
26106-080162-. Bolt M 8x 16 Plated
N
@
@-Not Individually Supplied
N10
129150-32201
129150-32201-... Gear-Lube Oil Pump
N11
129001-32320
129001-32320-.. Spring
N12
129001-32330
129001-32330-.. Plug
N13
22351-040008
22351-040008-.. Spring Pin 4x 8
N2
129407-32010
129407-32010-.. Body
N23
129150-35010
129150-35010-.. Inlet
N24
129150-35020
129150-35020-.. Pipe
N25
129150-35030
129150-35030-.. Flange
N3
119810-32080
119810-32080-.. Cover-L.O.Pump
N36
129150-39150
129150-39150-.. Joint 8
N37
129150-39180
129150-39180-.. Joint 10
N38
129550-39410
129550-39410-.. Pipe
N4
129001-32130
129001-32130-.. Valve-Relief
N5
129001-32151
129001-32151-.. Rotor
N6
129001-32100
129001-32100-... Rotor-Inner
N7
129001-32111
129001-32111-... Shaft-Inner Rotor
N8
129001-32120
129001-32120-... Rotor-Outer
N9
121850-32170
121850-32170-... Pin
Выбрано товаров: 46
