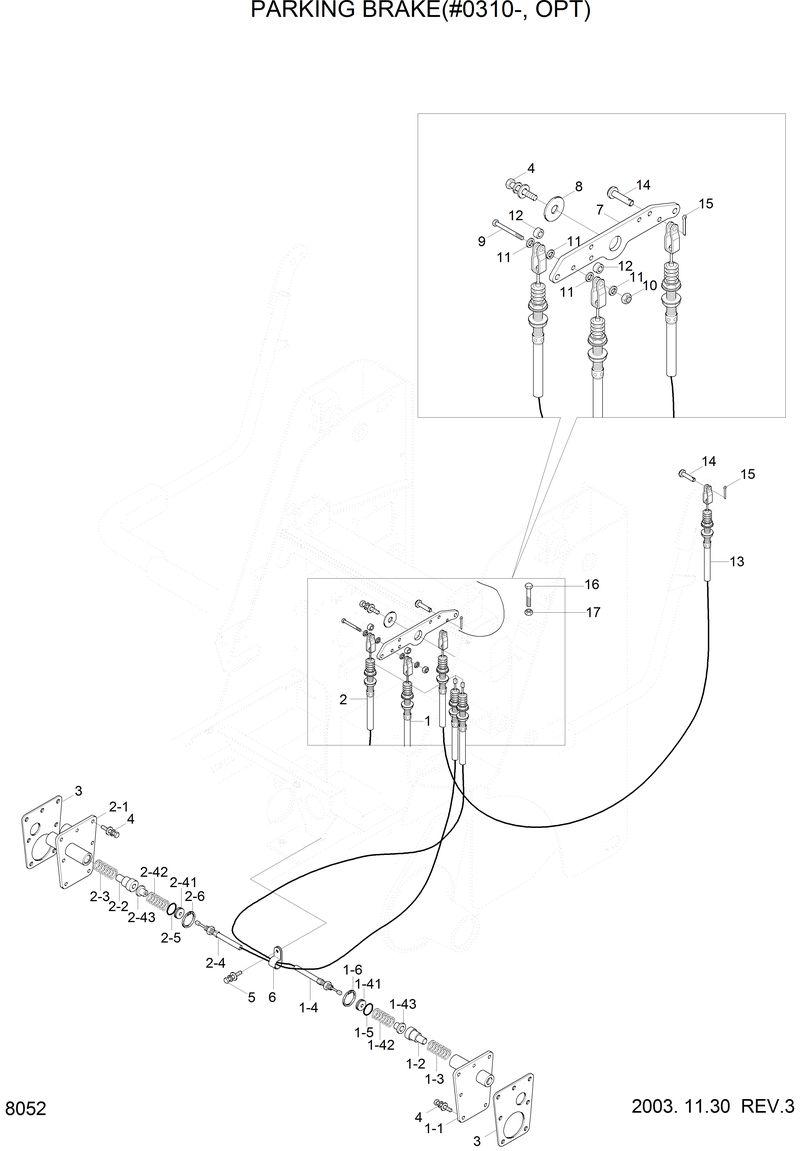

Запчасти Hyundai HSL610 PARKING BRAKE(#0310-, OPT)

*

@

@-Parking Brack

1

81S4-30560

81S4-30560-Pin Sub Assy-Lh

1-4

81S4-30520

81S4-30520-. Cable Assy-Lh

10

S205-080002

S205-080002-Nut-Hex

11

S403-082002

S403-082002-Washer-Plain

12

81S4-30580

81S4-30580-Spacer

13

81S4-30590

81S4-30590-Cable-Pull

14

S491-080222

S491-080222-Pin-Clevis

15

S501-080002

S501-080002-Pin-Self Locking

16

81S4-30470

81S4-30470-Bolt-Hex

17

S205-101002

S205-101002-Nut-Hex

2

81S4-30570

81S4-30570-Pin Sub Assy-Rh

2-1

81S4-30600

81S4-30600-. Housing Wa

2-1

81S4-30600

81S4-30600-. Housing Wa

2-2

81S4-30500

81S4-30500-. Pin

2-2

81S4-30500

81S4-30500-. Pin

2-3

81S4-30510

81S4-30510-. Spring

2-3

81S4-30510

81S4-30510-. Spring

2-4

81S4-30530

81S4-30530-. Cable Assy-Rh

2-41

81S4-30540

81S4-30540-.. Retainer

2-41

81S4-30540

81S4-30540-.. Retainer

2-42

81S4-30550

81S4-30550-.. Spring

2-42

81S4-30550

81S4-30550-.. Spring

2-43

81S4-30380

81S4-30380-.. Piston

2-43

81S4-30380

81S4-30380-.. Piston

2-5

S632-035001

S632-035001-. O-Ring

2-5

S632-035001

S632-035001-. O-Ring

2-6

S602-040004

S602-040004-. Ring-Retaining

2-6

S602-040004

S602-040004-. Ring-Retaining

3

81S5-30170

81S5-30170-Gasket

4

S037-123522

S037-123522-Bolt-W/Washer

5

S035-082022

S035-082022-Bolt-W/Washer

6

S543-140002

S543-140002-Clamp-Tube

7

81S4-30431

81S4-30431-Lever

8

81S4-30210

81S4-30210-Washer-Special

9

S017-080502

S017-080502-Bolt-Hex
