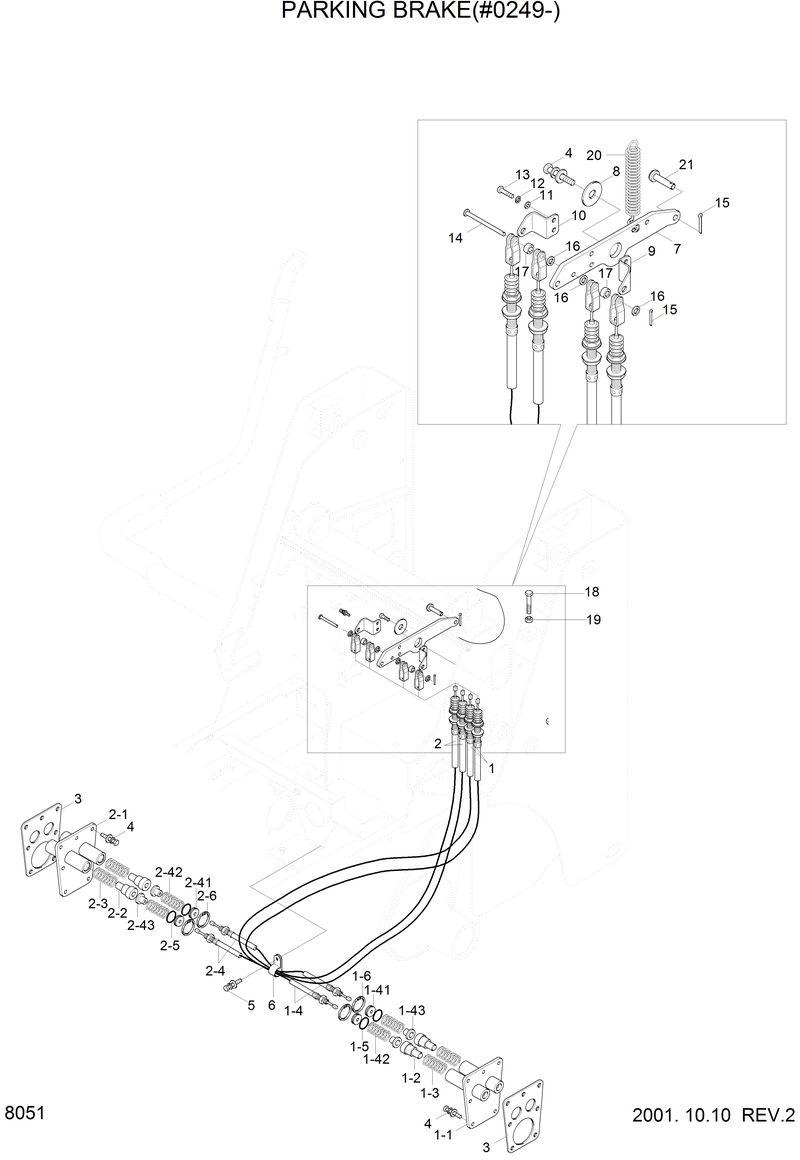

Запчасти Hyundai HSL610 PARKING BRAKE(#0249-)

@

@-Parking Brake

@

@-Parking Brake

1

81S4-30410

81S4-30410-Pin Sub Assy-Lh

1-4

81S4-30520

81S4-30520-. Cable Assy-Lh

10

81S4-30450

81S4-30450-Bracket-Rh

11

S403-062002

S403-062002-Washer-Plain

12

S411-060002

S411-060002-Washer-Spring

13

S015-060252

S015-060252-Bolt-Hex

14

S491-080902

S491-080902-Pin-Clevis

15

S501-080002

S501-080002-Pin-Self Locking

16

S403-082002

S403-082002-Washer-Plain

17

81S4-30460

81S4-30460-Spacer

18

81S4-30470

81S4-30470-Bolt-Hex

19

S205-101002

S205-101002-Nut-Hex

2

81S4-30420

81S4-30420-Pin Sub Assy-Rh

2-1

81S4-30490

81S4-30490-. Housing Wa

2-1

81S4-30490

81S4-30490-. Housing Wa

2-2

81S4-30500

81S4-30500-. Pin

2-2

81S4-30500

81S4-30500-. Pin

2-3

81S4-30510

81S4-30510-. Spring

2-3

81S4-30510

81S4-30510-. Spring

2-4

81S4-30530

81S4-30530-. Cable Assy-Rh

2-41

81S4-30540

81S4-30540-.. Retainer

2-41

81S4-30540

81S4-30540-.. Retainer

2-42

81S4-30550

81S4-30550-.. Spring

2-42

81S4-30550

81S4-30550-.. Spring

2-43

81S4-30380

81S4-30380-.. Piston

2-43

81S4-30380

81S4-30380-.. Piston

2-5

S632-035001

S632-035001-. O-Ring

2-5

S632-035001

S632-035001-. O-Ring

2-6

S602-040004

S602-040004-. Ring-Retaining C Type

2-6

S602-040004

S602-040004-. Ring-Retaining C Type

20

81S4-30480

81S4-30480-Spring

21

S491-080302

S491-080302-Pin-Clevis

3

81S5-30170

81S5-30170-Gasket

4

S037-123522

S037-123522-Bolt-W/Washer

5

S035-082022

S035-082022-Bolt-W/Washer

6

S543-180002

S543-180002-Clamp-Tube

7

81S4-30430

81S4-30430-Lever

8

81S4-30210

81S4-30210-Washer-Special

9

81S4-30440

81S4-30440-Bracket-Lh
