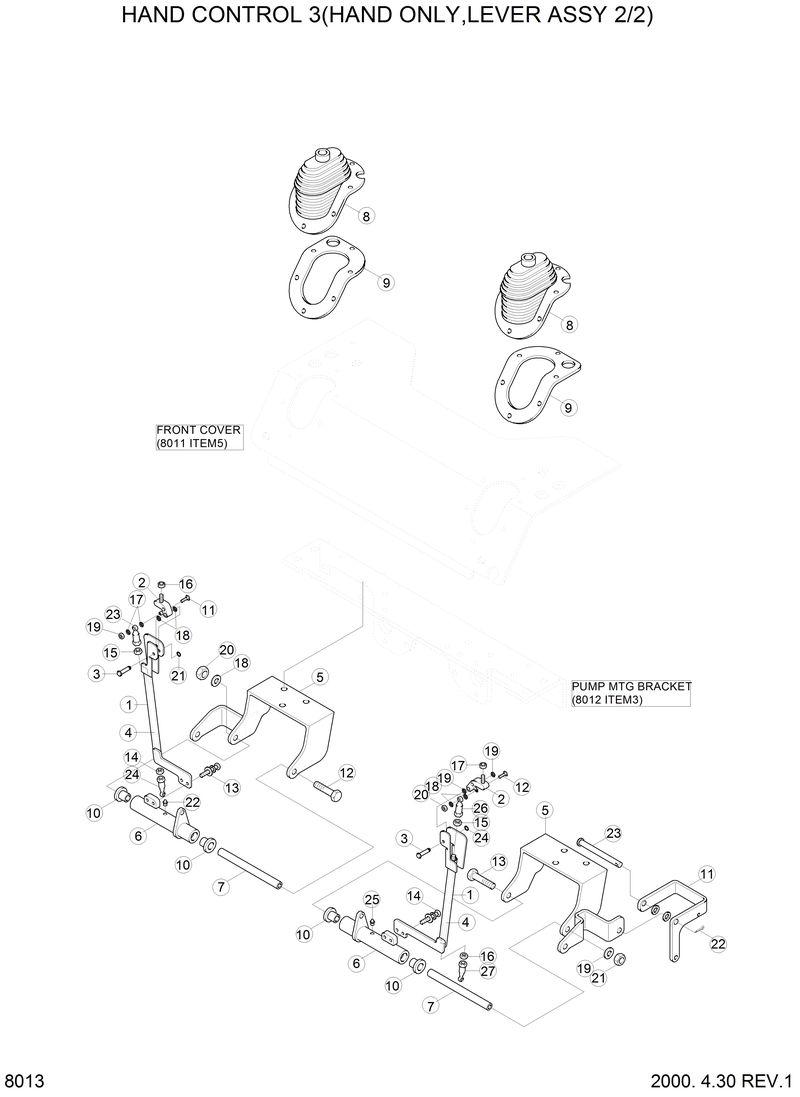

Запчасти Hyundai HSL610 HAND CONTROL 3(HAND ONLY,LEVER ASSY 2/2)

82S4-00330

82S4-00330-.. Bracket-Lever/Rh

82S4-00360

82S4-00360-.. Boss-Lever/Rh

82S5-00270

82S5-00270-.. Plate-Rh

82S4-00030

82S4-00030-.. Hand Lever Wa-Rh

*

80S4-00060

80S4-00060-Hand Lever Sub Assy

*-1

82S4-00010

82S4-00010-. Hand Lever Assy(Lh)

*-2

82S4-00310

82S4-00310-. Hand Lever Assy(Rh)

1

82S4-00020

82S4-00020-.. Hand Lever Wa-Lh

10

41S1-2029

41S1-2029-.. Bushing-Nylon

11

81S4-00170

81S4-00170-.. Plate-Pedal Lock

12

S175-060252

S175-060252-.. Bolt-Hex,Rd Hd

13

S017-101502

S017-101502-.. Bolt-Hex

14

S035-103522

S035-103522-.. Bolt-W/Washer

15

S205-061002

S205-061002-.. Nut-Hex

16

S205-101002

S205-101002-.. Nut-Hex

17

S206-141002

S206-141002-.. Nut-Hex

18

S403-062002

S403-062002-.. Washer-Plain

19

S403-102002

S403-102002-.. Washer-Plain

2

82S5-00100

82S5-00100-.. Plate-Link

20

S275-060002

S275-060002-.. Nut-Self Locking

21

S275-100002

S275-100002-.. Nut-Self Locking

22

S461-320202

S461-320202-.. Pin-Split

23

S491-101102

S491-101102-.. Pin-Clevis

24

S601-010004

S601-010004-.. Ring-Retainer

25

S651-060008

S651-060008-.. Nipple-Grease

26

S923-106000

S923-106000-.. Rod End

27

S923-110000

S923-110000-.. Rod End-Female

3

82S5-00120

82S5-00120-.. Pin

4

82S5-00130

82S5-00130-.. Rod

5

82S4-00150

82S4-00150-.. Bracket-Lever/Lh

6

82S4-00180

82S4-00180-.. Boss-Lever/Lh

7

82S4-00220

82S4-00220-.. Spacer

8

82S5-00251

82S5-00251-.. Boots-Hand Lever

9

82S5-00260

82S5-00260-.. Plate-Lh
