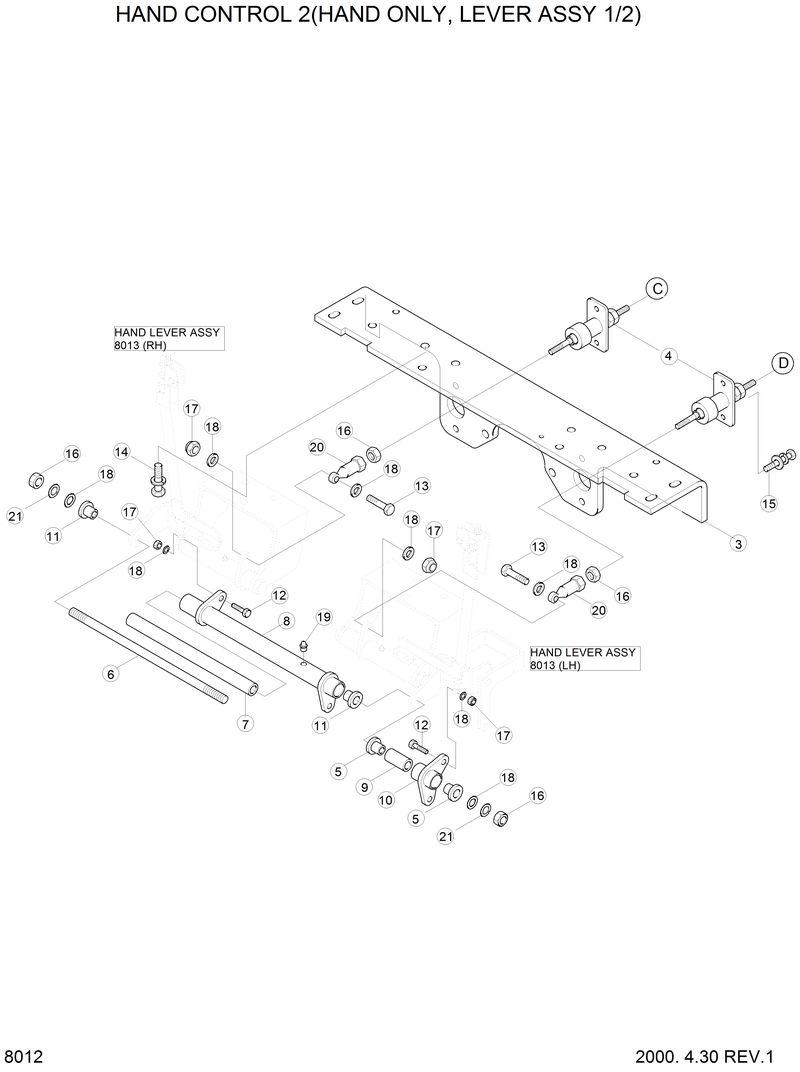

Запчасти Hyundai HSL610 HAND CONTROL 2(HAND ONLY,LEVER ASSY 1/2)

*

80S4-00060

80S4-00060-Hand Lever Sub Assy

*-1

@

@-. Lever Assy-Lh

*-2

@

@-. Lever Assy-Rh

10

82S4-10360

82S4-10360-. Hinge-Boom

11

41S1-2029

41S1-2029-. Bushing-Nylon

12

S017-100402

S017-100402-. Bolt-Hex

13

S017-100452

S017-100452-. Bolt-Hex

14

S037-102012

S037-102012-. Bolt-W/Washer

15

S037-102522

S037-102522-. Bolt-W/Washer

16

S205-101002

S205-101002-. Nut-Hex

17

S275-100002

S275-100002-. Nut-Self Locking

18

S403-102002

S403-102002-. Washer-Plain

19

S651-060008

S651-060008-. Nipple-Grease

20

S923-110000

S923-110000-. Rod End-Female

21

S411-100002

S411-100002-. Washer-Spring

3

82S4-00040

82S4-00040-. Pump Mtg Bracket

4

82S4-00050

82S4-00050-. Spring Bolt Assy

5

81S4-10210

81S4-10210-. Bushing-Nylon

6

82S5-10300

82S5-10300-. Bolt-Hinge

7

82S5-10310

82S5-10310-. Spacer

8

82S4-10320

82S4-10320-. Hinge-Bucket

9

82S5-10350

82S5-10350-. Spacer
