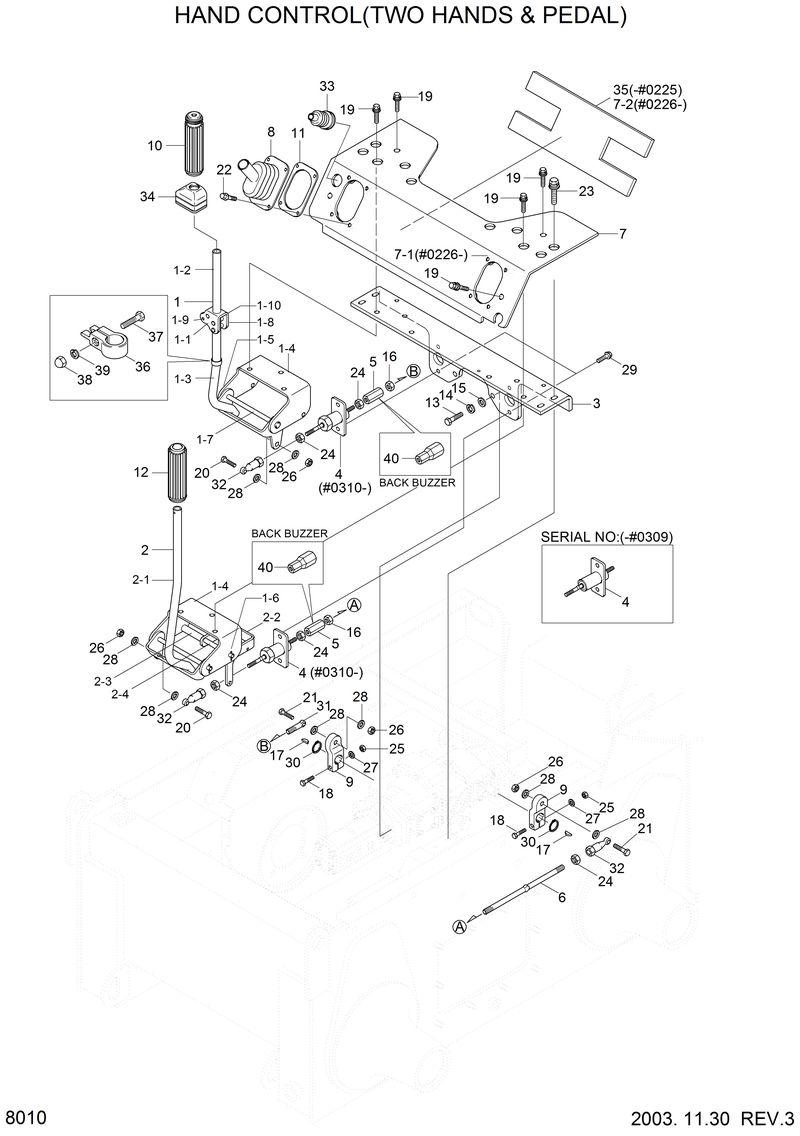

Запчасти Hyundai HSL610 HAND CONTROL(TWO HANDS & PEDAL)

S057-100252

S057-100252-Bolt-Hex,Flanged

81S4-00041

81S4-00041-Bracket-Pump Mtg

S923-110000

S923-110000-Rod End-Female

82S4-00050

82S4-00050-Spring Bolt Assy

S037-103522

S037-103522-Bolt-W/Washer Hex

S035-103522

S035-103522-Bolt-W/Washer Hex

S035-103522

S035-103522-Bolt-W/Washer Hex

81S4-00081

81S4-00081-Front Cover

81S4-00082

81S4-00082-Front Cover

S205-101002

S205-101002-Nut-Hex

S205-101002

S205-101002-Nut-Hex

S057-100302

S057-100302-Bolt-Hex,Flanged

S175-080352

S175-080352-Screw-Socket Rd Hd

1

81S4-00020

81S4-00020-Hand Lever-Rh

1-1

81S4-00120

81S4-00120-. Pin

1-10

S501-080002

S501-080002-. Pin-Self Locking

1-2

81S4-00130

81S4-00130-. Handle Wa

1-3

81S4-00140

81S4-00140-. Hand Lever Wa-Rh

1-4

81S4-00150

81S4-00150-. Bracket-Hinge

1-5

S403-102002

S403-102002-. Washer-Plain

1-6

S461-320202

S461-320202-. Pin-Split

1-7

S491-102022

S491-102022-. Pin-Clevis

1-8

S601-010004

S601-010004-. Ring-Retaining

1-9

S491-100402

S491-100402-. Pin-Clevis

10

81S1-0002

81S1-0002-Hand Grip-Lh

11

81S1-0007

81S1-0007-Plate

12

81S1-0015

81S1-0015-Hand Grip-Rh

13

81S1-0021

81S1-0021-Bolt-Hex

14

81S1-0022

81S1-0022-Washer-Spring

15

81S1-0023

81S1-0023-Washer-Plain

16

81S1-0051

81S1-0051-Nut-Hex,Left Thread

17

81S1-0053

81S1-0053-Key

18

S015-080502

S015-080502-Bolt-Hex

19

S035-102522

S035-102522-Bolt-W/Washer Hex

2

81S4-00030

81S4-00030-Hand Lever-Lh

2-1

81S4-00160

81S4-00160-. Hand Lever Wa-Lh

2-2

81S4-00170

81S4-00170-. Plate-Pedal Lock

2-3

81S4-00220

81S4-00220-. Spacer

2-4

81S4-00230

81S4-00230-. Spacer

20

S017-100352

S017-100352-Bolt-Hex

21

S017-100502

S017-100502-Bolt-Hex

22

S033-061526

S033-061526-Bolt-W/Washer Hex

23

S035-103022

S035-103022-Bolt-W/Washer Hex

25

S275-080002

S275-080002-Nut-Self Locking

26

S275-100002

S275-100002-Nut-Self Locking

27

S403-082002

S403-082002-Washer-Plain

28

S403-102002

S403-102002-Washer-Plain

3

81S4-00040

81S4-00040-Bracket-Pump Mtg

30

S601-025004

S601-025004-Ring-Retaining

31

S921-210000

S921-210000-Rod End-Male

32

81S1-00081

81S1-00081-Rod End

33

81S4-10170

81S4-10170-Boot-Rubber

34

81S4-00090

81S4-00090-Cover-Rubber

35

81S4-00291

81S4-00291-Insulation

36

81S4-00261

81S4-00261-Bracket-Cable

37

S175-080302

S175-080302-Screw-Socket Rd Hd

38

S295-080002

S295-080002-Nut-Domed Cap

39

S411-080002

S411-080002-Washer-Spring

4

81S4-00050

81S4-00050-Spring Bolt Assy

40

82S4-00060

82S4-00060-Link-Adjust

5

81S4-00060

81S4-00060-Link-Adjust

6

81S4-00070

81S4-00070-Rod-Lh

7

81S4-00080

81S4-00080-Front Cover

7-1

S241-060000

S241-060000-. Nut-Weld

7-2

81S4-00291

81S4-00291-. Insulation

8

81S4-00100

81S4-00100-Rubber Boot

9

81S4-00110

81S4-00110-Lever-Pump
