Запчасти Hyundai HSL610 CAB(3/3, FRONT DOOR)

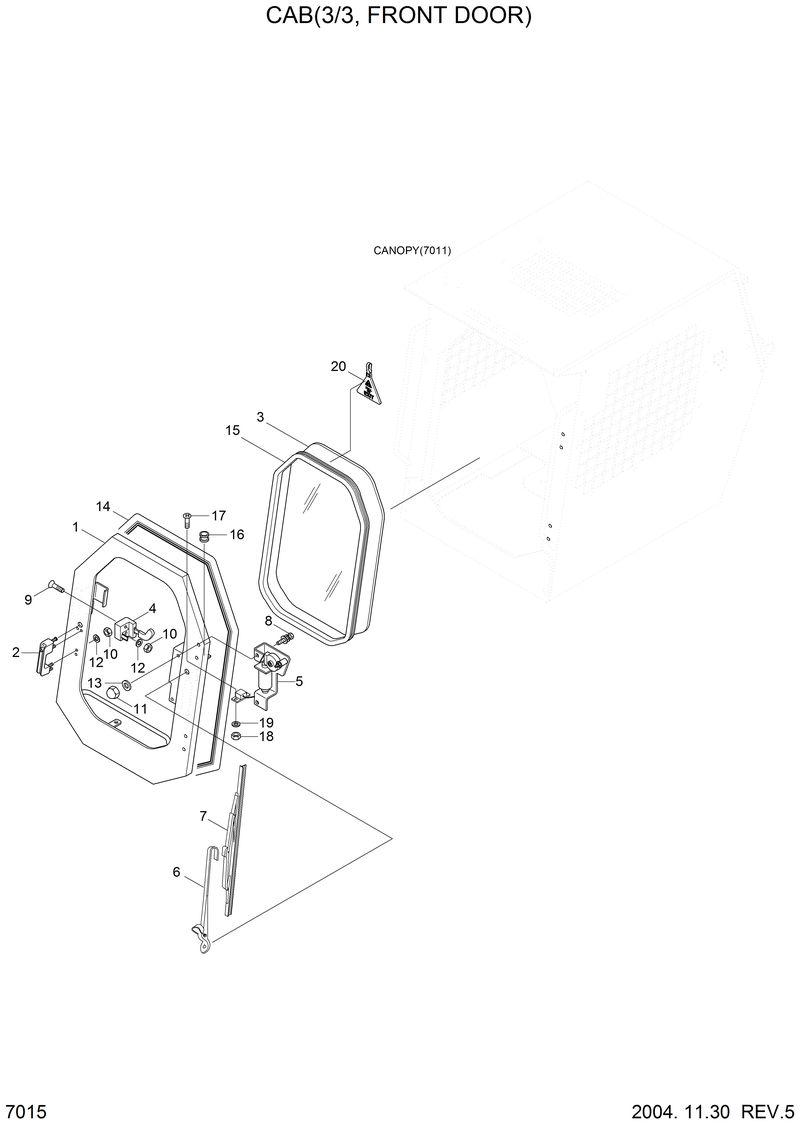

Схема запчастей Hyundai HSL610 - CAB(3/3, FRONT DOOR)

Артикул

Название

Примечание

Количество

71S4-20251

71S4-20251-. Front Door Wa

S781-132002

S781-132002-. Seal-Glass

71S4-20271

71S4-20271-. Glass-Front

1

71S4-20250

71S4-20250-. Front Door Wa

10

S275-060006

S275-060006-. Nut-Self Locking

11

S295-080006

S295-080006-. Nut-Domed Cap

12

S401-062006

S401-062006-. Washer-Plain

13

S411-080006

S411-080006-. Washer-Spring

14

S772-031300

S772-031300-. Weather Strip

15

S781-124652

S781-124652-. Seal-Glass

16

S681-100400

S681-100400-. Grommet

17

S161-040102

S161-040102-. Screw-Rd Hd

18

S205-041002

S205-041002-. Nut-Hex

19

S411-040002

S411-040002-. Washer-Spring

2

71S4-20260

71S4-20260-. Handle

20

71S4-10670

71S4-10670-. Tag-Exit

3

71S4-20270

71S4-20270-. Glass-Front

4

72FA-12100

72FA-12100-. Door Latch-Lh

5

21M5-30310

21M5-30310-. Motor-Wiper

6

21S4-09080

21S4-09080-. Arm-Wiper

7

21S4-09090

21S4-09090-. Blade-Wiper

8

S035-081622

S035-081622-. Bolt-W/Washer

9

S141-060406

S141-060406-. Screw-Flat Hd

N*

71S4-20030

71S4-20030-Front Door Assy

Выбрано товаров: 24
