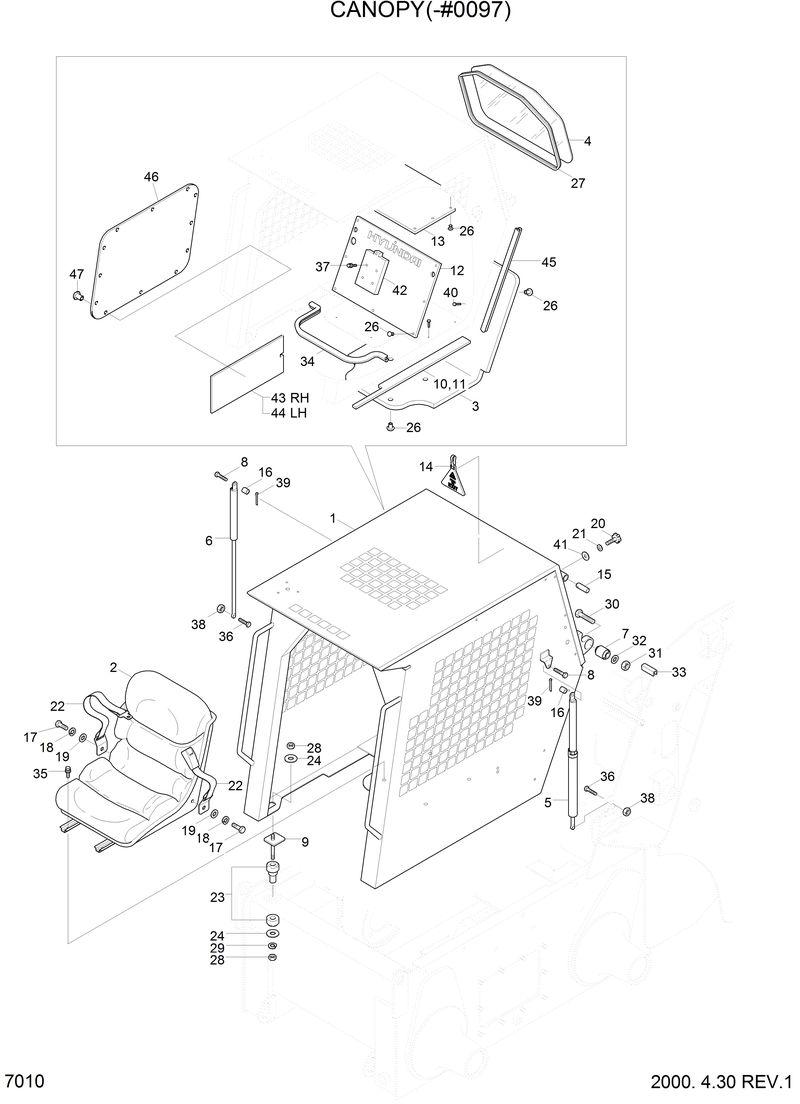

Запчасти Hyundai HSL610 CANOPY(-#0097)

*

@

@-Canopy

1

71S4-10020

71S4-10020-Canopy Wa

10

71S4-10590

71S4-10590-Strip-Lh

11

71S4-10601

71S4-10601-Strip-Rh

12

71S4-10622

71S4-10622-Insulator

13

71S4-10642

71S4-10642-Insulator

14

71S4-10670

71S4-10670-Tag-Exit

15

71S4-10700

71S4-10700-Pin-Lock

16

71S4-10711

71S4-10711-Bushing-Nylon

17

81S1-0021

81S1-0021-Bolt-Hex

18

81S1-0022

81S1-0022-Washer-Spring

19

81S1-0023

81S1-0023-Washer-Plain

2

71S4-10500

71S4-10500-Seat Assy

20

61S1-1008

61S1-1008-Bolt Assy-Special

21

61S1-1036

61S1-1036-Packing-Rubber

22

71S4-10760

71S4-10760-Seat Belt

23

11S1-3016

11S1-3016-Vibration Mount

24

11S1-3017

11S1-3017-Washer-Special

25

71EM-51580

71EM-51580-Cap-Stud Bolt

27

S781-119702

S781-119702-Seal-Glass

28

S205-121002

S205-121002-Nut-Hex

29

S411-120002

S411-120002-Washer-Spring

3

71S4-10512

71S4-10512-Insulator

30

S017-181052

S017-181052-Bolt-Hex

31

S275-180002

S275-180002-Nut-Self Locking

32

S403-182002

S403-182002-Washer-Plain

33

S792-060005

S792-060005-Grommet-Plate

34

S771-009800

S771-009800-Weather Strip

35

S033-081526

S033-081526-Bolt-W/Washer

36

S017-100452

S017-100452-Bolt-Hex

37

S161-050306

S161-050306-Screw

38

S275-100002

S275-100002-Nut-Self Locking

39

S461-200152

S461-200152-Pin-Split

4

71S4-10520

71S4-10520-Window-Rear

40

S161-050252

S161-050252-Screw

41

S403-082002

S403-082002-Washer-Plain

42

71S4-10740

71S4-10740-Box-Manual

43

71S4-10770

71S4-10770-Insulator-Rh

44

71S4-10780

71S4-10780-Insulator-Lh

45

S772-006100

S772-006100-Weather Strip

46

71S4-10790

71S4-10790-Acryl-Side

47

71S4-10830

71S4-10830-Rivet-Screw

5

71S4-10530

71S4-10530-Gas Spring-Lock Type

6

71S4-10540

71S4-10540-Gas Spring

8

11S4-30060

11S4-30060-Bolt-Special

9

71S4-10580

71S4-10580-Support Wa-Bolt

N7

71S4-10550

71S4-10550-Rubber Bush
