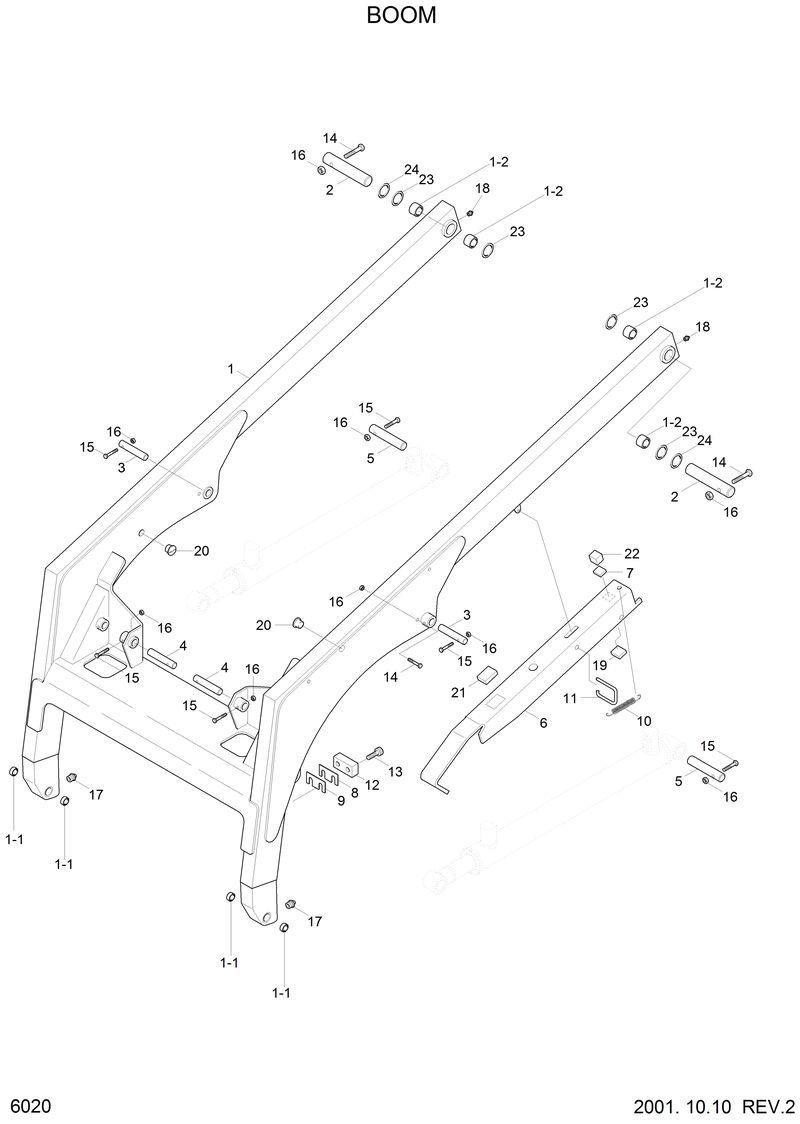

Запчасти Hyundai HSL610 BOOM

61S5-10450

61S5-10450-Pin

61S5-10070

61S5-10070-Bracket-Boom Lock

1

61S4-10020

61S4-10020-Boom Wa

1-1

61S1-1024

61S1-1024-. Bushing

1-2

61S1-1026

61S1-1026-. Bushing

10

61S4-10380

61S4-10380-Spring

11

61S4-10390

61S4-10390-Pin

12

61S4-00300

61S4-00300-Stopper

13

S107-100256

S107-100256-Bolt-Socket

14

S017-100752

S017-100752-Bolt-Hex

15

S017-100552

S017-100552-Bolt-Hex

16

S275-100002

S275-100002-Nut-Self Locking

17

S651-810002

S651-810002-Nipple-Grease

18

S652-810002

S652-810002-Nipple-Grease

19

61S4-10400

61S4-10400-Pad-Rubber

2

61S4-10030

61S4-10030-Pin

20

41M5-80030

41M5-80030-Cap

21

61S4-10450

61S4-10450-Pad-Rubber

22

62S4-10450

62S4-10450-Pad-Rubber

23

S391-030060

S391-030060-Shim-Round

24

S392-030060

S392-030060-Shim-Round

3

61S4-10040

61S4-10040-Pin

4

61S4-10050

61S4-10050-Pin

5

61S4-10060

61S4-10060-Pin

6

61S4-10070

61S4-10070-Bracket-Boom Lock

7

61S4-10080

61S4-10080-Pad-Rubber

8

61S4-10090

61S4-10090-Shim

9

61S4-10100

61S4-10100-Shim
