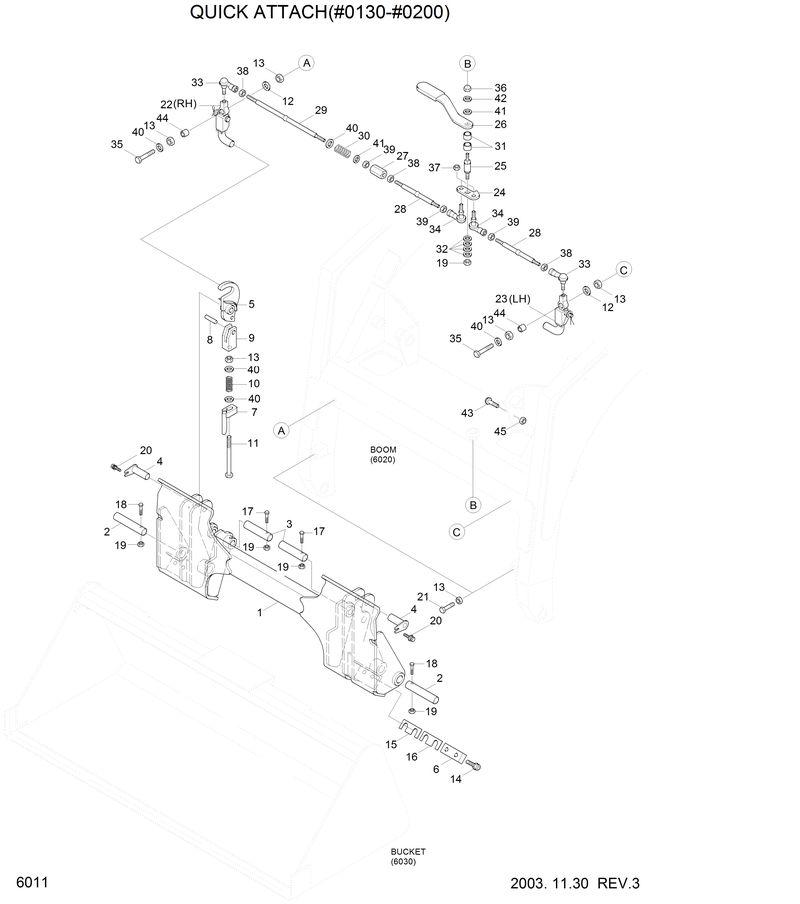

Запчасти Hyundai HSL610 QUICK ATTACH(#0130-#0200)

*

@

@-Quick Attach

1

61S4-00021

61S4-00021-Implement Holder Wa

10

61S1-0040

61S1-0040-Spring

11

S017-161402

S017-161402-Bolt-Hex

13

S205-161002

S205-161002-Nut-Hex

14

S107-100256

S107-100256-Bolt-Socket

15

61S4-10090

61S4-10090-Shim

16

61S4-10100

61S4-10100-Shim

17

S017-100602

S017-100602-Bolt-Hex

18

S017-100652

S017-100652-Bolt-Hex

19

S275-100002

S275-100002-Nut-Self Locking

2

61S4-00030

61S4-00030-Pin

20

S035-061522

S035-061522-Bolt-W/Washer

21

S017-160452

S017-160452-Bolt-Hex

24

61S5-00431

61S5-00431-Plate

25

61S5-00441

61S5-00441-Pin

26

61S5-00450

61S5-00450-Lever-Hand

27

61S5-00460

61S5-00460-Link-Adjust

28

61S5-00470

61S5-00470-Rod

29

61S5-00480

61S5-00480-Rod

3

61S4-00040

61S4-00040-Pin

30

61S5-00490

61S5-00490-Spring

31

81S4-10210

81S4-10210-Bushing-Nylon

32

11S1-1002

11S1-1002-Wahser-Conical Spring

33

S926-108000

S926-108000-Rod End

34

S926-208000

S926-208000-Rod End

35

61S5-00520

61S5-00520-Bolt-Hex

36

S295-100002

S295-100002-Nut-Domed Cap

37

S275-080002

S275-080002-Nut-Self Locking

38

S205-081002

S205-081002-Nut-Hex

39

909905401

909905401-Nut-Hex

4

61S4-00050

61S4-00050-Pin Wa

40

S403-162002

S403-162002-Washer-Plain

40

S403-162002

S403-162002-Washer-Plain

41

S403-102002

S403-102002-Washer-Plain

42

S411-100002

S411-100002-Washer-Spring

43

71EH-13150

71EH-13150-Bumper-Rubber

44

61S5-00530

61S5-00530-Spacer

45

S205-101002

S205-101002-Nut-Hex

5

61S5-00341

61S5-00341-Lever Wa

6

61S4-00300

61S4-00300-Stopper

7

61S5-00311

61S5-00311-Pin Wa

8

61S1-0039

61S1-0039-Pin

9

61S5-00400

61S5-00400-Block-Adjust

N22

61S5-00411

61S5-00411-Lever Assy-Rh

N23

61S5-00421

61S5-00421-Lever Assy-Lh
