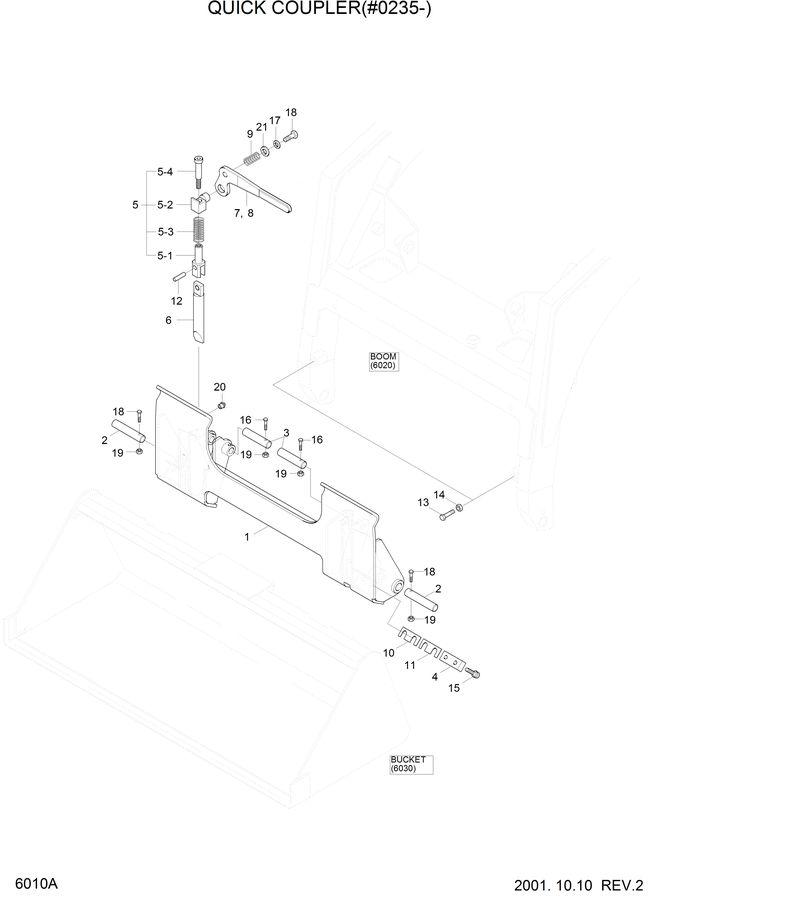

Запчасти Hyundai HSL610 QUICK COUPLER(#0235-)

*

@

@-Quick Coupler

1

61S4-00022

61S4-00022-Quick Coupler Wa

10

61S4-10090

61S4-10090-Shim

11

61S4-10100

61S4-10100-Shim

12

S472-920504

S472-920504-Pin-Spring

13

S017-160452

S017-160452-Bolt-Hex

14

S205-161002

S205-161002-Nut-Hex

15

S109-100256

S109-100256-Bolt-Socket

16

S017-100602

S017-100602-Bolt-Hex

17

S403-142002

S403-142002-Washer-Plain

18

S017-100652

S017-100652-Bolt-Hex

19

S275-100002

S275-100002-Nut-Self Locking

2

61S4-00030

61S4-00030-Pin

20

S651-810002

S651-810002-Nipple-Grease

21

S403-102002

S403-102002-Washer-Plain

3

61S4-00040

61S4-00040-Pin

4

61S4-00300

61S4-00300-Stopper

5

61S5-00710

61S5-00710-Adjuster Assy

5-1

61S5-00790

61S5-00790-. Double Clevis

5-2

61S5-00800

61S5-00800-. Block

5-3

61S5-00810

61S5-00810-. Spring

5-4

61S5-00820

61S5-00820-. Bolt

6

61S5-00721

61S5-00721-Pin

7

61S5-00750

61S5-00750-Hand Lever-Rh

8

61S5-00760

61S5-00760-Hand Lever-Lh

9

61S5-00771

61S5-00771-Spring
