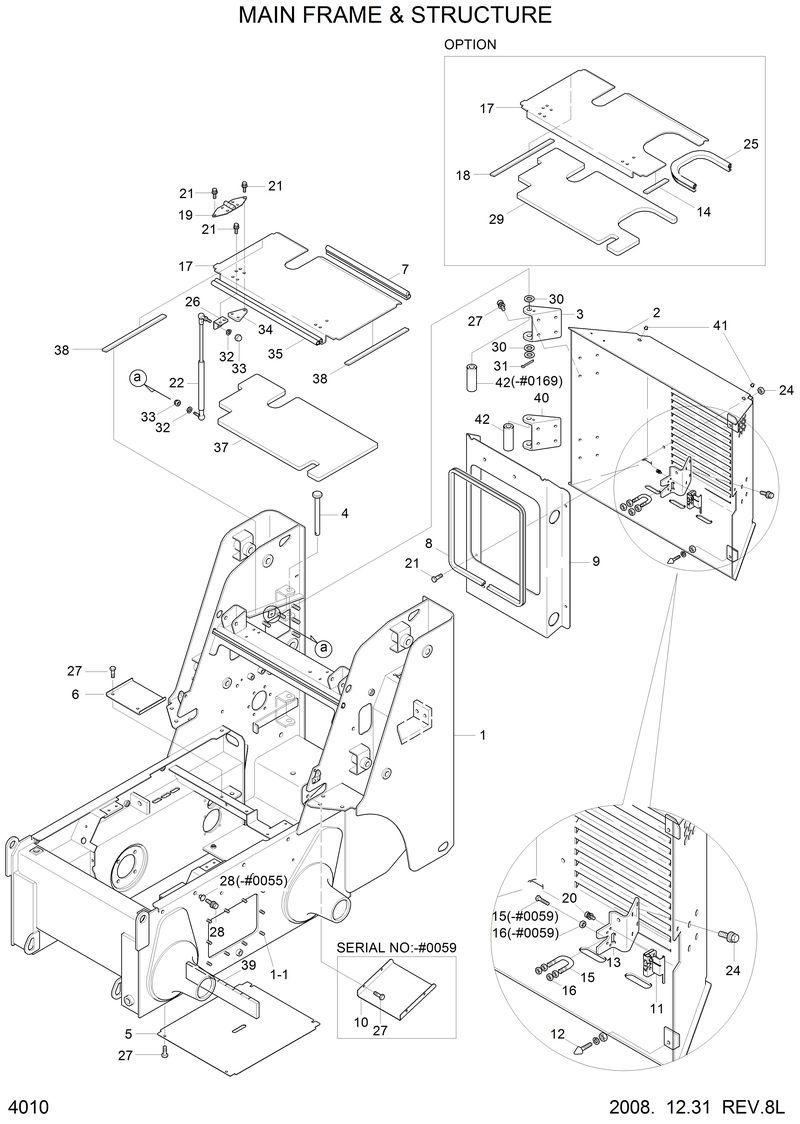

Запчасти Hyundai HSL610 MAIN FRAME & STRUCTURE

41S4-00017

41S4-00017-Main Frame Wa

S035-102522

S035-102522-Bolt-W/Washer

S035-103026

S035-103026-Bolt-W/Washer

S035-103026

S035-103026-Bolt-W/Washer

S771-005800

S771-005800-Weather Strip

S207-161002

S207-161002-Nut-Hex

41S4-20430

41S4-20430-Striker

41S4-20081

41S4-20081-Shroud-Oil Cooler

41S4-20082

41S4-20082-Shroud-Oil Cooler

E171-1178

E171-1178-Rubber-Bumper

41S4-20021

41S4-20021-Door-Rear

41S5-20340

41S5-20340-Spacer

41S4-00011

41S4-00011-Main Frame Wa

41S4-00012

41S4-00012-Main Frame Wa

41S4-00013

41S4-00013-Main Frame Wa

41S4-00014

41S4-00014-Main Frame Wa

41S4-00015

41S4-00015-Main Frame Wa

41S4-00016

41S4-00016-Main Frame Wa

S207-161002

S207-161002-Nut-Hex

41S4-00018

41S4-00018-Main Frame Wa

41S5-20340

41S5-20340-Spacer

E171-1178

E171-1178-Rubber-Bumper

1

41S4-00010

41S4-00010-Main Frame Wa

1-1

41S1-0029

41S1-0029-. Bolt-Stud Push In

10

41S4-20090

41S4-20090-Cover-Under

11

41S4-20300

41S4-20300-Latch Assy

13

41S4-20121

41S4-20121-Guide

14

41S4-20250

41S4-20250-Rubber Pad

15

S017-160852

S017-160852-Bolt-Hex

17

41S4-20160

41S4-20160-Engine Cover

19

41S1-2018

41S1-2018-Hinge

2

41S4-20020

41S4-20020-Door-Rear

20

S033-063526

S033-063526-Bolt-W/Washer

21

S033-082526

S033-082526-Bolt-W/Washer

22

42S4-20350

42S4-20350-Gas Spring

23

S035-123036

S035-123036-Bolt-W/Washer

24

S205-081002

S205-081002-Nut-Hex

25

S791-045057

S791-045057-Grommet-Plate

26

41S4-20370

41S4-20370-Angle

28

S981-121500

S981-121500-Plug

29

41S4-20331

41S4-20331-Sponge

3

41S4-20030

41S4-20030-Hinge

30

S441-200002

S441-200002-Washer-Hardened

31

S461-500352

S461-500352-Pin-Split

32

S411-080002

S411-080002-Washer-Spring

33

S295-080002

S295-080002-Cap Nut-Domed

34

41S4-20390

41S4-20390-Plate-Tap

35

S771-007600

S771-007600-Weather-Strip

36

41S4-20270

41S4-20270-Engine Cover

37

41S4-20290

41S4-20290-Sponge

38

41S4-20170

41S4-20170-Rubber Pad

38

41S4-20170

41S4-20170-Rubber Pad

39

41S4-20400

41S4-20400-Sponge

4

41S4-20260

41S4-20260-Pin-Clevis

40

41S4-20420

41S4-20420-Hinge

41

41M5-80030

41M5-80030-Cap

5

41S4-20050

41S4-20050-Belly Pan

6

41S4-20060

41S4-20060-Cover-Safety

7

S771-005300

S771-005300-Weather Strip

8

S771-017350

S771-017350-Weather Strip

9

41S4-20080

41S4-20080-Shroud-Oil Cooler
