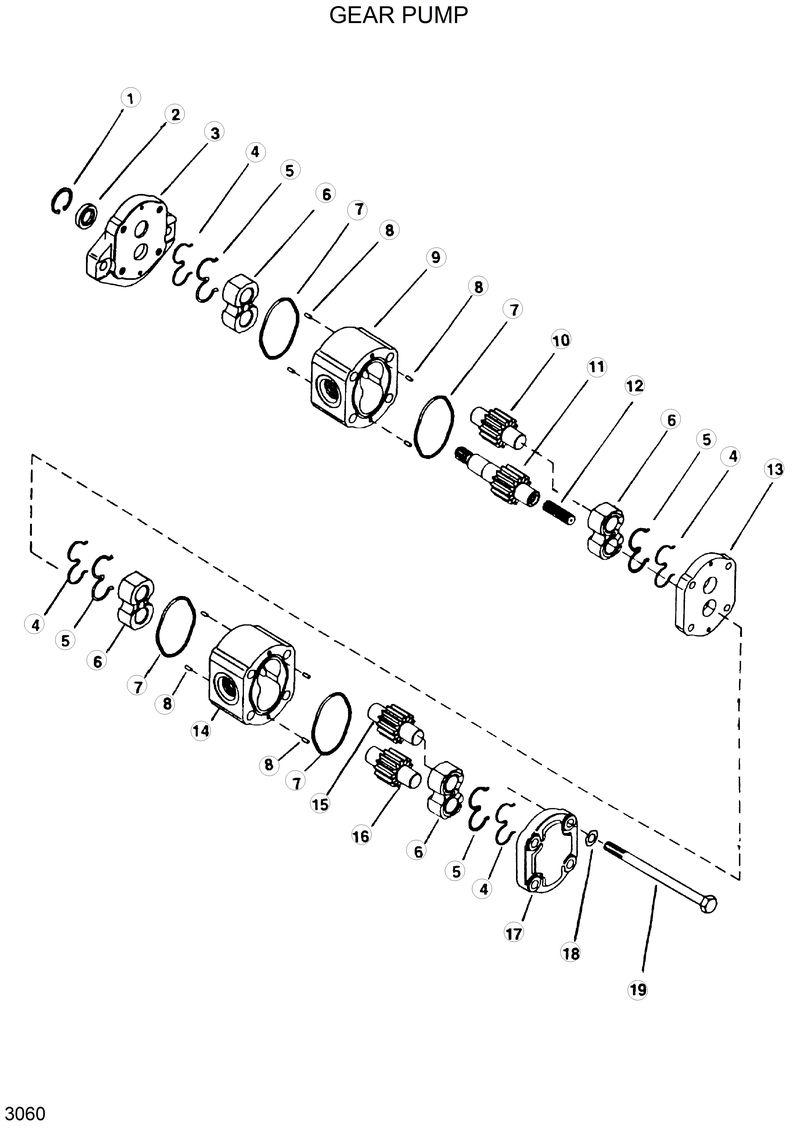

Запчасти Hyundai HSL610 GEAR PUMP

N

31S4-00060

31S4-00060-Gear Pump Assy

N1

31S4-0006A

31S4-0006A-Ring-Retaining

N10

31S4-0006J

31S4-0006J-Idler Gear(23cc)

N11

31S4-0006K

31S4-0006K-Drive Gear(23cc)

N12

31S4-0006L

31S4-0006L-Coupling

N13

31S4-0006M

31S4-0006M-Plate-Distance

N14

31S4-0006N

31S4-0006N-Gear Housing(27cc)

N15

31S4-0006P

31S4-0006P-Idler Gear(27cc)

N16

31S4-0006Q

31S4-0006Q-Drive Gear(27cc)

N17

31S4-0006R

31S4-0006R-End Cover

N18

31S4-0006S

31S4-0006S-Spacer(As Required)

N19

31S4-0006T

31S4-0006T-Bolt

N2

31S4-0006B

31S4-0006B-Shaft Seal

N3

31S4-0006C

31S4-0006C-Mounting Flange

N4

31S4-0006D

31S4-0006D-Backup Ring

N5

31S4-0006E

31S4-0006E-E-Seal

N6

31S4-0006F

31S4-0006F-Bearing Block

N7

31S4-0006G

31S4-0006G-O-Ring

N8

31S4-0006H

31S4-0006H-Dowel Pin

N9

31S4-0006I

31S4-0006I-Gear Housing(23cc)
