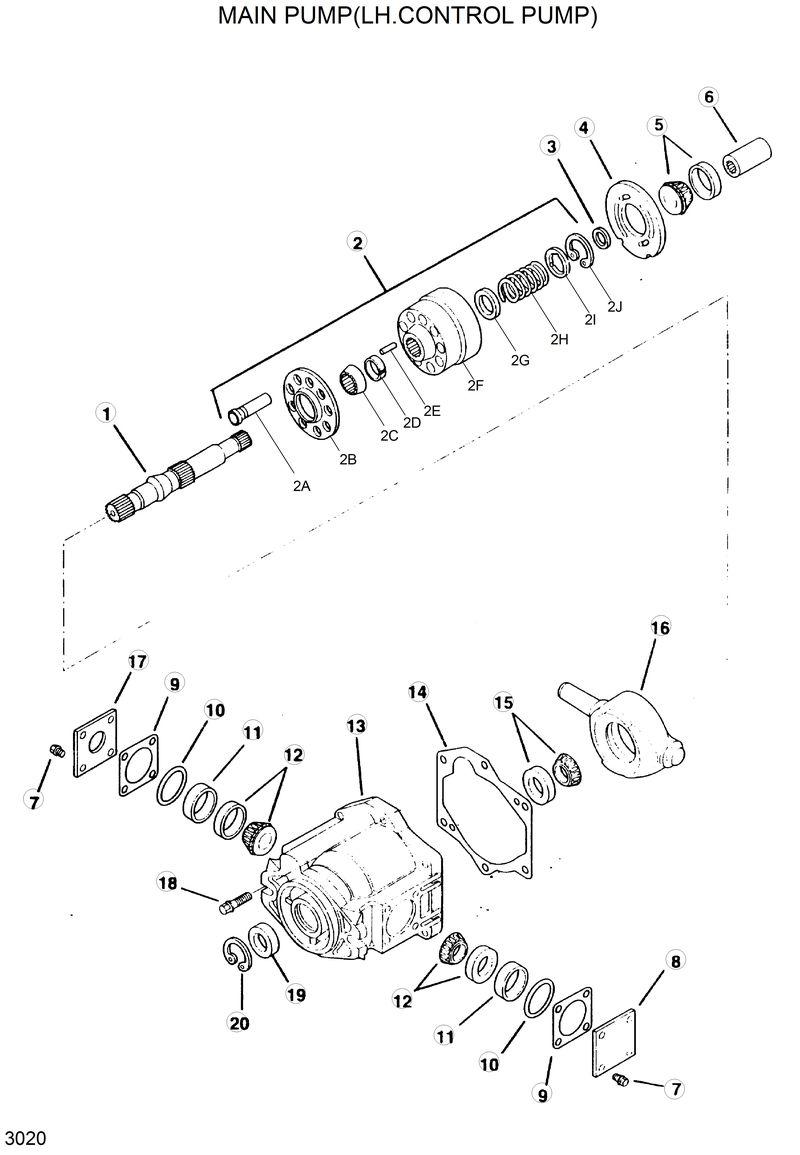

Запчасти Hyundai HSL610 MAIN PUMP(LH CONTROL PUMP)

1

423416

423416-Shaft

11

410053

410053-Spacer-Pintle

12

417381

417381-Bearing-Tapered Roller

13

422309

422309-Pump Housing

15

419627

419627-Bearing-Tapered Roller

16

146636

146636-Yoke-Swing

17

416638

416638-Pintle-Cover

18

427171

427171-Bolt

2

923936

923936-Kit-Rotating-Group

20

85560

85560-Retaining Ring

2A

923939

923939-Shoe S/A Kit-Piston

2B

402650

402650-Plate-Shoe

2C

402580

402580-Washer-Spherical

2D

410050

410050-Pin-Retainer

2E

248810

248810-Pin

2F

426836

426836-Cylinder Block

2G

404932

404932-Washer-Spring

2H

424526

424526-Spring

2I

423368

423368-Washer-Spring

2J

99907

99907-Ring-Retainer

3

942401

942401-Kit-Bearing-Spacer

5

473914

473914-Bearing-Tapered Roller

6

416650

416650-Coupling

7

427172

427172-Screw

8

416637

416637-Cover

K

920171

920171-Seal Kit

K10

174140

174140-O-Ring

K14

423617

423617-Gasket-Housing

K19

471965

471965-Shaft Seal

N

31S4-00050

31S4-00050-Hst Pump

N4

424481

424481-Wafer Plate

N9

923938

923938-Pintle-Shim-Kit
