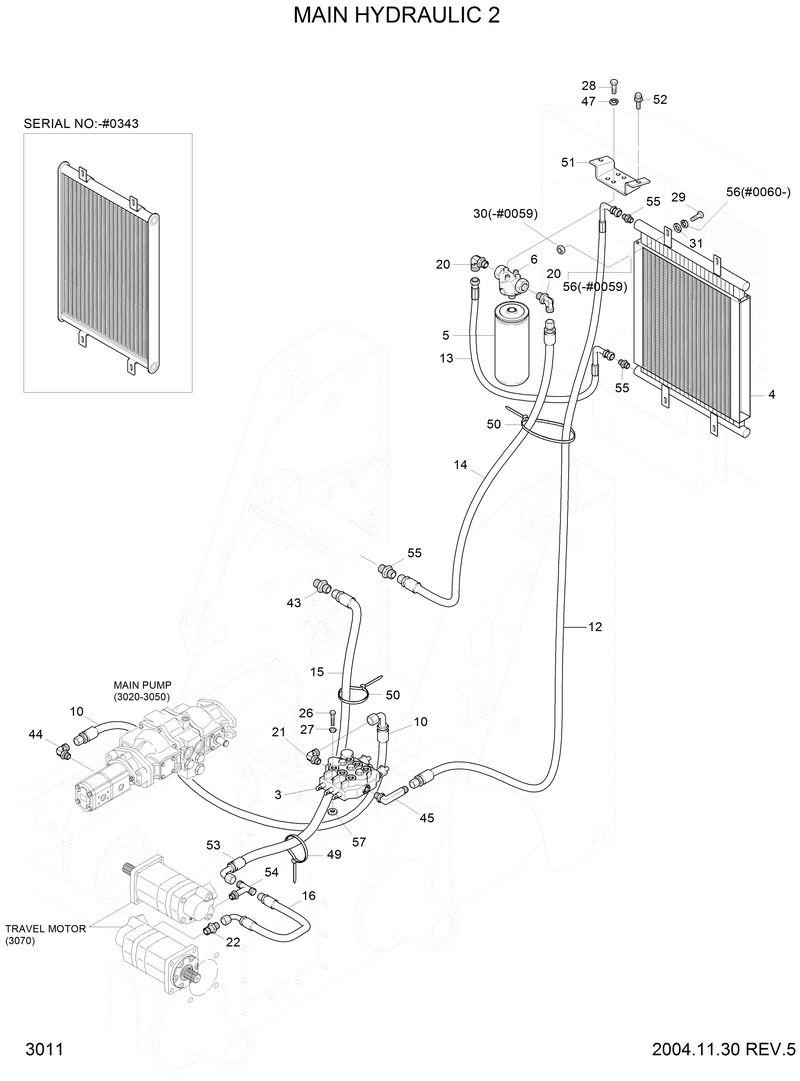

Запчасти Hyundai HSL610 MAIN HYDRAULIC 2

31S7-00660

31S7-00660-Elbow 90

P020-810005

P020-810005-Elbow-90

31S7-00460

31S7-00460-Elbow 90

P930-123017

P930-123017-Hose Assy-Orfs 0x90

P010-810005

P010-810005-Connector

P930-123014

P930-123014-Hose Assy-Orfs 0x90

31S5-20140

31S5-20140-Hose Assy-3/4"Id

31S4-30101

31S4-30101-Bracket-Filter Head

P933-123042

P933-123042-Hose Assy-Orfs 0x90

31S4-20061

31S4-20061-Hose Assy-3/4"Id(0x90)

S017-100252

S017-100252-Bolt-Hex

P010-810005

P010-810005-Connector

31S7-00390

31S7-00390-Connector-Long

S411-100002

S411-100002-Washer-Spring

31S4-00070

31S4-00070-Control Valve

P020-810005

P020-810005-Elbow-90

10

31S4-20040

31S4-20040-Hose Assy-5/8"Id

12

31S4-20060

31S4-20060-Hose Assy-3/4"Id(0x0)

13

31S4-20070

31S4-20070-Hose Assy-3/4"Id(0x0)

14

31S4-20081

31S4-20081-Hose Assy-3/4"Id(0x90)

16

31S4-20111

31S4-20111-Hose Assy(0x90)

21

P020-810004

P020-810004-Elbow-90

22

31S4-30140

31S4-30140-Connector

26

S015-080602

S015-080602-Bolt-Hex

27

S411-080002

S411-080002-Washer-Spring

28

31S1-1075

31S1-1075-Bolt-Hex

29

S017-100352

S017-100352-Bolt-Hex

3

31S4-00030

31S4-00030-Control Valve

30

S275-100002

S275-100002-Nut-Self Locking

31

S403-101002

S403-101002-Washer-Plain

4

31S4-00091

31S4-00091-Oil Cooler

43

P010-810003

P010-810003-Connector

44

31S1-1014

31S1-1014-Elbow-90

45

31S4-30080

31S4-30080-Elbow-90

47

31S1-1080

31S1-1080-Washer-Spring

49

S552-035146

S552-035146-Clamp-Band

5

31S1-1013

31S1-1013-Hyd Oil Filter

50

S552-050203

S552-050203-Tie-Cable

51

31S4-30100

31S4-30100-Bracket-Filter Head

52

S033-082026

S033-082026-Bolt-W/Washer Hex

53

31S4-20121

31S4-20121-Hose Assy(90x90)

54

31S4-30150

31S4-30150-Tee

56

S205-101002

S205-101002-Nut-Hex

57

S403-081002

S403-081002-Washer-Plain

6

31S1-1090

31S1-1090-Head-Filter

N4

31S4-00090

31S4-00090-Oil Cooler
