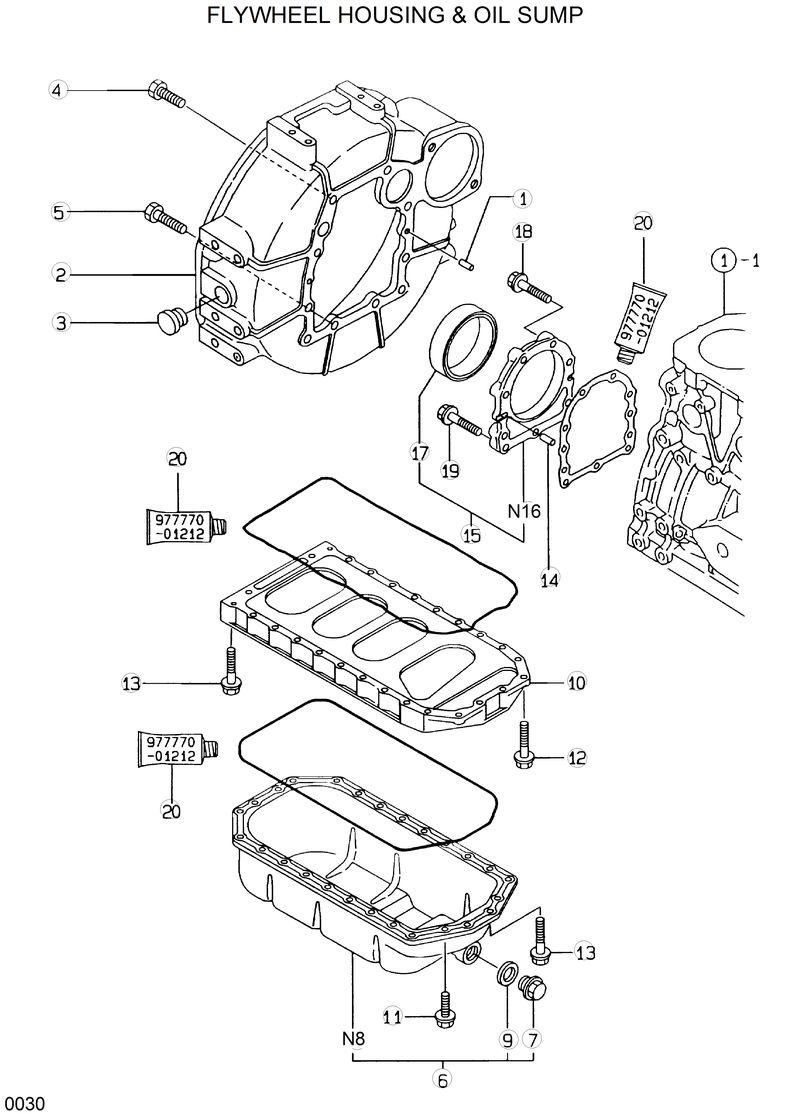

Запчасти Hyundai HSL610 FLYWHEEL HOUSING & OIL SUMP

10

129400-01730

129400-01730-. Spacer-Oil Sump

11

26106-080162

26106-080162-. Bolt M 8x 16 Plated

12

26106-080252

26106-080252-. Bolt M 8x 25 Plated

13

26106-080452

26106-080452-. Bolt M 8x 45 Plated

14

129100-01580

129100-01580-. Parallel Pin 8x16

14

129100-01580

129100-01580-. Parallel Pin 8x16

15

129100-01640

129100-01640-. Case Assy-Oil Seal

17

129795-01780

129795-01780-.. Seal-Oil

18

129486-01670

129486-01670-. Bolt M8x30-Collar Hd

19

26106-080352

26106-080352-. Bolt M 8x 35 Plated

2

129612-01600

129612-01600-. Housing-Flywheel

20

977770-01212

977770-01212-. Gasket-Liquid

3

119620-01750

119620-01750-. Cap-Flywheel Cover

4

26206-100252

26206-100252-. Bolt M10x25

5

26206-100302

26206-100302-. Bolt M10x30

6

129489-01770

129489-01770-. Sump Assy-Lub. Oil

7

105425-01690

105425-01690-.. Plug M16

9

22190-160002

22190-160002-.. Seal Washer

N

@

@-Not Individually Supplied

N16

129150-01650

129150-01650-.. Case-Oil Seal

N8

129489-01700

129489-01700-.. Sump-Lub.Oil
