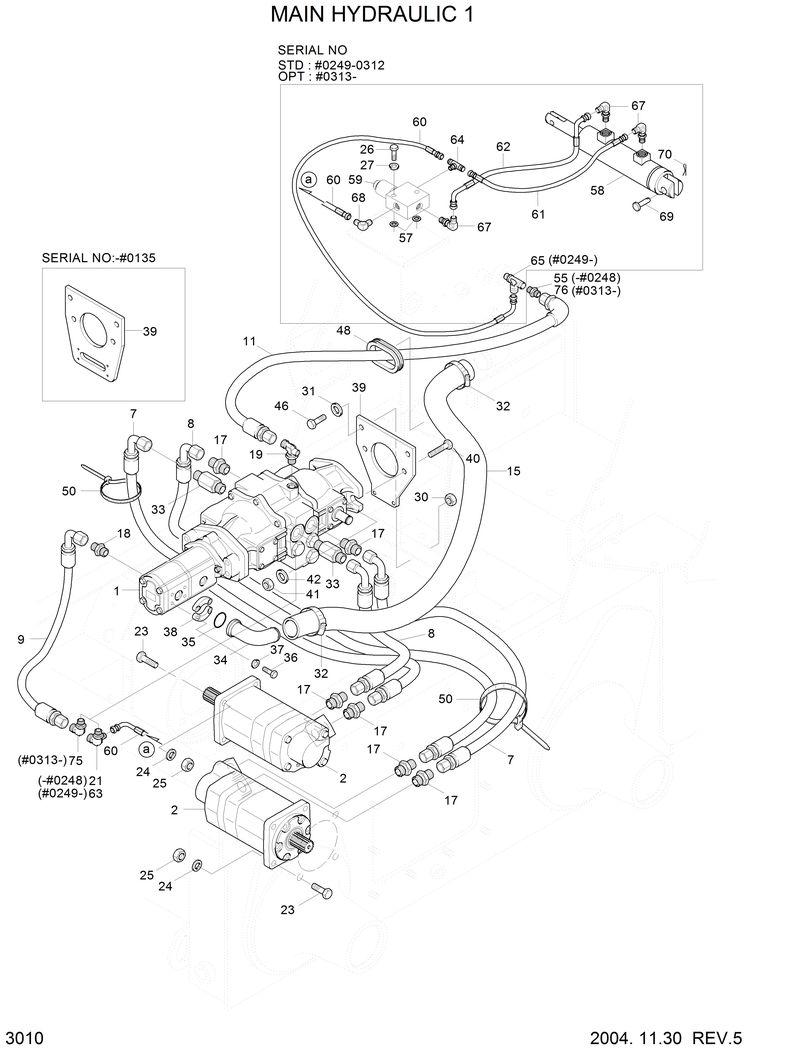

Запчасти Hyundai HSL610 MAIN HYDRAULIC 1

31S7-00350

31S7-00350-Connector-Long

31S5-30250

31S5-30250-Tee

31S7-00370

31S7-00370-Connector-Long

31S5-30060

31S5-30060-Connector-Long

31S4-30190

31S4-30190-Tee

31S4-00100

31S4-00100-Elbow 90

32S4-30050

32S4-30050-Plate-Pump Mount

31S1-1044

31S1-1044-Connector

P933-123021

P933-123021-Hose Assy-Orfs 0x90

31S5-20031

31S5-20031-Hose Assy-3/4"Id

31S4-30190

31S4-30190-Tee

31S7-00640

31S7-00640-Tee

31S7-00550

31S7-00550-Hose Assy

31S7-00560

31S7-00560-Hose Assy

31S5-30250

31S5-30250-Tee

31S5-20011

31S5-20011-Hose Assy

1

31S4-00010

31S4-00010-Pump Assy-Main

11

31S4-20051

31S4-20051-Hose Assy-3/4"Id(0x90)

15

31S4-20101

31S4-20101-Hose-Suction

17

31S4-30160

31S4-30160-Connector

18

P010-810026

P010-810026-Connector

19

31S4-30040

31S4-30040-Elbow-90

2

31S4-00020

31S4-00020-Motor Assy-Travel

23

31S1-1088

31S1-1088-Bolt-Hex

24

25546R1

25546R1-Washer-Hardened

25

31S1-1089

31S1-1089-Lock Nut

26

S015-080602

S015-080602-Bolt-Hex

27

S411-080002

S411-080002-Washer-Spring

30

S275-100002

S275-100002-Nut-Self Locking

31

S403-101002

S403-101002-Washer-Plain

32

S520-055000

S520-055000-Clamp-Hose

33

31S4-30110

31S4-30110-Connector-Long

34

31S4-30021

31S4-30021-Flange 90

35

S631-038001

S631-038001-O-Ring

36

31S4-30170

31S4-30170-Bolt-Socket

37

31S4-30090

31S4-30090-Washer-Spring

38

P173-200106

P173-200106-Flange-Hyd,Split

39

31S4-30050

31S4-30050-Plate-Pump Mount

40

S017-120452

S017-120452-Bolt-Hex

41

S275-120002

S275-120002-Nut-Self Locking

42

S403-121002

S403-121002-Washer-Plain

46

S017-100352

S017-100352-Bolt-Hex

48

S760-030808

S760-030808-Grommet

50

S552-050203

S552-050203-Clamp-Band

57

S403-081002

S403-081002-Washer-Plain

58

31S5-00101

31S5-00101-Cylinder Ass'Y

59

31S5-00240

31S5-00240-Solenoid Valve

60

31S4-20190

31S4-20190-Hose Assy-3/8"Id(0x90)

61

31S5-20250

31S5-20250-Hose Assy

62

31S5-20270

31S5-20270-Hose Assy

64

31S5-30240

31S5-30240-Tee

67

P020-810002

P020-810002-Elbow-90

68

P030-810002

P030-810002-Elbow-45

69

S491-160502

S491-160502-Pin-Clevis

7

31S4-20010

31S4-20010-Hose Assy-1"Id

70

S501-160002

S501-160002-Pin-Self Locking

75

P020-810004

P020-810004-Elbow-90

75

P020-810004

P020-810004-Elbow-90

76

P010-810005

P010-810005-Connector

76

P010-810005

P010-810005-Connector

8

31S4-20020

31S4-20020-Hose Assy-1"Id

9

31S4-20030

31S4-20030-Hose Assy-5/8"Id
