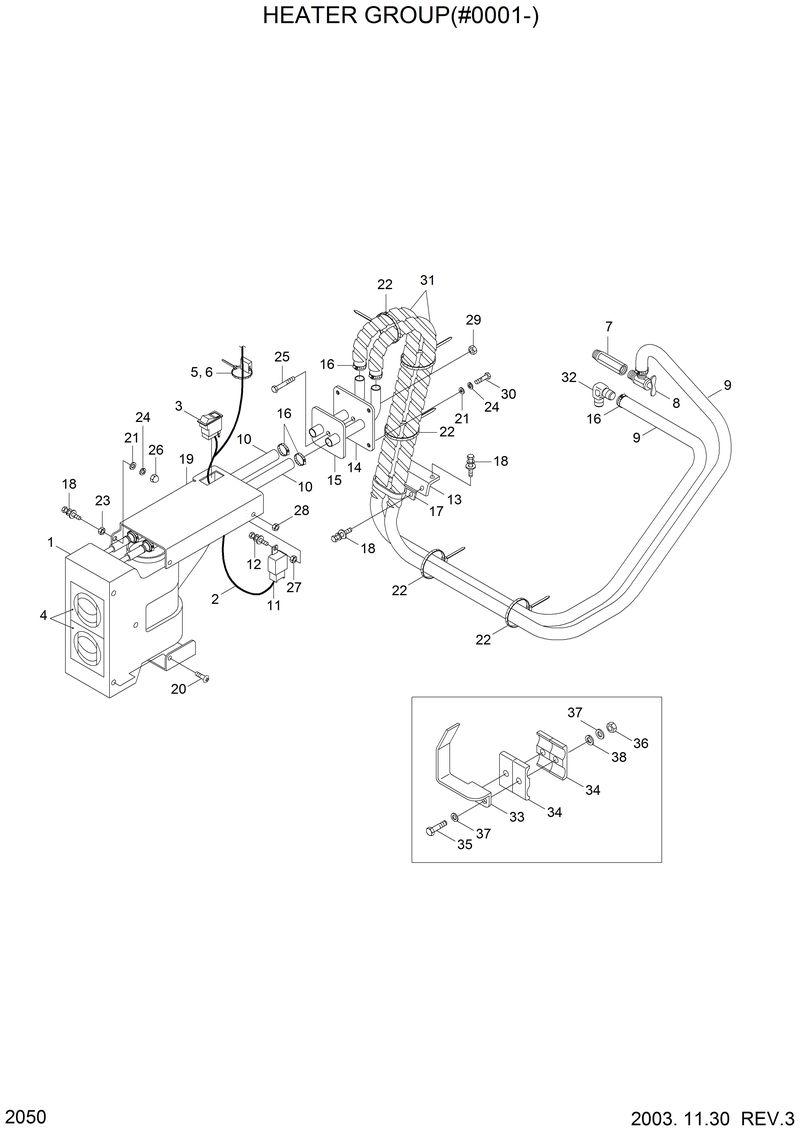

Запчасти Hyundai HSL610 HEATER GROUP(#0001-)

71S4-60310

71S4-60310-Elbow

71S4-60300

71S4-60300-Connector

71S4-60101

71S4-60101-Bracket-Heater

1

21S4-09050

21S4-09050-Heater Unit

10

71S4-60040

71S4-60040-Hose-Heater

11

21E3-0011

21E3-0011-Relay

12

S035-062022

S035-062022-Bolt-W/Washer

13

71S4-60080

71S4-60080-Plate

14

71S4-60090

71S4-60090-Bracket-Hose

15

71S4-60150

71S4-60150-Plate

16

S520-027000

S520-027000-Clamp-Hose,Screw Type

17

31F7-70330

31F7-70330-Clamp

18

S035-082522

S035-082522-Bolt-W/Washer

19

71S4-60100

71S4-60100-Bracket-Heater

2

21S4-09031

21S4-09031-Harness-Heater

20

S151-060202

S151-060202-Screw-Tapping

21

S403-082002

S403-082002-Washer-Plain

22

S551-050203

S551-050203-Clamp-Band

23

S205-081002

S205-081002-Nut-Hex

24

S411-080002

S411-080002-Washer-Spring

25

S015-080702

S015-080702-Bolt-Hex

26

S295-080002

S295-080002-Cap Nut-Domed

27

S205-061002

S205-061002-Nut-Hex

28

S275-060002

S275-060002-Nut-Self Locking

29

S275-080002

S275-080002-Nut-Self Locking

3

21S4-09040

21S4-09040-Switch-Heater

30

905825100

905825100-Bolt-Special

31

P753-160020

P753-160020-Protect Cover-Hose

32

21M6-56050

21M6-56050-Elbow

33

71S4-60270

71S4-60270-Guide-Hose

34

31S4-10881

31S4-10881-Clamp-Tube

35

S017-100452

S017-100452-Bolt-Hex

36

S275-100002

S275-100002-Nut-Self Locking

37

S403-102002

S403-102002-Washer-Plain

38

S411-100002

S411-100002-Washer-Spring

4

21S4-09070

21S4-09070-Louver-Outlet

5

21E9-06230

21E9-06230-Clamp-Quick

6

S551-035146

S551-035146-Tie-Wire

7

71S4-60260

71S4-60260-Elbow

8

E127-3136

E127-3136-Valve-Cut Off

9

71S4-60130

71S4-60130-Hose-Heater
