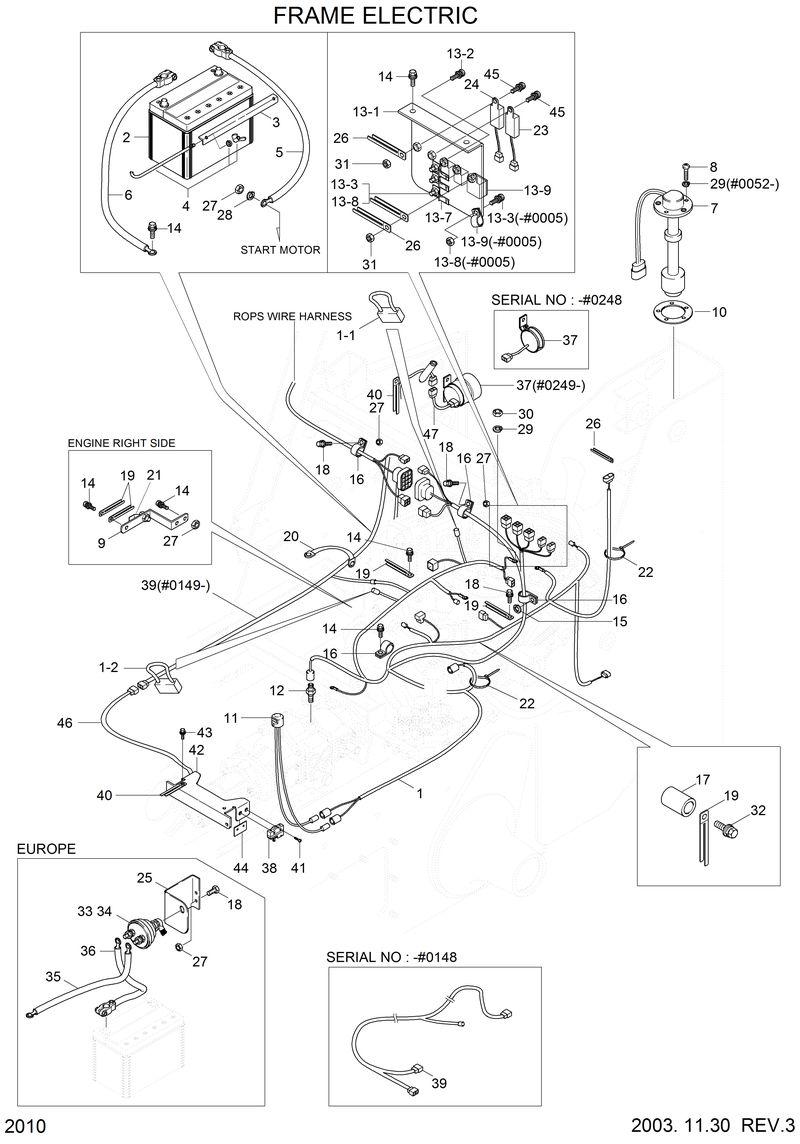

Запчасти Hyundai HSL610 FRAME ELECTRIC

S033-081526

S033-081526-. Bolt-W/Washer Hex

22S4-02150

22S4-02150-. Decal-Stop Sol.Relay

S033-081526

S033-081526-. Bolt-W/Washer Hex

S161-050152

S161-050152-Screw-Rd Hd

S205-081002

S205-081002-. Nut-Hex

S205-081002

S205-081002-. Nut-Hex

S033-082026

S033-082026-Bolt-W/Washer Hex

S411-050002

S411-050002-Washer-Spring

S411-050002

S411-050002-Washer-Spring

21E3-2003

21E3-2003-Buzzer-Back Up

22S4-02191

22S4-02191-Harness-Back Buzzer

22S4-02202

22S4-02202-Bkacket-Back Up S/W

21S4-02021

21S4-02021-Frame Wire Harness

1

21S4-02020

21S4-02020-Frame Wire Harness

1-1

S849-180000

S849-180000-. Fusible Link

1-2

S849-110000

S849-110000-. Fusible Link

10

E128-1053

E128-1053-Gasket

11

21S4-01030

21S4-01030-Horn Switch Assy

12

21S1-2106

21S1-2106-Temp Sw-Hyd Oil

13

21S4-01131

21S4-01131-Relay Board Assy

13-1

21S4-01140

21S4-01140-. Plate-Relay Board

13-2

S132-062546

S132-062546-. Screw-W/Washer C/Rd

13-4

21E3-0004

21E3-0004-. Relay-Start

13-5

21E3-0011

21E3-0011-. Relay

13-6

08053-01512

08053-01512-. Clip

13-7

21E7-0606

21E7-0606-. Plate-Connector

13-9

S543-200002

S543-200002-. Clamp-Tube

14

S035-102026

S035-102026-Bolt-W/Washer Hex

15

S033-061526

S033-061526-Bolt-W/Washer Hex

16

S543-200002

S543-200002-Clamp-Tube

17

22S4-02110

22S4-02110-Spacer

19

S593-000902

S593-000902-Clip-Harness

2

21S4-01080

21S4-01080-Battey Assy

20

21M5-51200

21M5-51200-Strap-Earth

21

08053-01512

08053-01512-Clip

22

S552-035146

S552-035146-Clamp-Band

23

21S4-01200

21S4-01200-Timer-Stop Solenoid

24

21S4-01190

21S4-01190-Timer-Air Heater

25

21S4-02130

21S4-02130-Bracket-Master Sw

27

S205-081002

S205-081002-Nut-Hex

28

S411-080002

S411-080002-Washer-Spring

3

21S4-01170

21S4-01170-Clamp-Battery

30

S201-051002

S201-051002-Nut-Hex

31

S541-120002

S541-120002-Clamp-Tube

32

S033-084016

S033-084016-Bolt-W/Washer Hex

33

21L7-10500

21L7-10500-Switch-Master

34

21EN-00420

21EN-00420-Decal-Master Sw

35

21S4-02110

21S4-02110-Cable(Batt-Master Sw)

36

21S4-02120

21S4-02120-Cable(Master Sw-Earth)

37

21FA-20570

21FA-20570-Buzzer-Back Up

38

21S4-01160

21S4-01160-Switch-Micro

39

22S4-02190

22S4-02190-Harness-Back Buzzer

4

21S4-01180

21S4-01180-Rod-Thread

4-1

21S4-01280

21S4-01280-. Thread

4-2

S261-060002

S261-060002-. Nut-Wing

4-3

S403-062002

S403-062002-. Washer-Plain

40

S593-000652

S593-000652-Clip-Harness

40

S593-000652

S593-000652-Clip-Harness

41

S131-043046

S131-043046-Screw-W/Washer C/Rd

42

22S4-02201

22S4-02201-Bracket-Back Up S/W

43

S033-081526

S033-081526-Bolt-W/Washer Hex

43

S033-081526

S033-081526-Bolt-W/Washer Hex

44

22S4-02210

22S4-02210-Plate

45

S132-062546

S132-062546-Screw-W/Washer C/Rd

46

224S-02220

224S-02220-W/Harness-Micro Sw

47

224S-02230

224S-02230-W/Harness-Extension

5

21S4-02050

21S4-02050-Cable(+)-Battery

6

21S4-02060

21S4-02060-Cable(-)-Battery

7

21S4-01020

21S4-01020-Fuel Sender Assy

8

S131-051546

S131-051546-Screw-W/Washer

9

21S4-01300

21S4-01300-Bkt Assy Eng Harness
