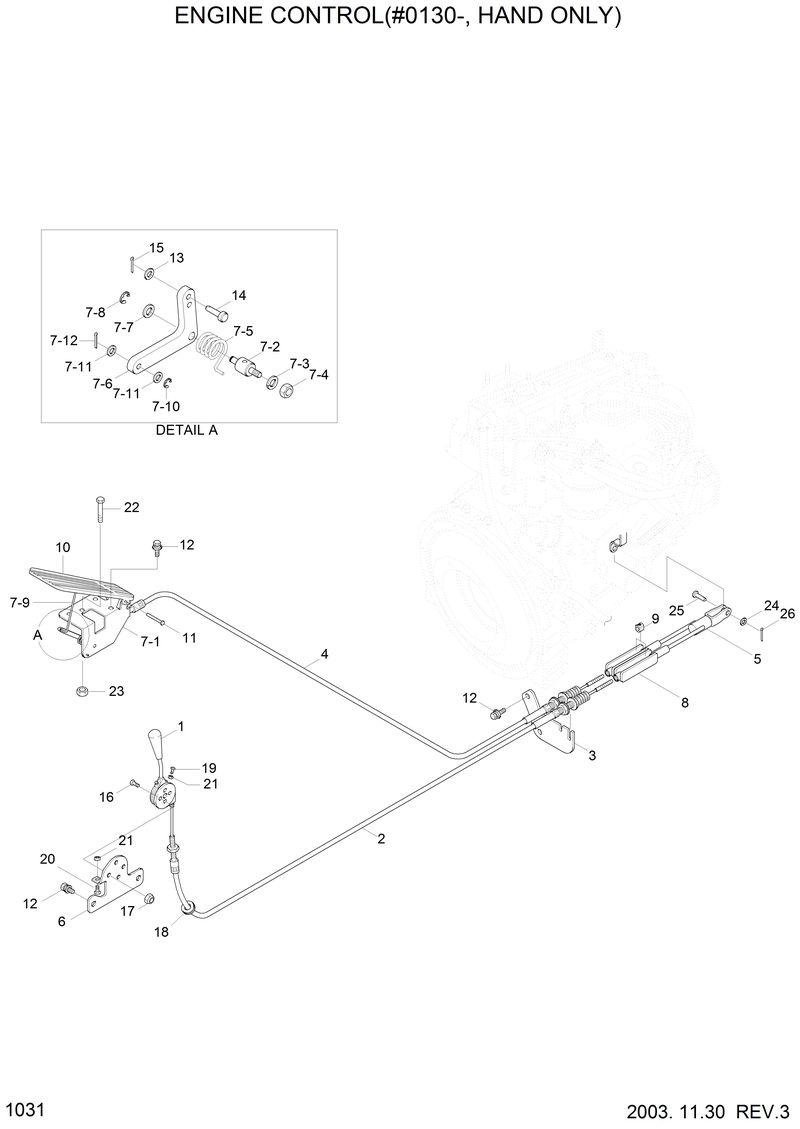

Запчасти Hyundai HSL610 ENGINE CONTROL(#0130-, HAND ONLY)

S275-080002

S275-080002-Nut-Self Locking

11N6-63041

11N6-63041-Lever-Emergency

S141-080202

S141-080202-Screw-Flat Hd

11S4-10071

11S4-10071-Cable-Throttle

S141-080202

S141-080202-Screw-Flat Hd

S275-080002

S275-080002-Nut-Self Locking

11S5-10041

11S5-10041-Bracket-Lever Mtg

1

11M6-53140

11M6-53140-Lever-Eng Control

1-12

S461-250202

S461-250202-. Pin-Split

10

11FA-10090

11FA-10090-Pedal

11

11FA-10100

11FA-10100-Pin

12

S037-102522

S037-102522-Bolt-W/Washer

13

S403-062002

S403-062002-Washer-Plain

14

S501-060002

S501-060002-Pin-Self Locking

15

S491-060202

S491-060202-Pin-Clevis

18

S681-100800

S681-100800-Grommet

19

S015-050152

S015-050152-Bolt-Hex

2

11S4-10070

11S4-10070-Cable-Throttle

20

S015-050202

S015-050202-Bolt-Hex

21

S205-051002

S205-051002-Nut-Hex

22

S015-080552

S015-080552-Bolt-Hex

23

S205-081002

S205-081002-Nut-Hex

24

S403-082002

S403-082002-Washer-Plain

25

S501-080002

S501-080002-Pin-Self Locking

26

S491-080202

S491-080202-Pin

3

11S4-10080

11S4-10080-Bracket-Cable

4

11S4-10090

11S4-10090-Cable-Accelerator

5

11S4-10100

11S4-10100-Clevis-Rod

6

11S5-10040

11S5-10040-Bracket-Lever Mtg

7

11S5-10051

11S5-10051-Accel Link Assy

7-1

11S5-10100

11S5-10100-. Support

7-10

KS-B-1337-D5

KS-B-1337-D5-. Retaining Ring(Type E)

7-11

S403-062002

S403-062002-. Washer-Plain

7-2

11FA-10030

11FA-10030-. Pin

7-3

S411-100002

S411-100002-. Washer-Spring

7-4

S205-101002

S205-101002-. Nut-Hex

7-5

11FA-10040

11FA-10040-. Spring-Torsion

7-6

11S5-10110

11S5-10110-. Bell Crank

7-7

S403-102002

S403-102002-. Washer-Plain

7-8

KS-B-1337-D9

KS-B-1337-D9-. Retaining Ring(Type E)

7-9

11S5-10121

11S5-10121-. Rod-Accel

8

11S5-10090

11S5-10090-Guide-Clevis,Rod

9

11S1-1011

11S1-1011-Collar Set
