Запчасти Hyundai HSL610 FUEL LINE

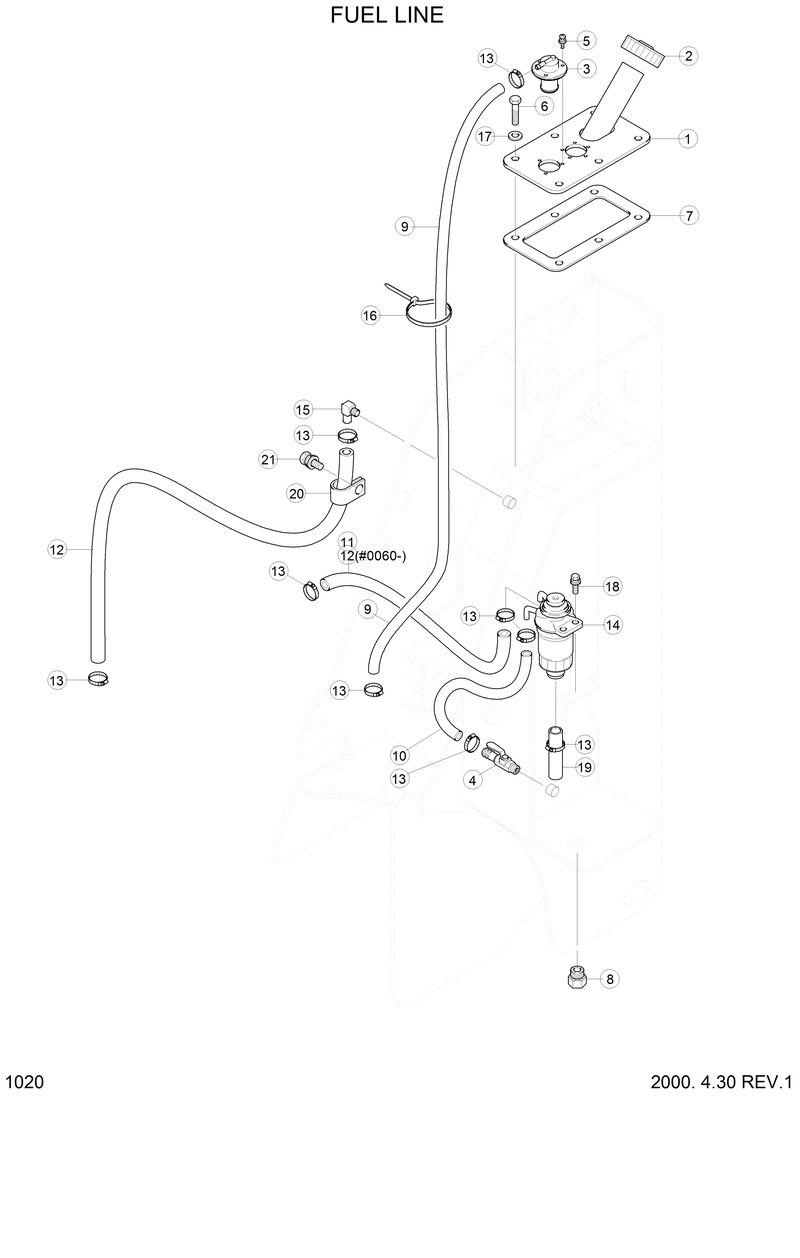

Схема запчастей Hyundai HSL610 - FUEL LINE

Артикул

Название

Примечание

Количество

11S4-00590

11S4-00590-Hose-Fuel

S543-140002

S543-140002-Clamp-Tube

12S4-00620

12S4-00620-Hose-Fuel

11S4-00590

11S4-00590-Hose-Fuel

1

11S4-00510

11S4-00510-Filler Neck Wa

10

11S4-00570

11S4-00570-Hose-Fuel

11

11S4-00580

11S4-00580-Hose-Fuel

13

S571-140002

S571-140002-Clamp-Hose,Wire Type

14

11M5-00130

11M5-00130-Fuel Filter Assy

14-1

11M5-01620

11M5-01620-. Element-Fuel Filter

15

81F8-40370

81F8-40370-Fitting

16

S552-050203

S552-050203-Clamp-Band

17

31FA-80120

31FA-80120-Washer

18

S033-082526

S033-082526-Bolt-W/Washer

19

11S4-00620

11S4-00620-Hose-Fuel

2

11S2-00180

11S2-00180-Cap-Filler

20

S543-240002

S543-240002-Clamp-Tube

21

S033-081526

S033-081526-Bolt-W/Washer

3

11FA-50300

11FA-50300-Fuel Cut Valve

4

11S1-0035

11S1-0035-Valve-Shut Off

5

S131-051546

S131-051546-Screw-W/Washer

6

S015-080202

S015-080202-Bolt-Hex

7

11S4-00550

11S4-00550-Gasket

8

11S4-00610

11S4-00610-Plug-Magnetic

9

11S4-00561

11S4-00561-Hose

Выбрано товаров: 25
