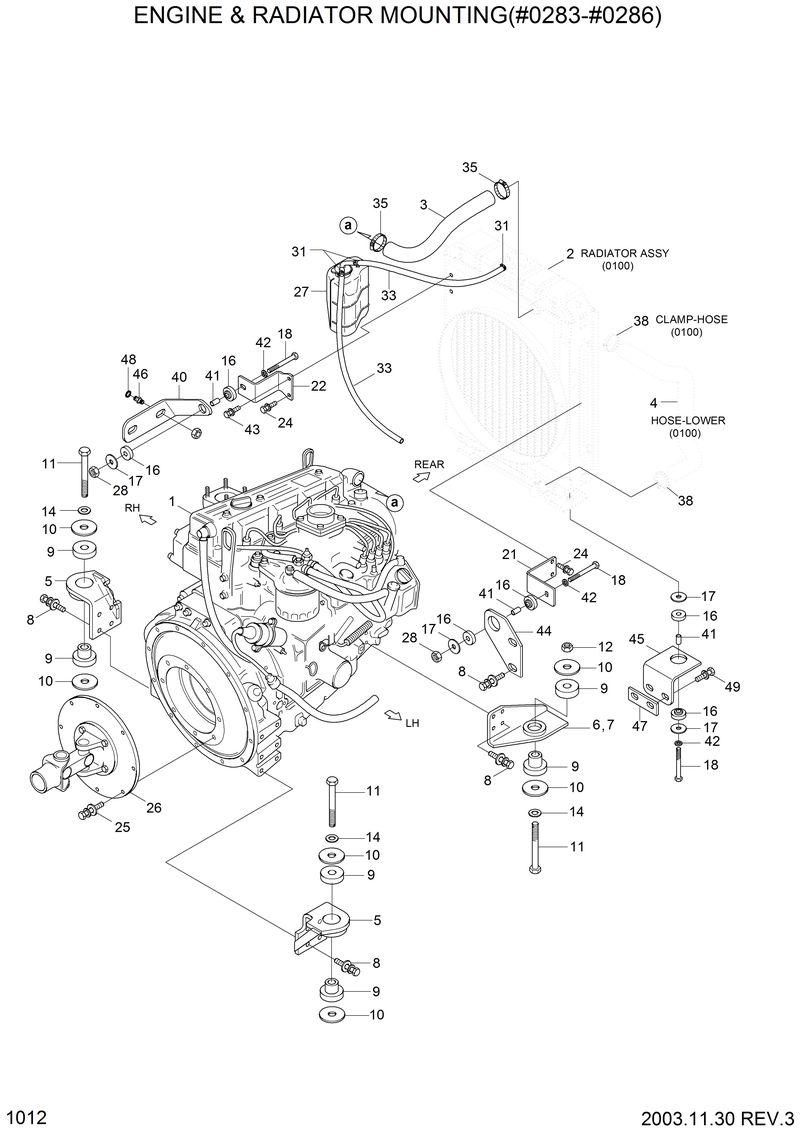

Запчасти Hyundai HSL610 ENGINE & RADIATOR MOUNTING(#0283-#0286)

*

@

@-Engine & Radiator

1

11S4-00010

11S4-00010-Engine Assy

10

12S4-00160

12S4-00160-Washer-Special

11

S017-161052

S017-161052-Bolt-Hex

12

S205-161002

S205-161002-Nut-Hex

14

S441-160002

S441-160002-Washer-Hardened

16

11L7-30042

11L7-30042-Rubber-Cushion

17

11S5-00150

11S5-00150-Washer-Rubber

18

S017-100552

S017-100552-Bolt-Hex

2

@

@-Radiator Assy

21

11S4-00680

11S4-00680-Bracket Wa

22

11S4-00700

11S4-00700-Bracket

24

S035-081522

S035-081522-Bolt-W/Washer

25

S035-082522

S035-082522-Bolt-W/Washer

26

11S4-00020

11S4-00020-Drive Shaft Assy

27

11M6-52330

11M6-52330-Reservoir Tank

28

S205-101002

S205-101002-Nut-Hex

3

11S4-30070

11S4-30070-Hose-Radiator

31

S571-140002

S571-140002-Clamp-Hose Wire Type

33

11S4-30120

11S4-30120-Hose-Over Flow

35

23010-038000

23010-038000-Clamp 38

38

@

@-Clamp-Hose

4

@

@-Hose-Lower

40

11S4-00710

11S4-00710-Bracket Wa

41

11S5-00131

11S5-00131-Collar

42

S441-100002

S441-100002-Washer-Hardened

43

S035-062022

S035-062022-Bolt-W/Washer

44

11S4-00690

11S4-00690-Bracket Wa

45

11S4-00720

11S4-00720-Bracket

46

11S4-00730

11S4-00730-Connector

47

11S4-00740

11S4-00740-Tap Block

48

S611-023001

S611-023001-O-Ring

49

S037-122552

S037-122552-Bolt-W/Washer

5

11S4-00040

11S4-00040-Bracket-Eng.Front

6

11S4-00630

11S4-00630-Bracket-Lh

7

11S4-00640

11S4-00640-Bracket-Rh

8

S035-103026

S035-103026-Bolt-W/Washer Hex

9

11S4-00030

11S4-00030-Rubber-Mount
