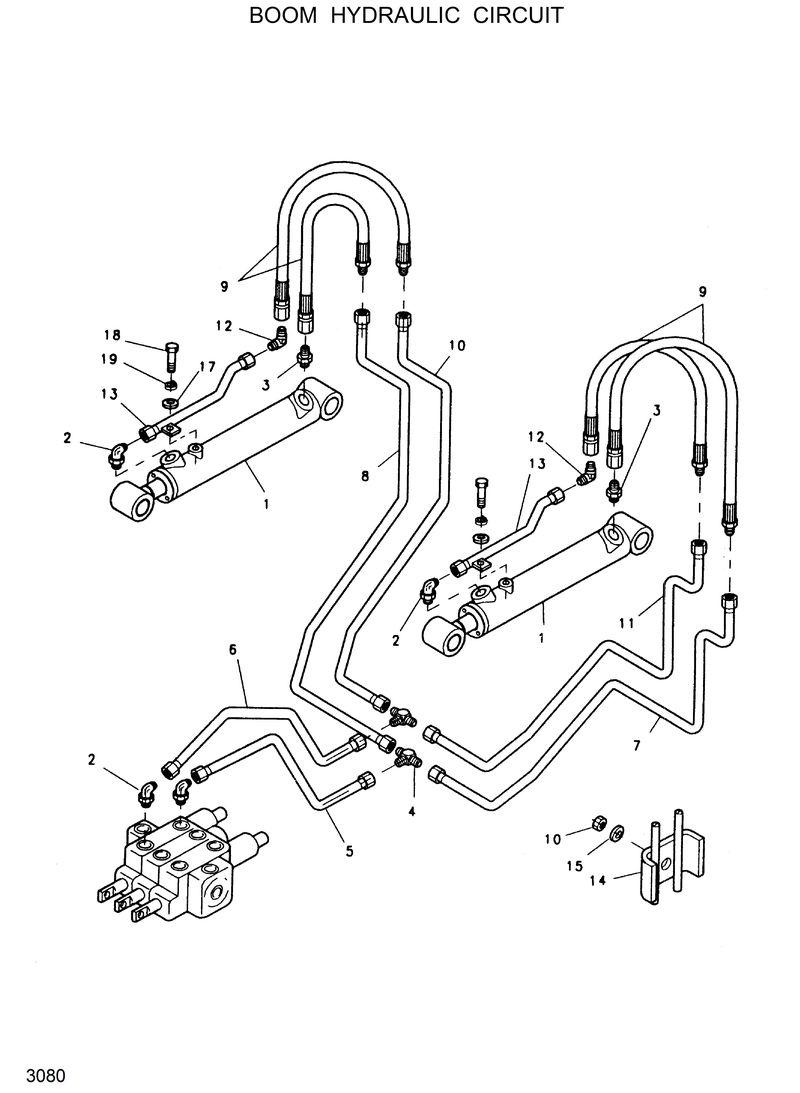

Запчасти Hyundai HSL600 BOOM HYDRAULIC CIRCUIT

1

31S1-1006

31S1-1006-Cylinder Ass'Y

10

31S1-1070

31S1-1070-Tube Assy

11

31S1-1071

31S1-1071-Tube Assy

12

31S1-1072

31S1-1072-Elbow 90deg

13

31S1-1073

31S1-1073-Tube Assy

14

31S1-1083

31S1-1083-Clamp-Tube

15

S403-101002

S403-101002-Washer-Plain

16

S205-101002

S205-101002-Nut-Hex

17

S403-081002

S403-081002-Washer-Plain

18

S015-080202

S015-080202-Bolt-Hex

19

S411-080002

S411-080002-Washer-Spring

2

31S1-1051

31S1-1051-Elbow 90deg

3

31S1-1053

31S1-1053-Connector

4

31S1-1062

31S1-1062-Tee

5

31S1-1065

31S1-1065-Tube Assy

6

31S1-1066

31S1-1066-Tube Assy

7

31S1-1067

31S1-1067-Tube Assy

8

31S1-1068

31S1-1068-Tube Assy

9

31S1-1069

31S1-1069-Hose Assy
