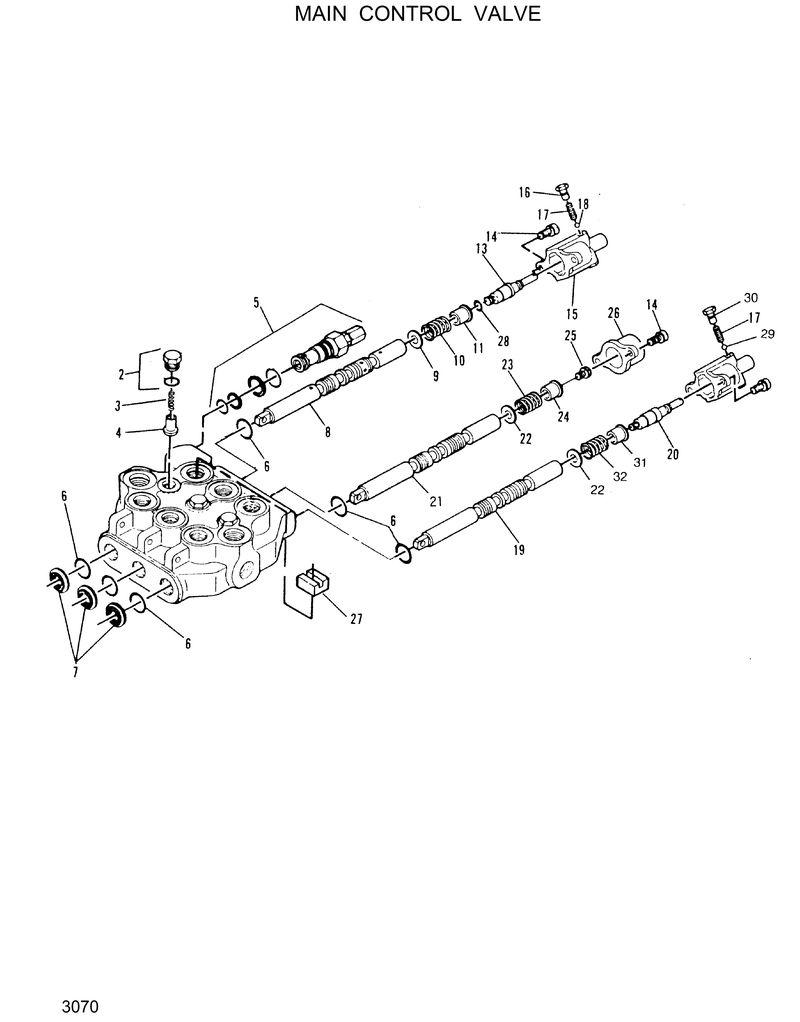

Запчасти Hyundai HSL600 MAIN CONTROL VALVE

1335-12

1335-12-Spool Aux./Tilt

1335-2

1335-2-Spool Boom

1

1632-1-3C

1632-1-3C-Control Valve Body

10

1335-8

1335-8-Spring Return

11

1335-4

1335-4-Spacer

13

1602-40

1602-40-Spool-Detent

14

30028-8208P

30028-8208P-Screw

16

1335-7

1335-7-Plug-Detent

17

1260-25

1260-25-Spring-Detent

18

30025-6

30025-6-Ball-Steel

19

1335-13

1335-13-Spool-Aux

2

1602-5A

1602-5A-Assy-Plug

20

1606-11

1606-11-Spool Detent

21

1602-38

1602-38-Spool Bucket

22

1225-6

1225-6-Return Washer

23

1225-18

1225-18-Spring Return

24

1225-4

1225-4-Spacer

25

30049-8308P

30049-8308P-Screw

26

1225-55

1225-55-End Cap

27

31S1-1004-1

31S1-1004-1-Restrictor Orifice

29

30025-8

30025-8-Ball,Steel

3

1325-84

1325-84-Spring

30

1260-32

1260-32-Plug,Detent

31

1225-47

1225-47-Spacer

32

1225-126

1225-126-Spring Return

4

1602-4

1602-4-Poppet-Load Check

6

10815-114

10815-114-O-Ring

8

1602-146

1602-146-Spool Boom

9

1335-3

1335-3-Washer

A

1325-464

1325-464-Kit Spring Center

B

1602-60

1602-60-Kit Detent Float

C

1602-12

1602-12-Kit Detent

D

1602-91

1602-91-Kit Load Check

E

30029-304

30029-304-Seal Kit(K)

K

8032053

8032053-Seal Kit

K

31S1-1004

31S1-1004-Control Valve Ass'Y

N15

1225-155

1225-155-Cap-Detent End

N28

10816-902

10816-902-O-Ring

N5

10782-2300

10782-2300-Valve Relief

N7

10628

10628-Wiper Rod
