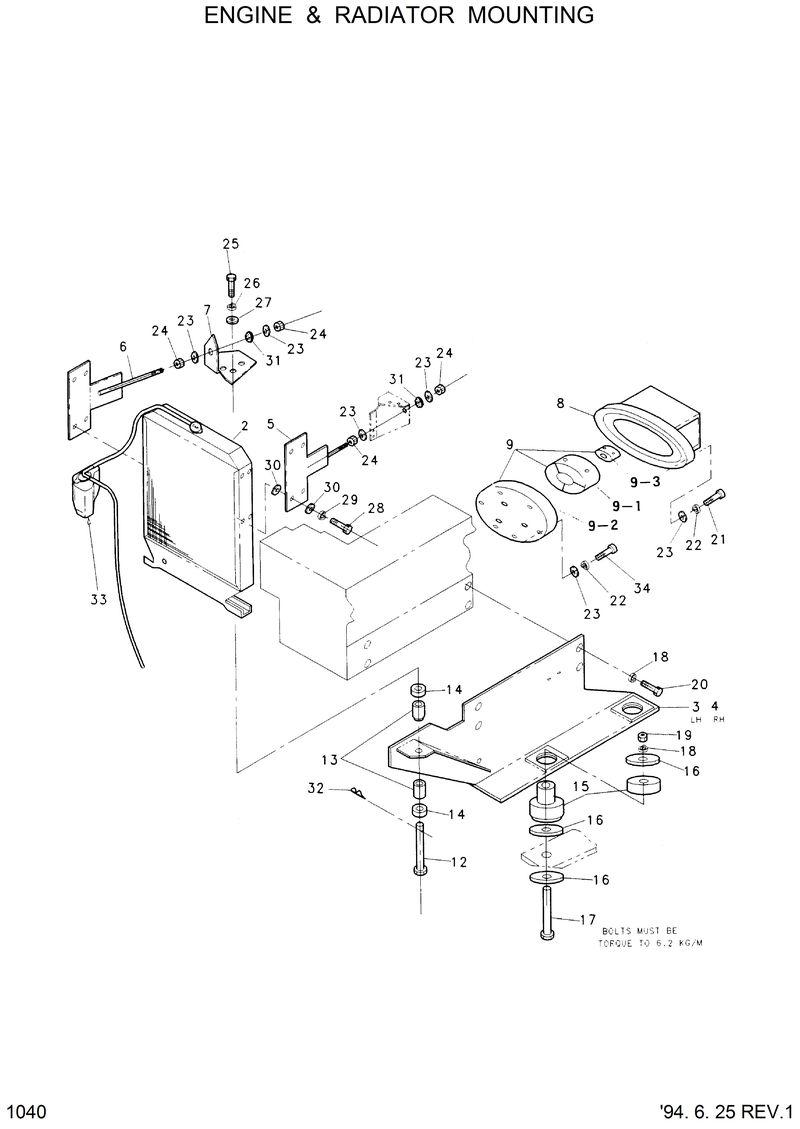

Запчасти Hyundai HSL600 ENG. & RADIATOR MOUNT.

12

11S1-3013

11S1-3013-Bolt-Hex

13

11S1-3014

11S1-3014-Rad Vib Mount

14

11S1-3015

11S1-3015-Special Washer

15

11S1-3016

11S1-3016-Rubber-Mount

16

11S1-3017

11S1-3017-Washer-Special

17

S017-121002

S017-121002-Bolt-Hex

18

S411-120002

S411-120002-Washer-Spring

19

S275-120002

S275-120002-Nut-Self Locking

2

11S1-3003

11S1-3003-Radiator Assy

20

S016-120302

S016-120302-Bolt-Hex

21

S018-100352

S018-100352-Bolt-Hex

22

S411-100002

S411-100002-Washer-Spring

23

S403-102002

S403-102002-Washer-Plain

24

S275-100002

S275-100002-Nut-Self Locking

25

S015-080202

S015-080202-Bolt-Hex

26

S411-080002

S411-080002-Washer-Spring

27

S403-082002

S403-082002-Washer-Plain

28

S015-060152

S015-060152-Bolt-Hex

29

S411-060002

S411-060002-Washer-Spring

3

11S1-3004

11S1-3004-Bracket Wa Lh

30

S403-062002

S403-062002-Washer-Plain

31

S681-100800

S681-100800-Grommet

32

S501-140005

S501-140005-Pin-Self Locking

34

11S1-3036

11S1-3036-Bolt-Hex

4

11S1-3005

11S1-3005-Bracket Wa Rh

5

11S1-3006

11S1-3006-Rod Radiator Mtg Rh

6

11S1-3007

11S1-3007-Rod Radiator Mtg Lh

7

11S1-3008

11S1-3008-Bracket

9

11S1-3037

11S1-3037-Coupling Assy

9-1

11S1-3010

11S1-3010-Coupling

9-2

11S1-3011

11S1-3011-Adapter

9-3

11S1-3012

11S1-3012-Boss Coupling

N1

11S1-3002

11S1-3002-Engine Kit

N33

J043026

J043026-Reservetank

N8

11S1-3009

11S1-3009-Pump Flange Wa
