Запчасти Hyundai R290LC3LL ELECTRIC PARTS 3(R290LC-3RB)

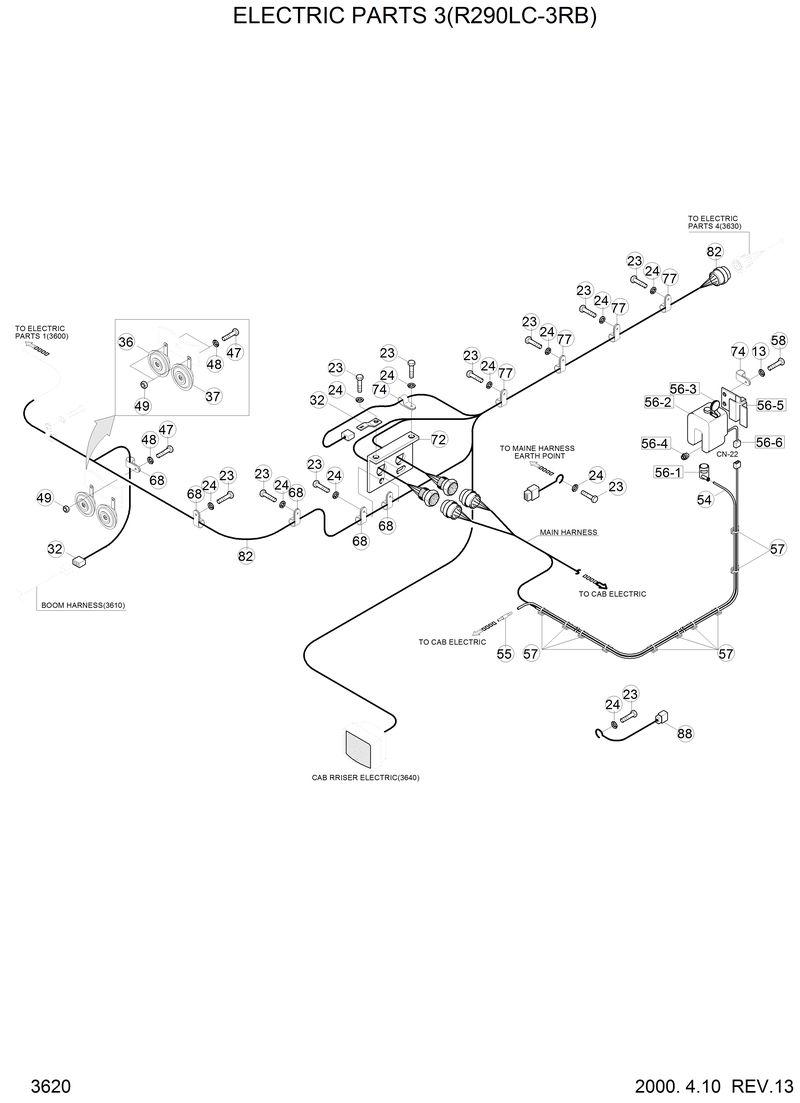

Схема запчастей Hyundai R290LC3LL - ELECTRIC PARTS 3(R290LC-3RB)

Артикул

Название

Примечание

Количество

21E9-10402

21E9-10402-Harness-Frame

13

S411-060002

S411-060002-Washer-Spring

23

S017-100152

S017-100152-Bolt-Hex

24

S411-100002

S411-100002-Washer-Spring

32

21E7-0612

21E7-0612-Plate-Connector

36

21EA-50470

21EA-50470-Horn-Low

37

21EA-50480

21EA-50480-Horn-High

47

S015-080152

S015-080152-Bolt-Hex

48

S411-080002

S411-080002-Washer-Spring

49

S205-081002

S205-081002-Nut-Hex

54

21EM-30580

21EM-30580-Hose-Rubber

55

21EM-30570

21EM-30570-Connector-Tube

56

21EN-00160

21EN-00160-Washer Tank Assy

56-1

21EG-10730

21EG-10730-. > 21eg-10130

56-2

21EL-00180

21EL-00180-. Tank

56-3

21EL-00190

21EL-00190-. Cap

56-4

21EL-00200

21EL-00200-. Push-Rubber

56-6

21EM-10730

21EM-10730-. Bracket

56-6

21EM-10730

21EM-10730-. Bracket

57

21EM-30630

21EM-30630-Clamp-Quick

58

S015-060152

S015-060152-Bolt-Hex

68

S543-180002

S543-180002-Clamp-Tube

72

21E9-06020

21E9-06020-Plate

74

S543-070002

S543-070002-Clamp-Tube

77

S543-280002

S543-280002-Clamp-Tube

82

21E9-10400

21E9-10400-Harness-Frame

88

24L1-30720

24L1-30720-Strap-Earth

Выбрано товаров: 27
