Запчасти Hyundai R290LC3LL CAB TILTING ELECTRIC(R290LC-3LL)

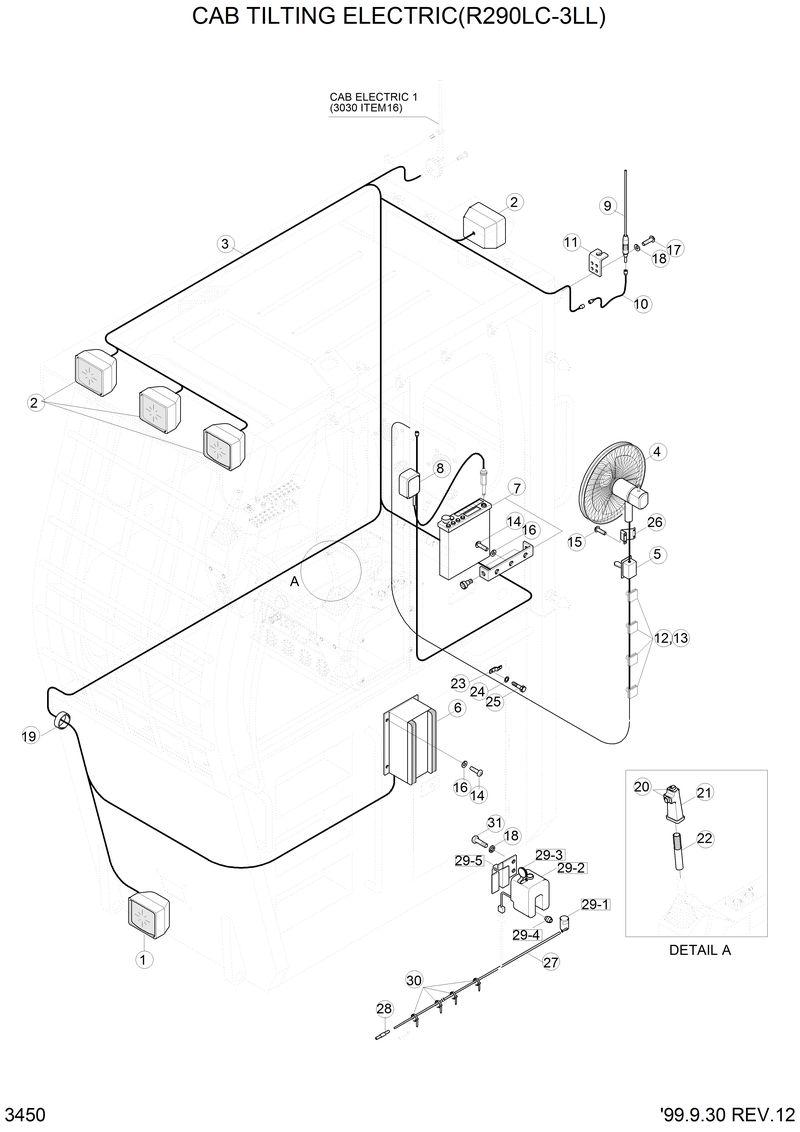

Схема запчастей Hyundai R290LC3LL - CAB TILTING ELECTRIC(R290LC-3LL)

Артикул

Название

Примечание

Количество

1

21EK-10360

21EK-10360-Head Lamp Assy

1-1

21EK-10240

21EK-10240-. Bulb

10

P90-0032

P90-0032-Cable Cb-Coax

11

P90-0035

P90-0035-Bracket-Antenna

12

E127-3133

E127-3133-Holder-Cable Tie

13

S551-035146

S551-035146-Tie-Wire

14

S151-050166

S151-050166-Screw

15

S161-050166

S161-050166-Screw

16

S411-050006

S411-050006-Washer-Spring

17

S161-060166

S161-060166-Screw

18

S411-060006

S411-060006-Washer-Spring

19

S681-230400

S681-230400-Grommet

2

21L1-2106

21L1-2106-Work Lamp Assy

20

P33-0016

P33-0016-Switch Group

21

P33-0021

P33-0021-Adapter

22

P33-0015

P33-0015-Rod-Control Handle

23

21E7-0606

21E7-0606-Plate-Connector

24

S411-100006

S411-100006-Washer-Spring

25

S017-100166

S017-100166-Bolt-Hex

26

22M3-9002

22M3-9002-Bracket-Fan

27

21EM-30580

21EM-30580-Hose-Rubber

28

21EM-30570

21EM-30570-Connector-Tube

29

21EN-00160

21EN-00160-Washer Tank Assy

29-1

21EG-10730

21EG-10730-. > 21eg-10130

29-2

21EL-00180

21EL-00180-. Tank

29-3

21EL-00190

21EL-00190-. Cap

29-4

21EL-00200

21EL-00200-. Push-Rubber

29-5

21EM-10730

21EM-10730-. Bracket

3

21FL-00030

21FL-00030-Harness-Cab Light

30

21EM-30630

21EM-30630-Clamp-Quick

31

S015-060166

S015-060166-Bolt-Hex

4

21D1-0017

21D1-0017-Fan Assy

5

21E9-2001

21E9-2001-Switch-Toggle

6

P90-0044

P90-0044-Convertor

7

P90-0030

P90-0030-Radio Cb

8

P90-0049

P90-0049-Speaker Cb

9

P90-0031

P90-0031-Antenna-Radio Cb

Выбрано товаров: 37
