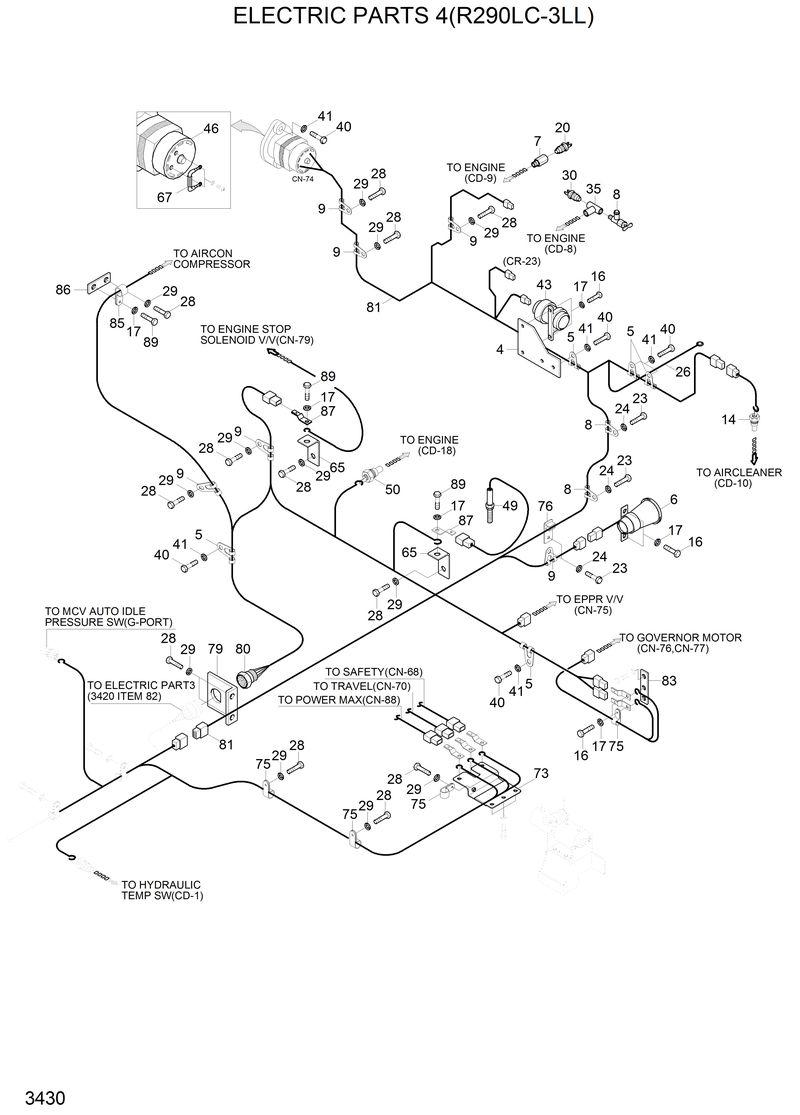

Запчасти Hyundai R290LC3LL ELECTRIC PARTS 4(R290LC-3LL)

21E6-40030

21E6-40030-Alternator Assy

11

P40-0023

P40-0023-Shut Off-Battery

12

RL200-1062

RL200-1062-Support

13

S411-080002

S411-080002-Washer-Spring

14

E123-0059

E123-0059-Switch-Air Cleaner

16

S015-060202

S015-060202-Bolt-Hex

17

S411-060002

S411-060002-Washer-Spring

20

21E3-5002

21E3-5002-Switch-Water Temp

26

21EH-30720

21EH-30720-Strap-Earth

28

S017-100152

S017-100152-Bolt-Hex

29

S411-100002

S411-100002-Washer-Spring

30

E123-4012

E123-4012-Sender-Temp

35

21E1-49910

21E1-49910-Adapter

36

21FL-01000

21FL-01000-Cable 1-Power Unit

37

21FL-01010

21FL-01010-Cable 2-Power Unit

38

21FL-01020

21FL-01020-Cable 3-Power Unit

4

E211-1105

E211-1105-Spacer

40

S017-120152

S017-120152-Bolt-Hex

41

S411-120002

S411-120002-Washer-Spring

43

E225-0004

E225-0004-Relay-Start

45

S015-080302

S015-080302-Bolt-Hex

46

21E6-40011

21E6-40011-Alternator Assy

49

21E3-0042

21E3-0042-Sensor-Speed

5

S593-000702

S593-000702-Clip-Harness

50

21E3-5001

21E3-5001-Sw-Eng Oil Press

51

S403-082002

S403-082002-Washer-Plain

6

21E4-2003

21E4-2003-Buzzer-Travel Alarm

65

21EA-50430

21EA-50430-Plate

67

21E1-21120

21E1-21120-Wire Link-Alternator

7

21E3-4051

21E3-4051-Adapter-Oil Temp

73

21E9-06260

21E9-06260-Plate

75

S543-120002

S543-120002-Clamp-Tube

76

21EN-10230

21EN-10230-Clip-Connector

79

21E9-06050

21E9-06050-Plate

8

14L1-01370

14L1-01370-Valve-Heater

80

21E9-10380

21E9-10380-Harness-Engine1

81

21E9-10390

21E9-10390-Harness-Engine2

83

21E9-06070

21E9-06070-Plate

85

S541-060002

S541-060002-Clamp-Tube Single

86

21EA-50380

21EA-50380-Plate

87

21E9-06080

21E9-06080-Plate

89

S015-06152

S015-06152-Bolt-Hex

9

S593-000902

S593-000902-Clip-Harness
