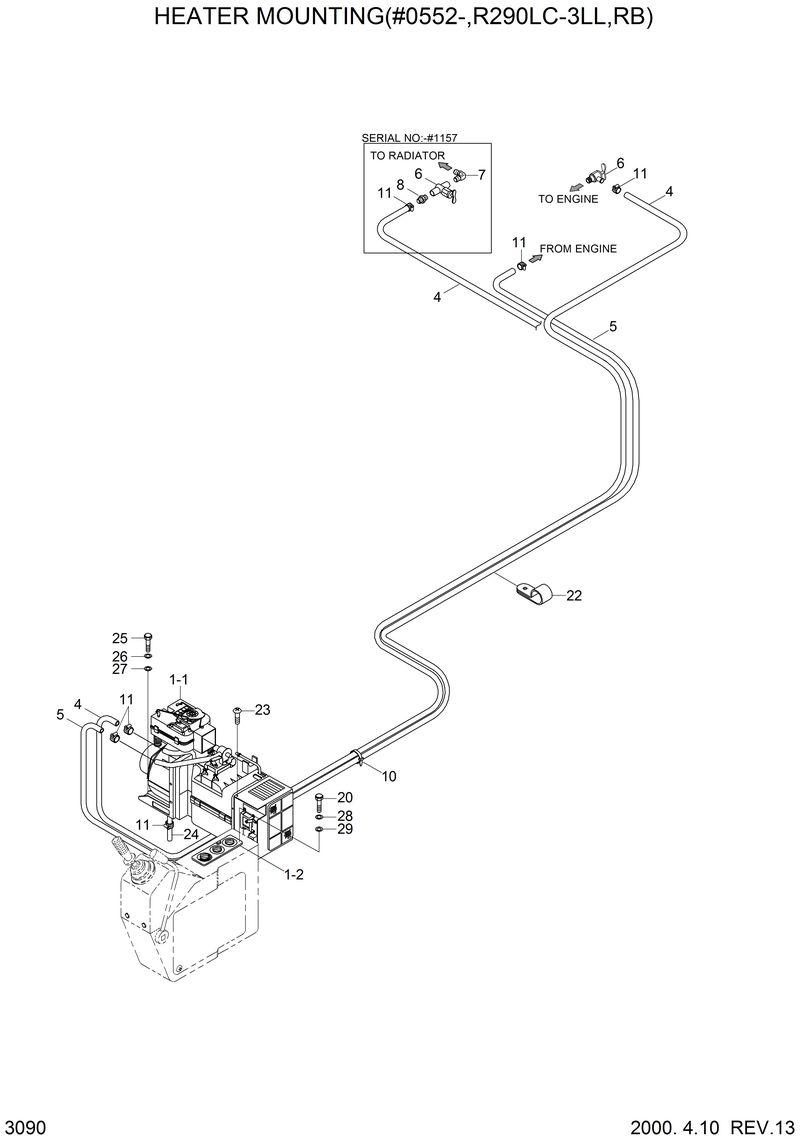

Запчасти Hyundai R290LC3LL HEATER MOUNTING(#0552-,R290LC-L)

21FL-40201

21FL-40201-Hose-Inlet

21FD-40201

21FD-40201-Hose-Inlet

21FD-40200

21FD-40200-Hose-Inlet

21FD-40210

21FD-40210-Hose-Outlet

14L1-01350

14L1-01350-Valve-Heater

1

11EM-90610

11EM-90610-Heater Assy

1-1

11EM-90320

11EM-90320-. Heater Unit

1-2

11EM-90030

11EM-90030-. Control Assy

1-21

AE60001100-2

AE60001100-2-.. Knob

10

S551-035146

S551-035146-Tie-Wire

11

S520-015000

S520-015000-Clamp-Hose

20

S015-050152

S015-050152-Bolt-Hex

22

S542-220002

S542-220002-Clamp-Tube

23

S152-040122

S152-040122-Screw-Tapping

24

11EK-92060

11EK-92060-Hose-Drain

25

S017-120302

S017-120302-Bolt-Hex

26

S411-120002

S411-120002-Washer-Spring

27

S403-122002

S403-122002-Washer-Plain

28

S411-050002

S411-050002-Washer-Spring

29

S401-051002

S401-051002-Washer-Plain

4

21FL-40200

21FL-40200-Hose-Inlet

5

21FL-40210

21FL-40210-Hose-Outlet

6

31E9-1082

31E9-1082-Valve-Stop

7

31E5-3054

31E5-3054-Elbow

8

11EK-92050

11EK-92050-Connector
