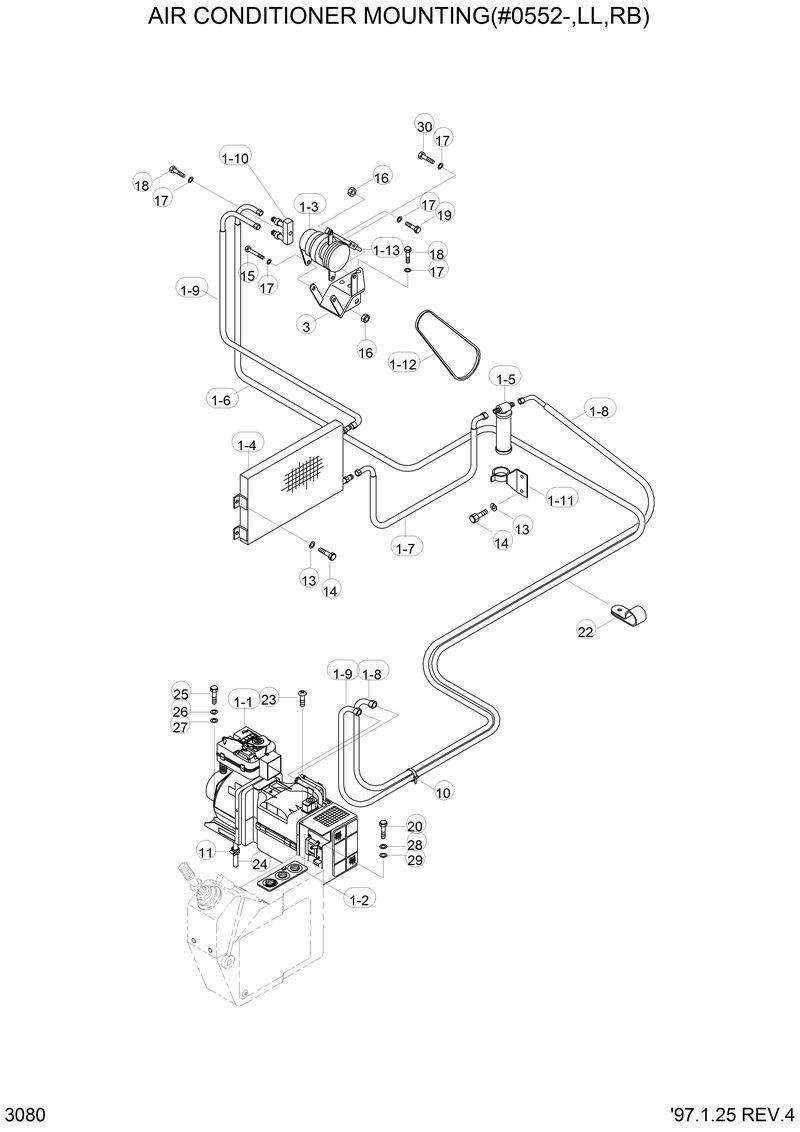

Запчасти Hyundai R290LC3LL AIR CONDITIONER MOUNTING(#0552L)

1

11E9-94110

11E9-94110-Aircon Assy

1-1

11EM-90160

11EM-90160-. Evaporator Unit

1-10

12E3-3509

12E3-3509-. Plate-Comp Joint

1-11

11E6-36100

11E6-36100-. Bracket-R/Drier

1-12

12E2-3505

12E2-3505-. V-Belt

1-13

14L1-01330

14L1-01330-. Piece-Tension

1-2

11EM-90170

11EM-90170-. Control Assy

1-21

AE60001100-2

AE60001100-2-.. Knob

1-3

11EM-90040

11EM-90040-. Compressor Assy

1-4

11EM-90050

11EM-90050-. Condenser Assy

1-5

11E6-36050

11E6-36050-. R/Drier Assy

1-6

11E9-90070

11E9-90070-. Hose Assy-Discharge

1-7

11EM-90060

11EM-90060-. Hose-Liquid(A)

1-8

11E9-90060

11E9-90060-. Hose-Liquid(B)

1-9

11E9-90080

11E9-90080-. Hose-Suction

10

S551-035146

S551-035146-Tie-Wire

11

S520-015000

S520-015000-Clamp-Hose

13

S411-080002

S411-080002-Washer-Spring

14

S015-080152

S015-080152-Bolt-Hex

15

S017-100352

S017-100352-Bolt-Hex

16

S205-101002

S205-101002-Nut-Hex

17

S411-100002

S411-100002-Washer-Spring

18

S017-100302

S017-100302-Bolt-Hex

19

S017-100502

S017-100502-Bolt-Hex

20

S015-050152

S015-050152-Bolt-Hex

22

S542-220002

S542-220002-Clamp-Tube

23

S152-040122

S152-040122-Screw-Tapping

24

11EK-92060

11EK-92060-Hose-Drain

25

S017-120302

S017-120302-Bolt-Hex

26

S411-120002

S411-120002-Washer-Spring

27

S403-122002

S403-122002-Washer-Plain

28

S411-050002

S411-050002-Washer-Spring

29

S401-051002

S401-051002-Washer-Plain

3

12E2-3504

12E2-3504-Bracket-Comp.Mtg

30

S017-100202

S017-100202-Bolt-Hex
