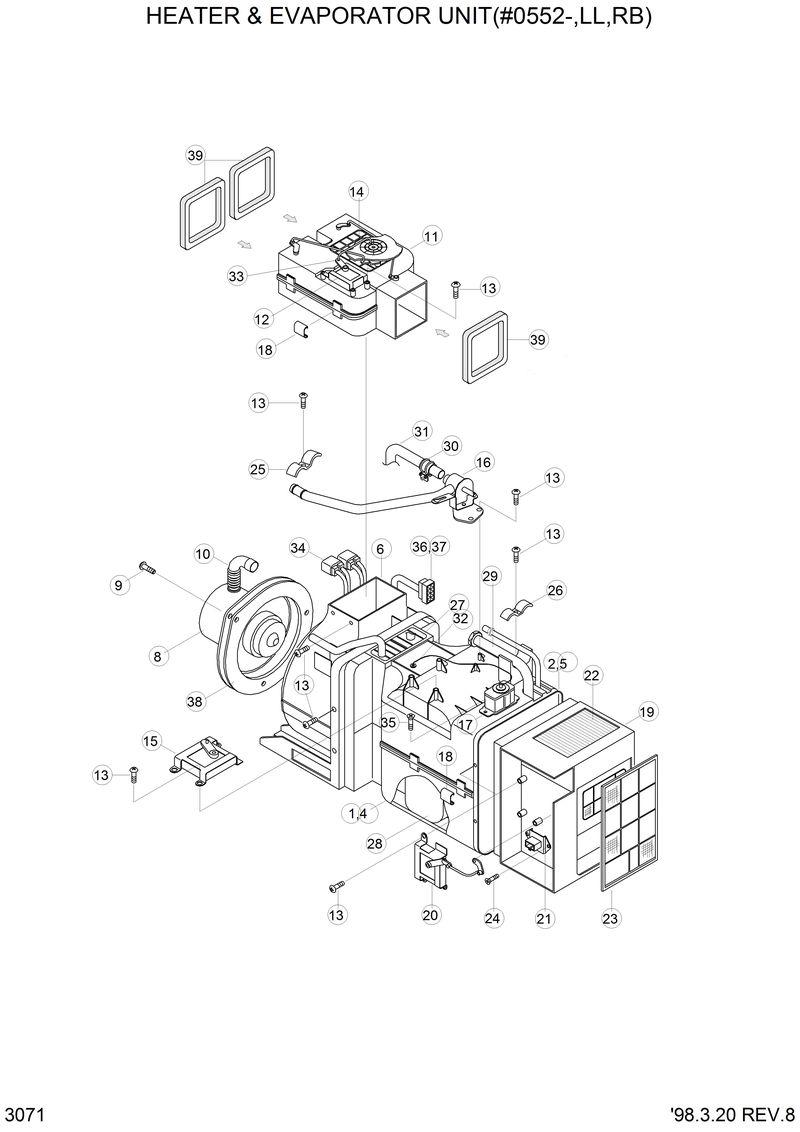

Запчасти Hyundai R290LC3LL HEATER & EVAPORATOR UNIT(#0552L)

AM86000601-2

AM86000601-2-.. Resistor Assy

*

11EM-90020

11EM-90020-. Heater & Evap Unit

1

AM12100400-0

AM12100400-0-.. Case-Low

10

3AH-0771

3AH-0771-.. Hose-Cooling

11

AM14000700-1

AM14000700-1-.. Damper Unit Assy

12

AM50200200-1

AM50200200-1-.. Motor Act-Mode

13

K500531

K500531-.. Screw

14

AM53300200-4

AM53300200-4-.. Rod-Cam

15

AM50300100-1

AM50300100-1-.. Temp D/Act Assy

16

AM30000600-2

AM30000600-2-.. Valve Assy

17

A110350101-3

A110350101-3-.. Thermostat

18

4AH-0688

4AH-0688-.. Clip-Case

19

AM13000200-2

AM13000200-2-.. Intake Unit Assy

2

AM11100400-0

AM11100400-0-.. Case-Upper

20

AM50400100-1

AM50400100-1-.. Intake D/Act Assy

21

AM86000602-2

AM86000602-2-.. Resistor Assy

22

AM88000200-2

AM88000200-2-.. Air Filter-Fresh

23

AM88000300-2

AM88000300-2-.. Air Filter-Refresh

24

K500533

K500533-.. Screw

26

AM81400200-3

AM81400200-3-.. Clamp-Evap Pipe

27

AM20002100-2

AM20002100-2-.. Heater Rad Set

28

A110055001-0

A110055001-0-.. Evap Core Assy

30

AM27000100-3

AM27000100-3-.. Clamp Assy-Hose

31

3AH-1007

3AH-1007-.. Hose-Water

32

A840003201-4

A840003201-4-.. Clip-Temp Sender

33

3AH-0705

3AH-0705-.. Clamp-Rod

34

A810001001-3

A810001001-3-.. Relay

35

K500523

K500523-.. Screw

36

AM83301502-2

AM83301502-2-.. Harness-Jump Wire

37

4AH-0643

4AH-0643-.. Holder-Wire

38

3AH-0774

3AH-0774-.. Packing-Motor

39

AM70003800-4

AM70003800-4-.. Sponge-Sealing

4

AM75000800-1

AM75000800-1-.. Insulation-Low

5

AM75000700-1

AM75000700-1-.. Insulation-Upper

6

AM13100100-0

AM13100100-0-.. Case-Blower

8

AM60001200-2

AM60001200-2-.. Fan & Motor Assy

8-1

AM61002000Z1

AM61002000Z1-... Motor

8-2

AM62000300Z2

AM62000300Z2-... Fan

9

4AH-0886

4AH-0886-.. Screw

N

@

@-Not Individually Supplied

N25

3AH-0772

3AH-0772-.. Clamp-H/Rad Pipe

N29

A113055401-2

A113055401-2-.. Pipe Assy-Outlet
