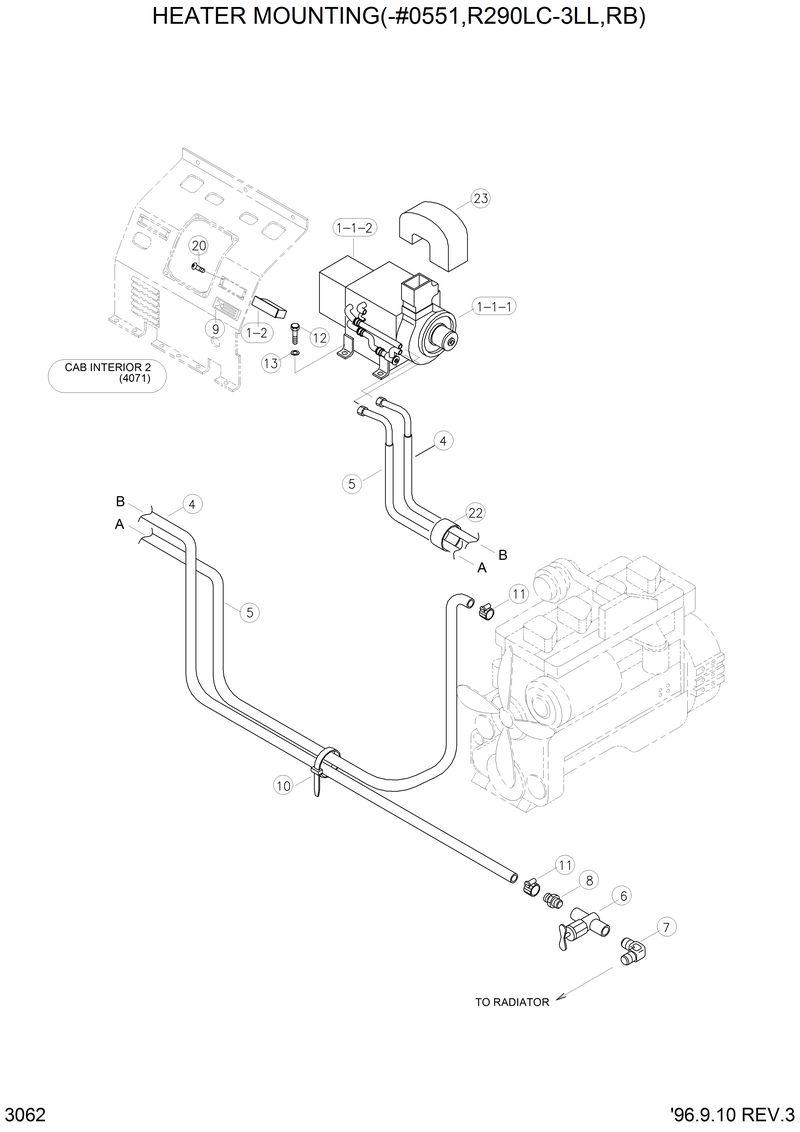

Запчасти Hyundai R290LC3LL HEATER MOUNTING(-#0551,R290LC-3LL,RB)

1-1

11E6-90320

11E6-90320-. Heater Unit Assy

1-1-1

11E6-90340

11E6-90340-.. Heater Unit

1-1-2

11E6-90021

11E6-90021-.. Aircon Duct Assy

1-2

11E6-90041

11E6-90041-. Control Assy

10

S551-035146

S551-035146-Tie-Wire

11

S520-027000

S520-027000-Clamp

12

S015-080202

S015-080202-Bolt-Hex

13

S411-080002

S411-080002-Washer-Spring

20

9327289-01

9327289-01-Bolt-Button Head

22

S542-220002

S542-220002-Clamp

23

71E6-25900

71E6-25900-Duct

4

21E4-4011

21E4-4011-Hose-Inlet

5

21E4-4012

21E4-4012-Hose-Outlet

6

31E9-0182

31E9-0182-Valve-Fuel Stop

7

31E5-3054

31E5-3054-Elbow

8

E131-1027

E131-1027-Connector

N1

11E6-90310

11E6-90310-Heater Assy

N9

11E6-90330

11E6-90330-Panel-Control
