Запчасти Hyundai R290LC3LL THUMB CYLINDER(R290LC-3RB)

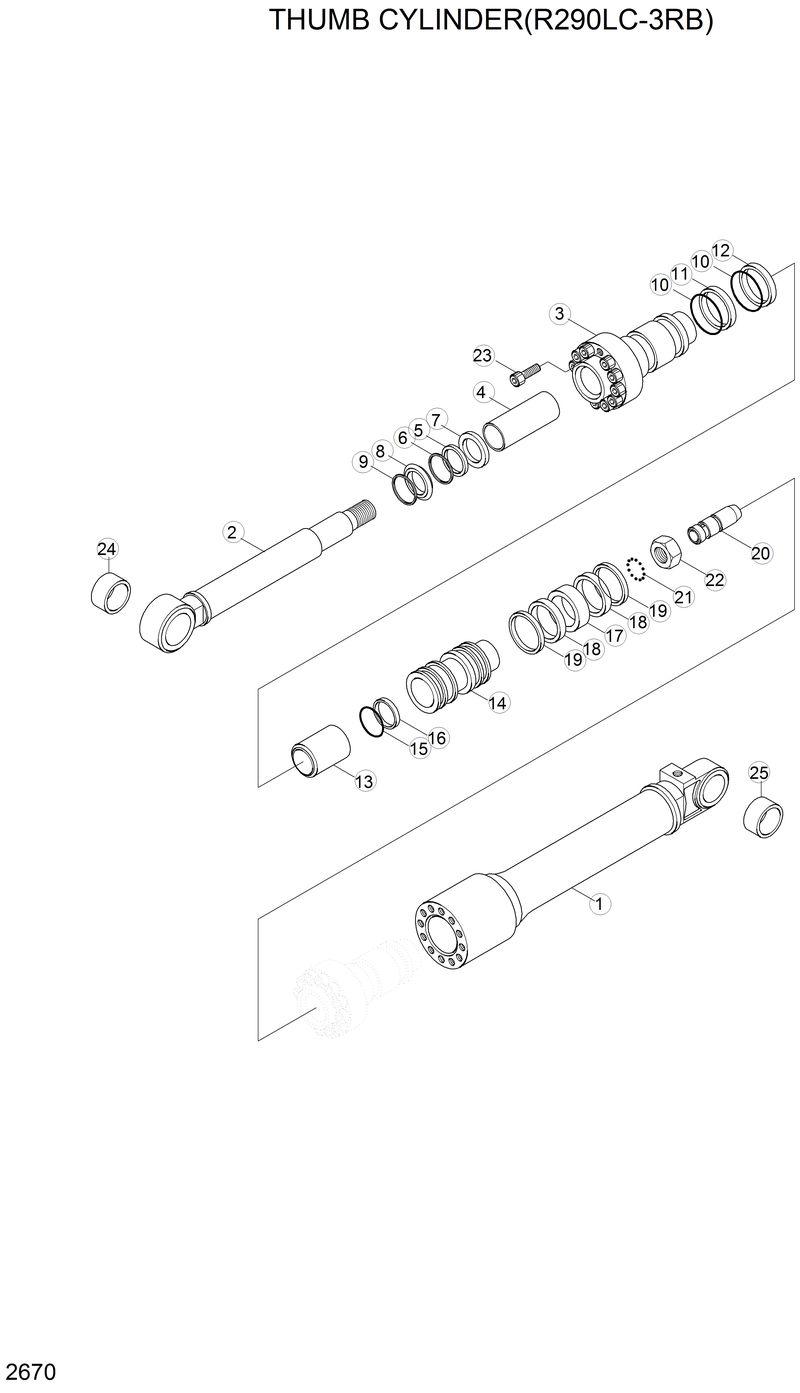

Схема запчастей Hyundai R290LC3LL - THUMB CYLINDER(R290LC-3RB)

Артикул

Название

Примечание

Количество

*

D10-0119

D10-0119-Thumb Cyl Assy

1

31Y6-00500

31Y6-00500-. Tube Assy

13

31YC-21060

31YC-21060-. Ring-Cushion

14

31Y1-04290

31Y1-04290-. Piston

2

31Y6-00550

31Y6-00550-. Rod Assy

20

31YC-29070

31YC-29070-. Spear-Cushion

21

Y890-015011

Y890-015011-. Ball-Steel

22

31YC-61060

31YC-61060-. Nut-Lock

23

S109-180604

S109-180604-. Bolt-Socket

24

31YC-11340

31YC-11340-. Bushing-Pin

25

31YC-11350

31YC-11350-. Bushing-Pin

3

31Y6-00580

31Y6-00580-. Gland

4

S732-085040

S732-085040-. Bushing

K

31Y6-00590

31Y6-00590-Seal-Kit

K10

S631-110004

S631-110004-. O-Ring

K11

S641-110002

S641-110002-. Ring-Back Up

K12

S641-110003

S641-110003-. Ring-Back Up

K15

S632-075004

S632-075004-. O-Ring

K16

S642-075003

S642-075003-. Ring-Back Up

K17

Y420-120000

Y420-120000-. Seal-Piston

K18

Y310-120200

Y310-120200-. Ring-Wear

K19

Y440-120000

Y440-120000-. Ring-Dust

K5

Y200-085011

Y200-085011-. Seal-Rod

K6

Y180-085020

Y180-085020-. Ring-Back Up

K7

Y240-085011

Y240-085011-. Ring-Buffer

K8

Y110-085011

Y110-085011-. Wiper-Dust

K9

Y190-099000

Y190-099000-. Ring-Snap

Выбрано товаров: 27
