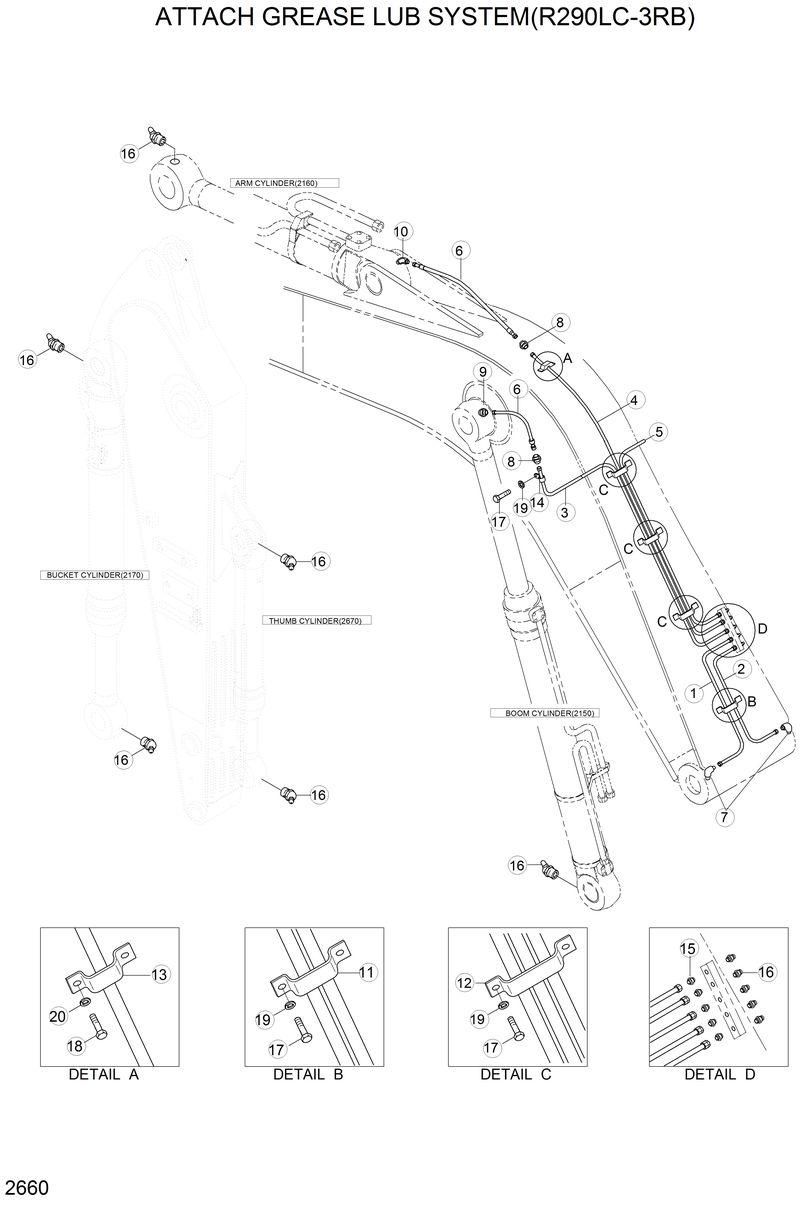

Запчасти Hyundai R290LC3LL ATTACH GREASE LUB SYSTEM(R290LC-3RB)

1

31E9-0072

31E9-0072-Pipe Assy-Grease

10

E231-0207

E231-0207-Elbow-45

11

31E9-0078

31E9-0078-Clamp-Pipe

12

31E9-0125

31E9-0125-Clamp-Pipe

13

31E9-0079

31E9-0079-Clamp-Pipe

14

S541-080002

S541-080002-Clamp-Tube

15

E131-0625

E131-0625-Connector

16

S651-810002

S651-810002-Nipple-Grease

17

S015-060202

S015-060202-Bolt-Hex

18

S017-100252

S017-100252-Bolt-Hex

19

S411-060002

S411-060002-Washer-Spring

2

31E9-0073

31E9-0073-Pipe Assy-Grease

20

S411-100002

S411-100002-Washer-Spring

3

31E9-0074

31E9-0074-Pipe Assy

4

31E9-0075

31E9-0075-Pipe Assy

5

31E9-0076

31E9-0076-Pipe Assy

6

P600-042011

P600-042011-Hose Assy

7

E231-0349

E231-0349-Elbow-90

8

E131-0626

E131-0626-Connector

9

P010-430011

P010-430011-Connector
