Запчасти Hyundai R290LC3LL BOOM HYD PIPING(R290LC-3RB)

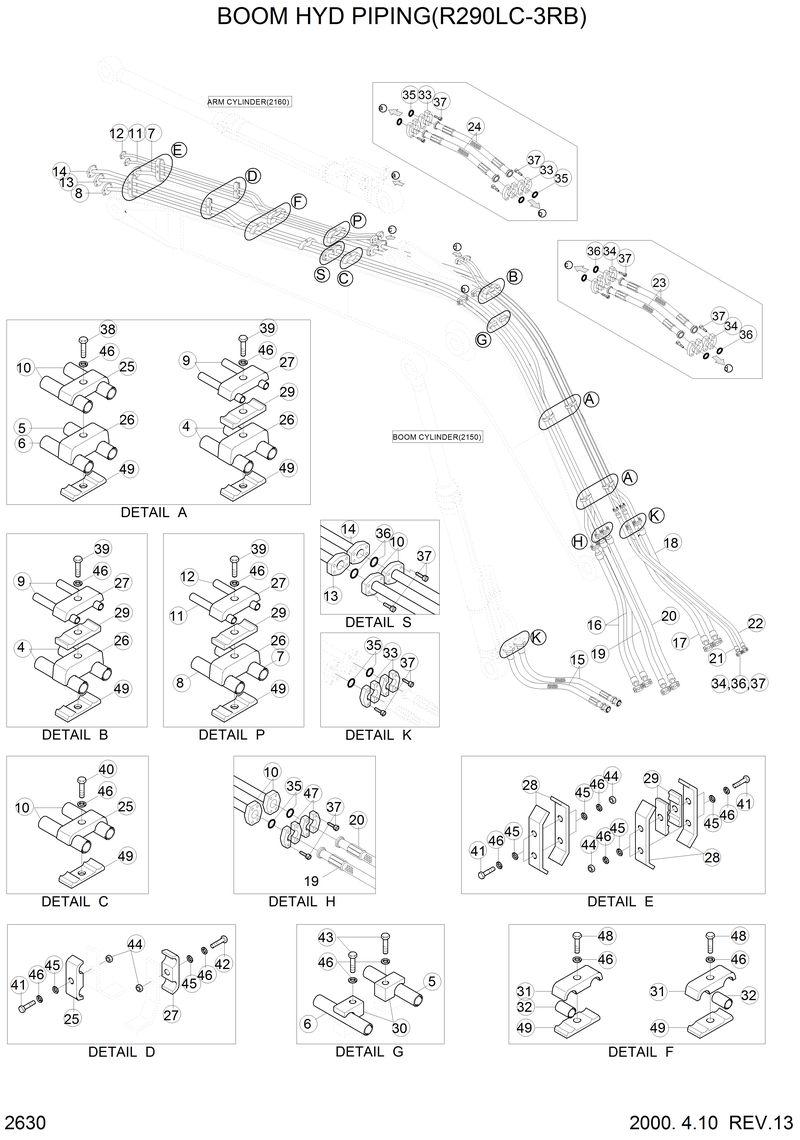

Схема запчастей Hyundai R290LC3LL - BOOM HYD PIPING(R290LC-3RB)

Артикул

Название

Примечание

Количество

P683-167317

P683-167317-Hose Assy-Flg,0x0

10

31FR-60020

31FR-60020-Pipe Assy

11

31FR-60031

31FR-60031-Pipe Assy

12

31FR-60041

31FR-60041-Pipe Assy

13

31FR-60051

31FR-60051-Pipe Assy

14

31FR-60061

31FR-60061-Pipe Assy

15

P681-167317

P681-167317-Hose Assy

16

P683-167330

P683-167330-Hose Assy

17

31FR-60071

31FR-60071-Hose Assy

18

31FR-60081

31FR-60081-Hose Assy

19

31FR-60091

31FR-60091-Hose Assy

20

31FR-60100

31FR-60100-Hose Assy

21

31FR-60110

31FR-60110-Hose Assy

22

31FR-60120

31FR-60120-Hose Assy

23

P683-127316

P683-127316-Hose Assy-Flg

24

P683-167322

P683-167322-Hose Assy

25

31FR-60130

31FR-60130-Clamp-Pipe

26

31FR-60140

31FR-60140-Clamp-Pipe

27

31FR-60150

31FR-60150-Clamp-Pipe

28

31FR-60161

31FR-60161-Clamp-Pipe

29

31FR-60170

31FR-60170-Clamp-Pipe

30

31E9-0114

31E9-0114-Clamp-Pipe

31

32E9-00870

32E9-00870-Clamp-Pipe

32

31E9-53220

31E9-53220-Spacer-Pipe

33

P173-160104

P173-160104-Flange-Split

34

P174-120103

P174-120103-Flange-Split

35

CO0423A

CO0423A-O-Ring

36

CO0418A

CO0418A-O-Ring

37

S107-100354

S107-100354-Bolt-Socket

38

S017-161252

S017-161252-Bolt-Hex

39

S017-161202

S017-161202-Bolt-Hex

4

31E9-0124

31E9-0124-Pipe Assy

40

S017-160752

S017-160752-Bolt-Hex

41

S017-160802

S017-160802-Bolt-Hex

42

S017-160502

S017-160502-Bolt-Hex

43

S017-160552

S017-160552-Bolt-Hex

44

S205-161002

S205-161002-Nut-Hex

45

S403-162002

S403-162002-Washer-Plain

46

S411-160002

S411-160002-Washer-Spring

47

P174-160105

P174-160105-Flange-Split

48

S017-160602

S017-160602-Bolt-Hex

49

31FR-60420

31FR-60420-Pa Saddle

5

31E9-50140

31E9-50140-Pipe Assy

6

31E9-50150

31E9-50150-Pipe Assy

7

31E9-0070

31E9-0070-Pipe Assy

8

31E9-0071

31E9-0071-Pipe Assy

9

31FR-60010

31FR-60010-Pipe Assy

Выбрано товаров: 47
