Запчасти Hyundai R290LC3LL PILOT HYD PIPING(CNTL4, W/O GRAPPLE, RB)

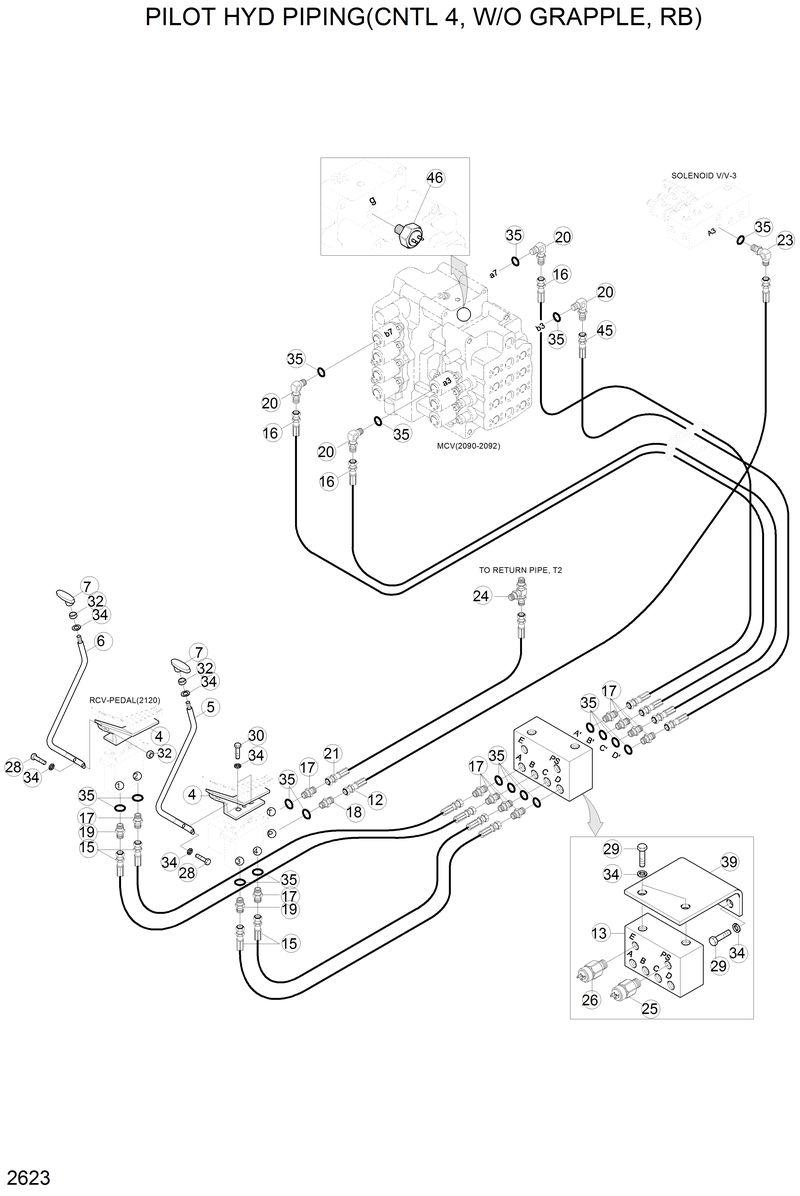

Схема запчастей Hyundai R290LC3LL - PILOT HYD PIPING(CNTL4, W/O GRAPPLE, RB)

Артикул

Название

Примечание

Количество

12

P600-042078

P600-042078-Hose Assy

13

31E9-22200

31E9-22200-Shuttle Valve

15

P600-042036

P600-042036-Hose Assy-Thd

16

P620-042050

P620-042050-Hose Assy

17

P010-110002

P010-110002-Connector

18

31EK-20100

31EK-20100-Filter-Last Guard

19

P010-110009

P010-110009-Connector

20

P020-110001

P020-110001-Elbow-90

21

P600-042084

P600-042084-Hose Assy

24

32E6-10460

32E6-10460-Tee-Swivel

25

31E5-40540

31E5-40540-Switch-Press,T/Alarm

26

31E5-40520

31E5-40520-Switch-Press,A/Idle

28

S017-100202

S017-100202-Bolt-Hex

29

S017-100252

S017-100252-Bolt-Hex

30

S017-100302

S017-100302-Bolt-Hex

32

S205-101002

S205-101002-Nut-Hex

34

S411-100002

S411-100002-Washer-Spring

35

S631-011001

S631-011001-O-Ring

39

31E9-10540

31E9-10540-Bracket-Shuttle Vlv

4

31EH-00550

31EH-00550-Plate-Pedal

45

P620-042042

P620-042042-Hose Assy

46

31E5-40560

31E5-40560-Switch-Press, A/Idle

5

31EH-00620

31EH-00620-Lever-Lh

6

31EH-00630

31EH-00630-Lever-Rh

7

E131-1019

E131-1019-Knob

Выбрано товаров: 25
