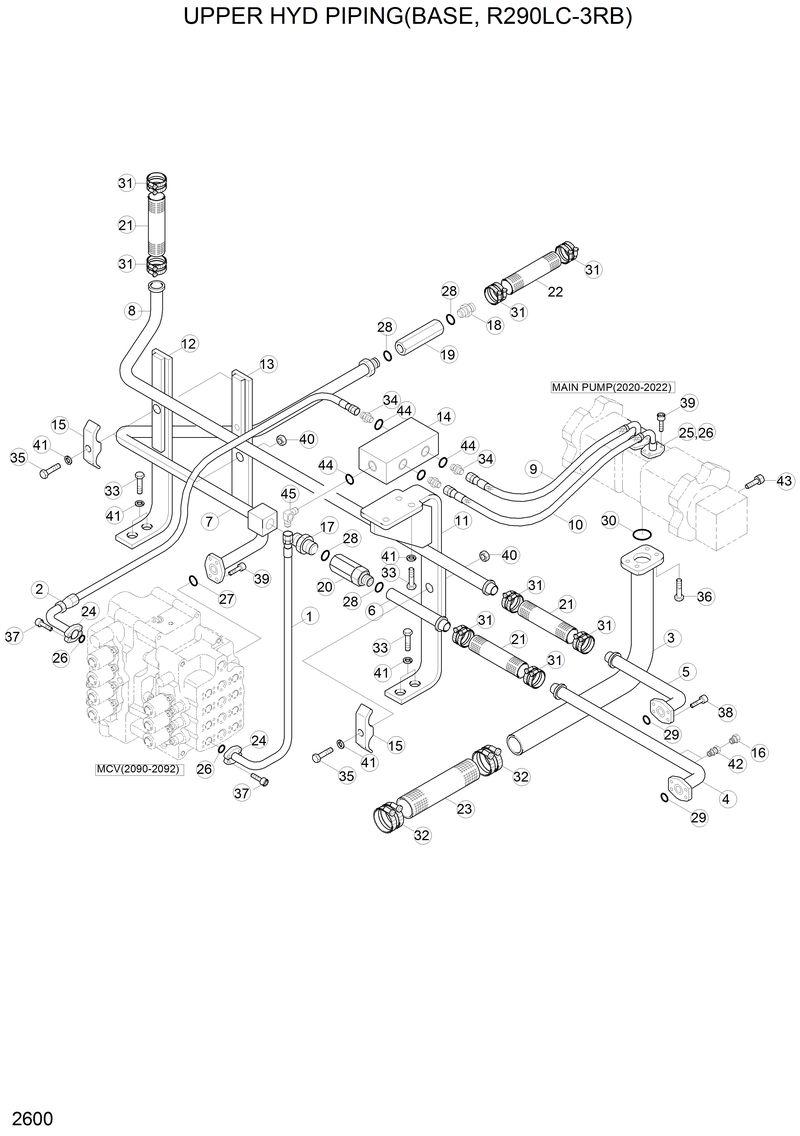

Запчасти Hyundai R290LC3LL UPPER HYD PIPING(BASE, R290LC-3RB)

1

P640-167310

P640-167310-Hose Assy

10

31E9-00870

31E9-00870-Hose Assy

11

31E9-11110

31E9-11110-Bracket

12

31E9-0034

31E9-0034-Bracket

13

31E9-11100

31E9-11100-Bracket

14

31E9-01560

31E9-01560-Block

15

31E5-3001

31E5-3001-Clamp-Pipe

16

9403371

9403371-Plug

17

31E4-3049

31E4-3049-Fitting

18

31E9-0147

31E9-0147-Fitting

19

31E9-0141

31E9-0141-Check Valve

2

P660-167317

P660-167317-Hose Assy

20

31E9-0142

31E9-0142-Check Valve

21

P760-071025

P760-071025-Hose-Rubber

22

P760-071030

P760-071030-Hose-Rubber

23

P760-102070

P760-102070-Hose-Rubber

24

P173-160104

P173-160104-Flange-Split

25

P174-160104

P174-160104-Flange-Split

26

CO0423A

CO0423A-O-Ring

27

CO0352A

CO0352A-O-Ring

28

S631-044001

S631-044001-O-Ring

29

S631-048001

S631-048001-O-Ring

3

31E9-11030

31E9-11030-Pipe Assy

30

S631-085001

S631-085001-O-Ring

31

S520-055000

S520-055000-Clamp-Hose

32

S520-085000

S520-085000-Clamp-Hose

33

S017-100252

S017-100252-Bolt-Hex

34

P010-110006

P010-110006-Connector

35

S017-100852

S017-100852-Bolt-Hex

36

S107-160404

S107-160404-Deleted...

37

S107-100254

S107-100254-Bolt-Socket

38

S107-120304

S107-120304-Bolt-Socket

39

S107-120354

S107-120354-Bolt-Socket

4

31FD-10010

31FD-10010-Pipe Assy

40

S207-101002

S207-101002-Nut-Hex

41

S411-100002

S411-100002-Washer-Spring

42

9402747

9402747-Connector

43

31EK-11130

31EK-11130-Coupling-Screw

44

CO0027B

CO0027B-O-Ring

45

P030-110005

P030-110005-Elbow-45

5

31E9-11050

31E9-11050-Pipe Assy

6

31E9-11060

31E9-11060-Pipe Assy

7

31E9-11070

31E9-11070-Pipe Assy

8

31E9-11080

31E9-11080-Pipe Assy

9

31E9-12050

31E9-12050-Hose Assy
